Quick Details
-
Model:
-
MT-200KN
-
Cutting force:
-
20Ton
-
Stroke:
-
5-75mm
-
Working Table:
-
500*1000mm
-
Upper Board:
-
355*550mm
-
Distance between upper and down board:
-
65-150mm
-
Power:
-
1.1KW
-
First refueling amount:
-
36L
-
Weight:
-
680KG
-
Size:
-
100*90*135CM
Quick Details
-
Weight (KG):
-
380
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MILES
-
Model:
-
MT-200KN
-
Cutting force:
-
20Ton
-
Stroke:
-
5-75mm
-
Working Table:
-
500*1000mm
-
Upper Board:
-
355*550mm
-
Distance between upper and down board:
-
65-150mm
-
Power:
-
1.1KW
-
First refueling amount:
-
36L
-
Weight:
-
680KG
-
Size:
-
100*90*135CM
Product Description

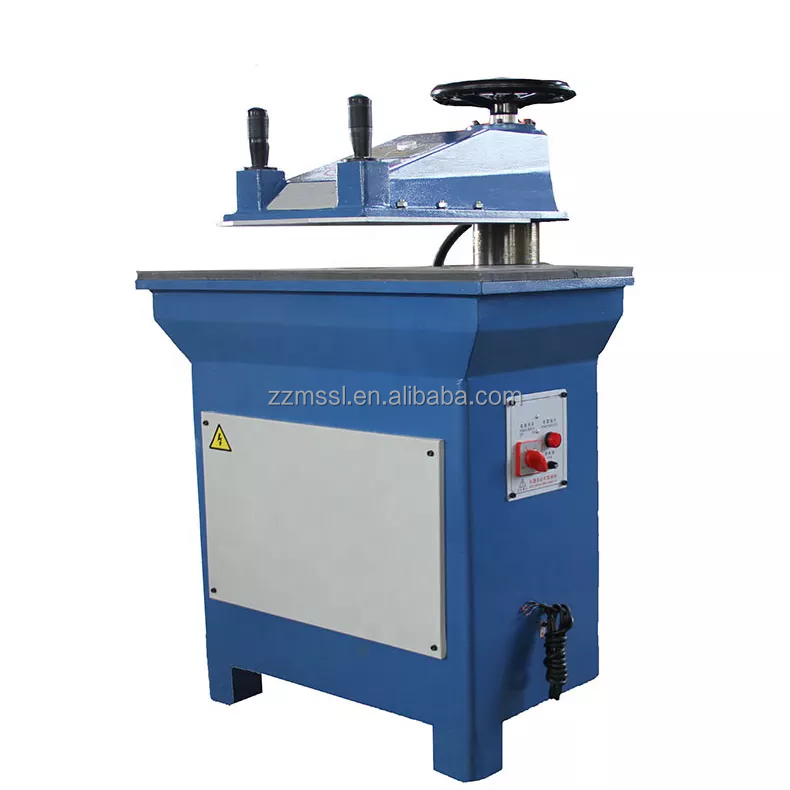

Hydraulic Shoe Swing Arm Cutting Machine
Clicker Press Die Cutting Machine Slipper Making Machine
Swing arm cutting machine is widely used for cutting all kinds of shoe uppers, soles, insoles, leather, rubber, chemical fiber,cardboard, paper,nylon, canvas, non-woven fabrics, cotton and hemp fabrics, plastic bags and all kinds of non-metal materials through small cutting dies.
Specification
|
Model
|
MT-120KN
|
MT-160KN
|
MT-180KN
|
MT-200KN
|
MT-250KN
|
|
Cutting force
|
12Ton
|
16Ton
|
18Ton
|
20Ton
|
25Ton
|
|
Stroke
|
5-75mm
|
5-75mm
|
5-75mm
|
5-75mm
|
5-75mm
|
|
Working Table
|
400*800mm
|
410*900mm
|
450*900mm
|
500*1000mm
|
500*1000mm
|
|
Upper Board
|
350*450mm
|
350*500mm
|
350*500mm
|
350*550mm
|
500*500mm
|
|
Power
|
1.1KW
|
1.1KW
|
1.3KW
|
1.5KW
|
1.5KW
|
|
Voltage
|
220V,AC/380V
|
220V,AC/380V
|
220V,AC/380V
|
220V,AC/380V
|
220V,AC/380V
|
|
Size
|
80*75*135CM
|
90*75*135CM
|
100*85*135CM
|
100*90*135CM
|
110*100*155CM
|
|
Weight
|
380KG
|
460KG
|
500KG
|
520KG
|
220V,AC/380V
|
Details Images
Safe ,two-hand trip operation, rocker cutting head rotates freely, the best sight in operation, convenience in choosing materials with high efficiency.
The oil way system specially designed can conveniently adjust the rocker height. No adjustment is needed after the height of die cutter is changed.
High speed, low energy consumption, less failure and easy maintenance.
Ductile cast iron body made the cutting machine be used for a very long time with small noise.
T o meet the need of frequent replacement of die cutters of different sizes, this type of clicking machine that can timely output three kinds of cutting force is available for selection.
