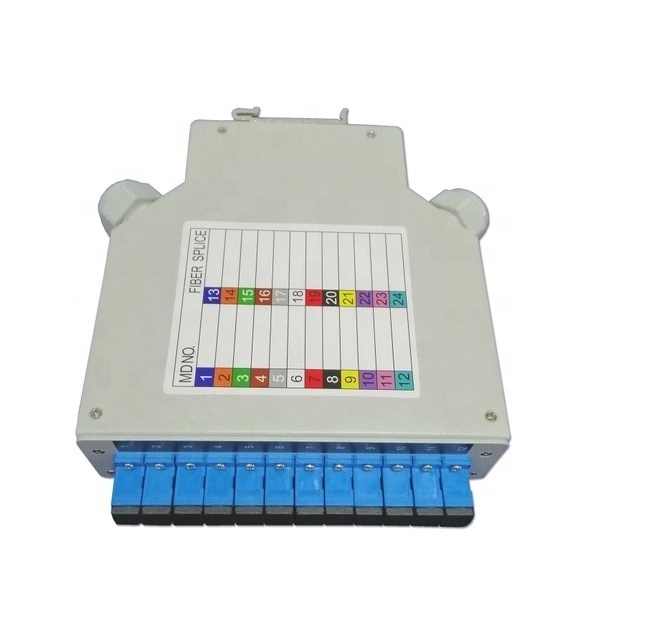

DIN rail mounted fiber optic terminal box with 6 SC/APC duplex adapters and splice tray

DIN rail mounted fiber optic terminal box with 6 SC/APC duplex adapters and splice tray

FOB Reference Price: Get Latest Price

≥50 Pieces

US $9.3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Lulink or OEM

Use:: FTTH

Warranty Time:: 12 months

Splicing capacity:: Max 12 cores

Dimension:: 133x136.6x35mm

Adapter port:: FC, ST, LC, SC

Cable port:: 4

Application:: DIN rail mounted

sample:: sample available

No. of Fiber:: 12.

splice tray material:: plastic

Certificate:: ISO

Quick Details

Type:: Fiber optic terminal box

Model Number:: din guide rail termination box

Place of Origin:: Guangdong, China

Brand Name:: Lulink or OEM

Use:: FTTH

Warranty Time:: 12 months

Splicing capacity:: Max 12 cores

Dimension:: 133x136.6x35mm

Adapter port:: FC, ST, LC, SC

Cable port:: 4

Application:: DIN rail mounted

sample:: sample available

No. of Fiber:: 12.

splice tray material:: plastic

Certificate:: ISO

DIN rail mounted fiber optic terminal box

Description:

This DIN rail mounted fiber optic terminal box that used for fiber connection and distribution. It is made of aluminum, inside with plastic splice tray, light weight, good to use.

Features:

Reasonable design, aluminum box, light weight

Electrostatic powder painting, grey or black color

ABS plastic blue splice tray, rotatable design, compact structure

Max. 12 fibers capacity

FC, ST, LC, SC ... different adapter port available

DIN rail mounted application

Specification:

Dimension	Material	Adapter port	Splicing capacity	Cable port	Application
133x136.6x35mm	Aluminum	12 SC simplex	Max. 24 fibers	4 ports	DIN rail mounted

Accessories:

Item	Name	Specification	Unit	Qty
1	Heat shrinkable protection sleeves	452.61.2mm	pcs	As per using capacity
2	Cable tie	3*120mm white	pcs	2

Drawings: (mm)

Cable management drawings:

1. Fiber optic cable 2. stripping out optical fiber 3. fiber optic pigtail

4. splice tray 5. heat shrinkable protection sleeve

NO.	MODEL	NAME	SPEC.
1	LK07D101-12	ODF UNIT	19-inch,12core
2	LK07D101-24	ODF UNIT	19-inch,24core
3	LK07D101-36	ODF UNIT	19-inch,36core
4	LK07D101-48	ODF UNIT	19-inch,48core
5	LK07D101-72	ODF UNIT	19-inch,72core
6	LK07D101-72	ODF UNIT	19-inch,96core
7	LK07R101-12	ODF PATCH PANEL	19-inch,12core
8	LK07R101-24	ODF PATCH PANEL	19-inch,24core
9	LK07R201-12	ODF PATCH PANEL	19-inch,12core
10	LK07R201-24	ODF PATCH PANEL	19-inch,24core
11	LK07R201-96	ODF PATCH PANEL	19-inch,96core 2.5U
12	LK07R202-12	ODF PATCH PANEL	19-inch,12core
13	LK07R202-24	ODF PATCH PANEL	19-inch,24core
14	LK07R203-24	ODF PATCH PANEL	19-inch,24core
15	LK07R204-24	ODF PATCH PANEL	19-inch,24core
16	LK07W101-4	ODF distribution box	Wall Type,4core
17	LK07W101-6	ODF distribution box	Wall Type,6core
18	LK07W101-8	ODF distribution box	Wall Type,8core
19	LK07W101-12	ODF distribution box	Wall Type,12core
20	LK07W101-24	ODF distribution box	Wall Type,24core
21	LK07W101-48	ODF distribution box	Wall Type,48core
22	LK07W102-8	ODF distribution box	Wall Type,8core
23	LK07W201-8	ODF distribution box	Wall Type,8core
24	LK07W201-24	ODF distribution box	Wall Type,24core
25	LK07W201-48	ODF distribution box	Wall Type,48core
26	LK07W201-72	ODF distribution box	Wall Type,72core
27	LK07W201-96	ODF distribution box	Wall Type,96core
