Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RENHOTEC
-
Model Number:
-
BNC
-
Product Name:
-
RF BNC Connector Series
-
Mounting Type:
-
BNC PCB / Panel Type / Cable / Assembly / Adapter
-
Body Material:
-
Copper / Zinc Alloy / Aluminum Alloy / Stainless Steel
-
Body Plating:
-
Gold Plating / Nickel Plating
-
Mounting Feature:
-
Flange / Bulkhead / Through Hole / SMT
-
Mounting Feature 2:
-
Offset Type / Plate Edge Mount / None
-
Number of Ports:
-
Single Port / Dual Port
-
Cable Type 1:
-
RG58 / RG59 / RG174 / RG178 / RG179 / RG213 / RG214 / RG223
-
Cable Type 2:
-
LMR240 / LMR400
-
Certificate:
-
ISO9001/CE/ROHS/REACH/MSDS
Quick Details
-
Type:
-
RF Connector
-
Application:
-
RF
-
Gender:
-
Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RENHOTEC
-
Model Number:
-
BNC
-
Product Name:
-
RF BNC Connector Series
-
Mounting Type:
-
BNC PCB / Panel Type / Cable / Assembly / Adapter
-
Body Material:
-
Copper / Zinc Alloy / Aluminum Alloy / Stainless Steel
-
Body Plating:
-
Gold Plating / Nickel Plating
-
Mounting Feature:
-
Flange / Bulkhead / Through Hole / SMT
-
Mounting Feature 2:
-
Offset Type / Plate Edge Mount / None
-
Number of Ports:
-
Single Port / Dual Port
-
Cable Type 1:
-
RG58 / RG59 / RG174 / RG178 / RG179 / RG213 / RG214 / RG223
-
Cable Type 2:
-
LMR240 / LMR400
-
Certificate:
-
ISO9001/CE/ROHS/REACH/MSDS
Welcome to Renhotec Group Ltd! Our Slogan is Make Connection Easier……
Products Description
|

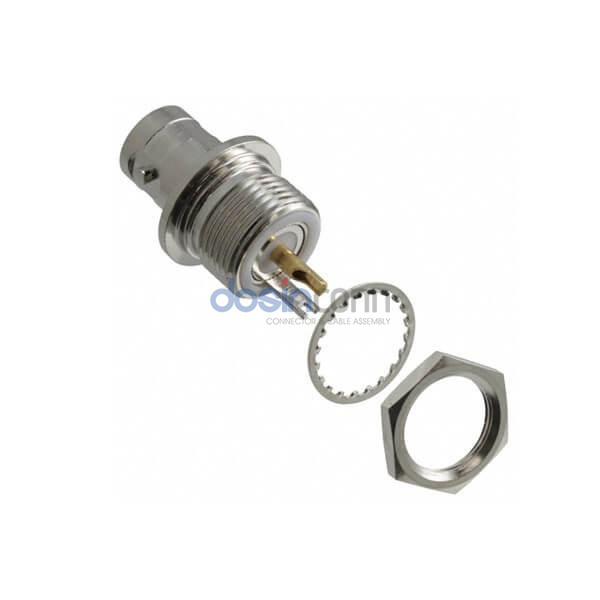

BNC PCB / Panel Type
|
BNC Cable Type
|
BNC Cable Assembly
|
BNC Adapter
|
The
BNC
connector (initialism of Bayonet Neill–Concelman) is a miniature quick connect/disconnect radio frequency connector used for coaxial cable.
BNC connectors are most commonly made in 50 and 75 ohm versions, matched for use with cables of the same characteristic impedance.
Features:
-Bayonet coupling mechanism provides positive, quick mating and un-mating
-50 and 75 ohm impedance designs allow customers to match system requirements
-Connectors are available for military, industrial and commercial applications
-Designs available for many common BNC coaxial cable types
|
Gender
|
Plug / Socket
|
|
Orientation
|
Straight / Right Angle
|
|
Impedence
|
50Ω,75Ω
|
|
Frequency
|
0-4HZ
|
|
Voltage Rating
|
500 Volts RMS Max Continuous
|
|
VSWR
|
1500 VRMS Max
|
|
Body Material
|
Brass / Alloy Zinc / Gold Plated / Nickel Plated
|
|
Insulators
|
Teflon
|
|
Contact Pin
|
Brass / Gold Plated
|
|
Nut
|
Brass / Nickel Plated
|
|
Ferrule
|
Copper / Nickel Plated
|
|
Temperature Range
|
-65°C to +165°C
|
|
Durability (matings)
|
≥ 500 (cycles)
|
