Quick Details
-
Power:
-
4KW
-
Dimension(L*W*H):
-
77*55*92cm
-
Weight (KG):
-
120
-
Name:
-
CF198B
-
Application:
-
Make Wood Sawdust
-
Raw material:
-
Cornstalk rice husk peanut shell waste paper rice stem tree branch
-
Keywords:
-
hammer mill crusher grinder
-
Final product:
-
1-6mm Sawdust
-
Spare parts:
-
Mesh Screen+ Hammer Blades
-
Capacity:
-
15-600kg/h
-
Motor:
-
4kw
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WHOLLY
-
Voltage:
-
380V
-
Power:
-
4KW
-
Dimension(L*W*H):
-
77*55*92cm
-
Weight (KG):
-
120
-
Name:
-
CF198B
-
Application:
-
Make Wood Sawdust
-
Raw material:
-
Cornstalk rice husk peanut shell waste paper rice stem tree branch
-
Keywords:
-
hammer mill crusher grinder
-
Final product:
-
1-6mm Sawdust
-
Spare parts:
-
Mesh Screen+ Hammer Blades
-
Capacity:
-
15-600kg/h
-
Motor:
-
4kw
Product features:

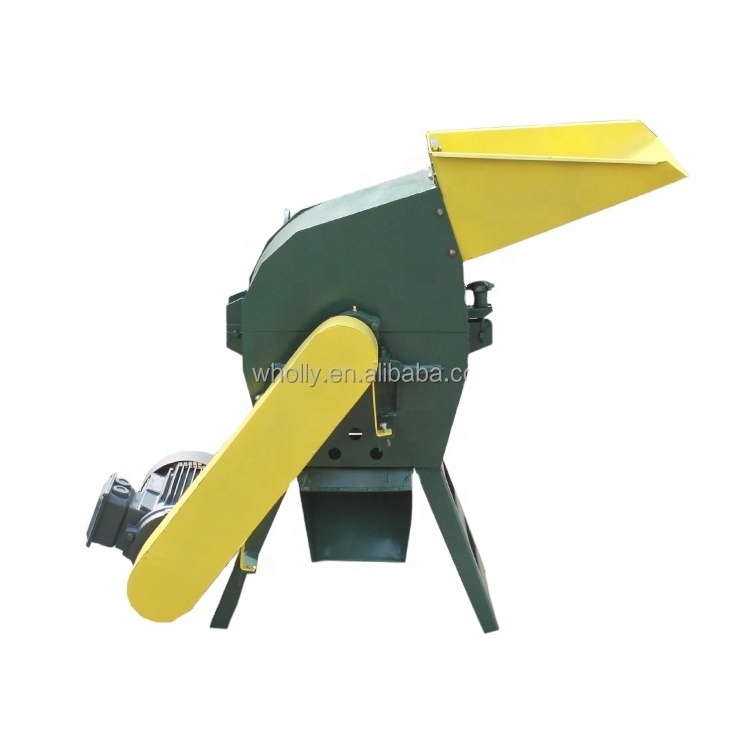

1. Hammer mill are for grinding the Bio-mass like straw, stalk and wood chip, tree branch and forest waste to be powder of less than 1-6mm, which is right size before pelletizing and briquette.
2. It is also ideal machine for farming material like dry or fresh seeding of cornstalk, rice husk, peanut shell, waste paper, rice stem, tree branch, dry leaves, coconut shell, empty fruit bunch, bark, sunflower seeds shell, cotton stem, wood shavings, walnut shell, corn, yam, peanut, rice and other plants, husk, maize, wheat, beans of all grain,
3. It has simple construction, convenient operation, high efficiency and low power consumption.
4. Our hammer mills are matched machines of pellet mills. You can use hammer mills to crush the wood blocks or other raw materials into sawdusts, then you can use sawdust to make pellets by pellet mills.
Model No. | Power | Output (kg/h) | NW/GW(kg) | Packing size(cm) | Remark | |
feed | wood | |||||
CF158(1) | 1.5kw/220V | 100-500 | 100-500 | 75/95 | 80*68*59 | CE motor |
CF158(2) | 1.5kw/380V | 100-500 | 100-500 | 75/95 | 80*68*59 | CE motor |
CF198A | 7.5HP | 200-600 | 150-250 | 120/140 | 122*61*105 | gasoline engine |
CF198B | 4kw/380V | 200-600 | 150-250 | 120/140 | 77*55*92 | CE motor |
CF420A(1) | 15HP | 300-600 | 200-350 | 360/400 | 164*74*105 | diesel engine |
CF420A(2) | 22HP | 400-800 | 300-500 | 360/400 | 164*74*105 | diesel engine |
CF420B(1) | 7.5kw/380V | 300-600 | 200-350 | 260/320 | 112*87*105 | CE motor |
CF420B(2) | 11kw/380V | 400-800 | 300-500 | 320/360 | 112*87*105 | CE motor |
CF500A | 55HP | 900-2000 | 500-900 | 800/840 | 180*150*120 | diesel engine |
CF500B | 22kw/380V | 900-2000 | 500-900 | 600/630 | 124*97*106 | CE motor |
