Quick Details
-
Voltage:
-
220V/380V/440V
-
Power:
-
22-55kw
-
Dimension(L*W*H):
-
According Green Sand Foundry Molding Line
-
Weight (KG):
-
5000
-
Product name:
-
Green Sand Casting Moulding Foundry Line
-
Application:
-
green sand mixer
-
After-sales Service Provided:
-
Free spare parts
Quick Details
-
Place of Origin:
-
Shandong, China
-
Machine Type:
-
green sand mixer
-
Brand Name:
-
TZZJ
-
Voltage:
-
220V/380V/440V
-
Power:
-
22-55kw
-
Dimension(L*W*H):
-
According Green Sand Foundry Molding Line
-
Weight (KG):
-
5000
-
Product name:
-
Green Sand Casting Moulding Foundry Line
-
Application:
-
green sand mixer
-
After-sales Service Provided:
-
Free spare parts
Products Description

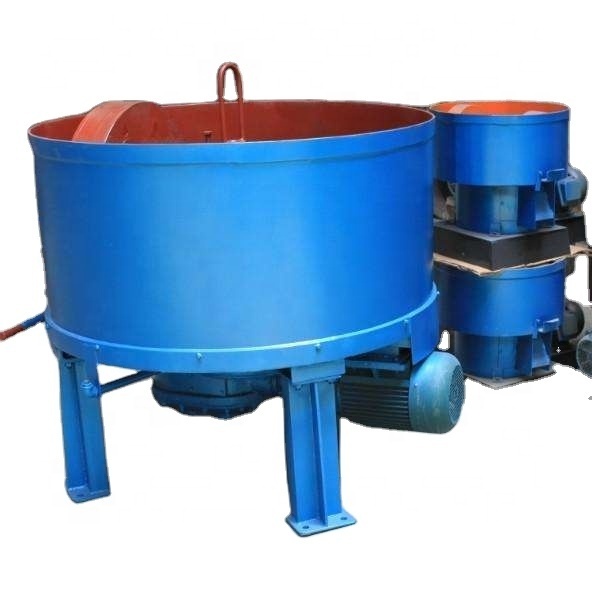

S13 series of equipment is mainly used for mixing surface sand, single green sand, core sand and self-hardening sand.
The best combination of grinding wheel pressure and sand mixing rotor has high sand mixing efficiency and good quality.
Force lubrication to ensure that the machine in the best lubrication state.
Reliable transmission system to strengthen the lubrication system, to ensure 100% of the machine operating rate of rotary unloading door, completely prevent sand leakage
S13 series roller type sand mill machine adopts the spring pressure technology and
works inside and outside the scraper on the sand through stirring and rotating grinding wheel
rolled up sand objective.
-Sand mill machine is a perfect sand mixing machine and widely used in medium and small
foundry factory.
.
|
Model
|
Disk diameter (mm)
|
First feeding amount (kg)
|
Productivity (t / h)
|
Power of main motor (Kw)
|
Quality（kg）
|
|
S1318
|
Ф1800
|
650
|
15
|
22
|
4000
|
|
S1320C
|
Ф2000
|
800
|
20
|
30
|
5000
|
|
S1320D
|
Ф2000
|
800
|
20
|
30
|
5500
|
|
S1320E
|
Ф2000
|
900
|
24
|
37
|
6000
|
|
S1322
|
Ф2240
|
1350
|
30
|
55
|
9000
|
|
Productivity (box / hour)
|
40-60
|
40-60
|
40-60
|
40-60
|
40-60
|
|
Distance compacting plate with worktable(mm)
|
200-370
|
300-450
|
350-450
|
450-600
|
450-600
|
|
Outline dimension L*W*H (mm)
|
950*680*1330mm
|
1200*1000*1700mm
|
1400*1000*1700mm
|
1200*1100*1800mm
|
1200*1200*1800mm
|
