Quick Details
-
Size:
-
customized
-
Weight (KG):
-
0.9 kg
-
Material:
-
PP fiber membrane
-
Length:
-
10" 20" 30" 40 inch
-
Function:
-
Water Filter Cartridge
-
Outer diameter:
-
customized
-
Pore Rate(μm):
-
0.1,0.2,0.45,0.65,1,3,5,10,20,
-
Product name:
-
0.01 micron water filter
-
Application:
-
Filtration
-
Brand:
-
HUAHANG
-
Packing:
-
Carton Box
-
Shape:
-
Cylinder
Quick Details
-
Core Components:
-
pp pleated filter
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HUAHANG
-
Size:
-
customized
-
Weight (KG):
-
0.9 kg
-
Material:
-
PP fiber membrane
-
Length:
-
10" 20" 30" 40 inch
-
Function:
-
Water Filter Cartridge
-
Outer diameter:
-
customized
-
Pore Rate(μm):
-
0.1,0.2,0.45,0.65,1,3,5,10,20,
-
Product name:
-
0.01 micron water filter
-
Application:
-
Filtration
-
Brand:
-
HUAHANG
-
Packing:
-
Carton Box
-
Shape:
-
Cylinder
Product Description
|
Filter medium
|
|
PP Fibre Membrane
|
|
|
|||
|
Support layer
|
|
Polypropylene (PP)
|
|
|
|||
|
Filter cage
|
|
Polypropylene (PP)
|
|
|
|||
|
Pore size
|
|
0.1,0.2,0.45,0.65,1,3,5,10,20,30,60µm
|
|
|
|||
|
Length
|
|
5",10",20",30",40 inch
|
|
|
|||
|
Diameter
|
|
69mm
|
|
|
|||
|
Gasket / O - rings
|
|
Silicone, NBR, EPDM, Viton
|
|
|
|||
|
End caps
|
|
DOE,0050,0050A,0050B
|
|
|
|||
|
Effective filtration area
|
|
0.4~0.7 m2/10"
|
|
|
|||
|
Max. operating temperature
|
|
80℃, 0.28 Mpa
|
|
|
|||
|
Max. forwarder differential pressure
|
|
0.42 Mpa (25℃)
|
|
|
|||
|
Max. reverse differential pressure
|
|
0.28 Mpa (25℃)
|
|
|
|||
|
Sterilizing temperature
|
|
121℃ 30min
|
|
|
|||

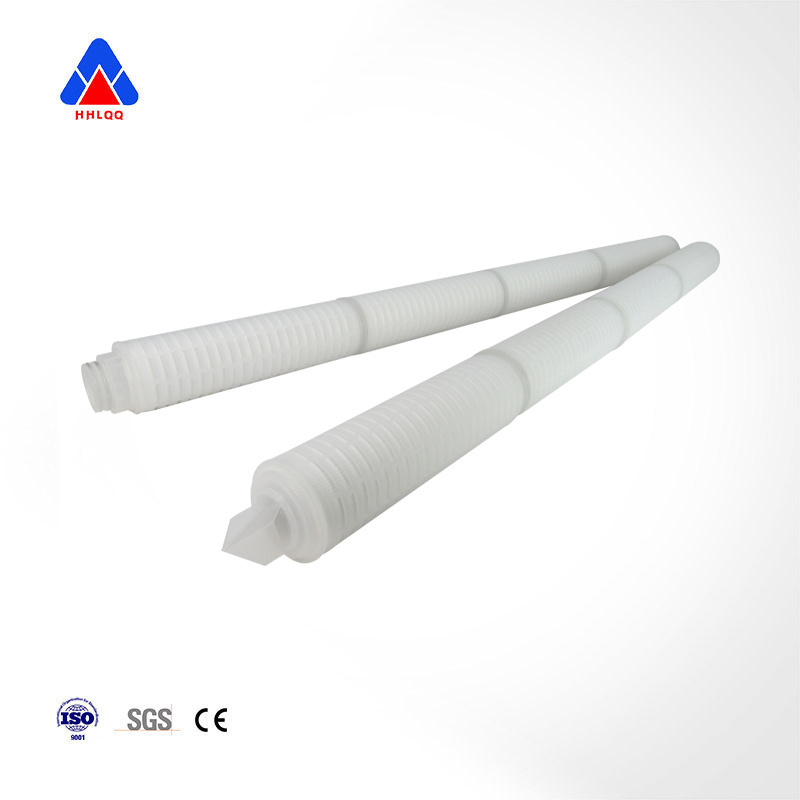

PP filter cartridge is constructed of micro pore polypropylene membrane media.
The material of cage, core and end cap are polypropylene.Adaptors are welded with cartridges without using glue.
The material of cage, core and end cap are polypropylene.Adaptors are welded with cartridges without using glue.
PP pleated cartridge filter is constructed by 100% polypropylene media providing a wide range of chemical compatibility. The Polypropylene cartridge flters include 3 to 4 layers of membrane. The multi layers membrane structure enables a graded fltration pore sizes and increases the dirt-holding capacity of the PP pleated cartridge filters. With rigid outer cage and strengthened inner core, the PP pleated filter cartridge can hold higher operation pressure than before.
Polypropylene(PP) pleated filter cartridge is made of the high accuracy PP membrane, with widely chemical compatibility, extremely low dissolved matter, and can be used in various filter situation.
Polypropylene(PP) pleated filter cartridge is made of the high accuracy PP membrane, with widely chemical compatibility, extremely low dissolved matter, and can be used in various filter situation.
The entire PP structure, effectively avoid dissolved matter.
With widely chemical compatibility, it is suitable for most acid, alkali and solvent filter requirements.
Multi-layer filter structure, high pollutant holding capacity, long durability.
With widely chemical compatibility, it is suitable for most acid, alkali and solvent filter requirements.
Multi-layer filter structure, high pollutant holding capacity, long durability.
Structure
Different ways to connect(Customized)
Related products
Packing & Delivery
Shipping :
1. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!
Delivery time :
7-10 days for payment ; 12-15 days for batch goods
1. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!
Delivery time :
7-10 days for payment ; 12-15 days for batch goods
