- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ocean
-
Model Number:
-
PCJY
-
Dimension(L*W*H):
-
customization
-
Weight:
-
5-10tons
-
Warranty:
-
One-Year Limitated
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-

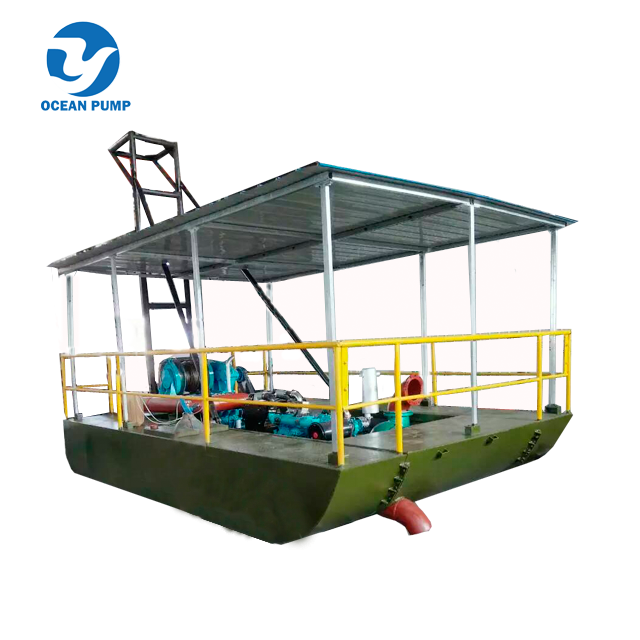

Name:
-
sand suction dredger
-
Colour:
-
Customized
-
Product name:
-
Sand Dredger Machine
-
Sand output:
-
30-100 m3/h sand per hour
-
discharge distance:
-
50-20m
-
Application:
-
Sand Dredging
-
Usage:
-
sand material dredging
-
Water flow:
-
120-480m3/h water flow
-
factory:
-
we are factory
-
Structure:
-
Assemble
-
Certification:
-
ISO9001
Quick Details
-
Dredging Depth:
-
15 m
-
Draught:
-
40 cm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ocean
-
Model Number:
-
PCJY
-
Dimension(L*W*H):
-
customization
-
Weight:
-
5-10tons
-
Warranty:
-
One-Year Limitated
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
sand suction dredger
-
Colour:
-
Customized
-
Product name:
-
Sand Dredger Machine
-
Sand output:
-
30-100 m3/h sand per hour
-
discharge distance:
-
50-20m
-
Application:
-
Sand Dredging
-
Usage:
-
sand material dredging
-
Water flow:
-
120-480m3/h water flow
-
factory:
-
we are factory
-
Structure:
-
Assemble
-
Certification:
-
ISO9001
Product Description
Detailed Images
Simple sand pump :
1.Material :Cast Iron and high chrome alloy
2. with flange or without flanges
3. Wear Resistant material
4.Driven by Diesel engine or motor
Sand pump set
1. Driven by diesel engine
2. with pulley belt connected the pump and engine
3. Air coolling engine
4. with common metal base for pump and engine
Nigeria customer inspect dredger
See from back
Customer on the dredger
Water suction head
1. connected by flexbile rubber hose for the sand dredge pump ,with high pressure water pump to flush water and sand then pump them .
2. Can provent the big particle pumping and also can protect pump safe .
Sand suction hose :
1. With high quality and wear resistant material for sand suction use
2. with double flanges for easy connection
Propeller driven by Diesel engine
the propeller can help dredger move up and down ,and help chang the direction of dredger
Winch
Driven by diesel engine
We have 1 ton ,2 ton .3ton.4 tons and 5 tons for lift up and down the sand suction hose
