Quick Details
-
Brand Name:
-
CHYT
-
Model Number:
-
DS1EL-S32
-
Max. Current:
-
32A
-
Product name:
-
Waterproof Isolator Switch
-
Pole:
-
4P
-
Color:
-
white
-
Rated insulation voltage:
-
1500V
-
Rated current:
-
32A
-
Material:
-
Plastic
-
Mechanical Life:
-
Not less than 10000 times
-
Type:
-
Manual
-
Function:
-
Isolation function
-
Application:
-
Solar Pv System
-
Certification:
-
TUV CE SAA RCM
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
1200V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHYT
-
Model Number:
-
DS1EL-S32
-
Max. Current:
-
32A
-
Product name:
-
Waterproof Isolator Switch
-
Pole:
-
4P
-
Color:
-
white
-
Rated insulation voltage:
-
1500V
-
Rated current:
-
32A
-
Material:
-
Plastic
-
Mechanical Life:
-
Not less than 10000 times
-
Type:
-
Manual
-
Function:
-
Isolation function
-
Application:
-
Solar Pv System
-
Certification:
-
TUV CE SAA RCM
Product Description
Product introduction

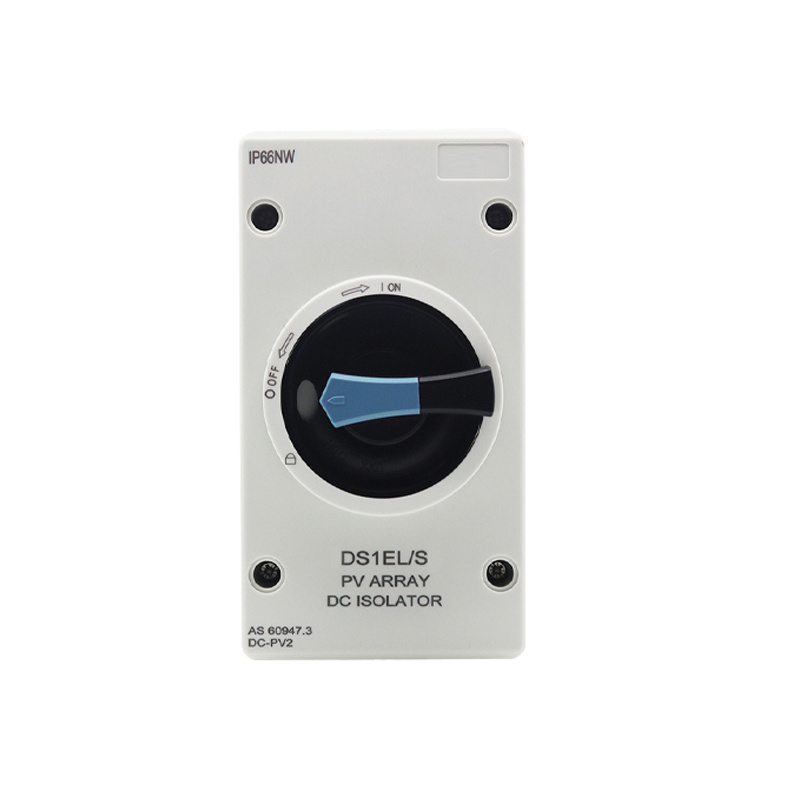

DS1EL-S32 IP66 enclosed 1000V 32A DC isolator switch is developed for solar installation. Put on the roof top and between the solar arrays and solar inverter. For isolation the PV array during system installation or any maintenance.
Product features
1.Compact and suitable were space is limited
2.DIN rail mounting for easy installation
3.Load-breaking up to 8 times rated current making it ideal for motor isolation
4.Double-break with silver rivets-superior performance, reliability and long lasting
5.Highly visible blue handle
6.Large padlock able blue handles
7.Comprehensive range, 16 to 32A models
8.High IP66 rating
9.High breaking capacity with 12.5 mm contact air gap
10.Easy to install and operate
11.Easy snap-on fitting of auxiliary switches
Specification
|
Product Model
|
DS1EL-S32
|
|
Rated insulation voltage Ui
|
1500V
|
|
Rated heating current Ithe
|
32A
|
|
Pole
|
4P
|
|
Rated impulse withstand voltage Uimp
|
8000V
|
|
Rated short-time withstand current(1s) Icw
|
1000A
|
|
Rated short-circuit making capacity Icm
|
1000A
|
|
Working Temperature
|
-40℃ ~+85℃
|
|
Waterproof grade
|
IP66
|
|
Mechanical Life
|
Not less than 10000 times
|
