Quick Details
-
Warranty:
-
2 years, 1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NUCLEON
-
Model Number:
-
electric winch/windlass
-
Name:
-
Winch
-
Color:
-
As your requirement
-
Lower voltage protection:
-
Include
-
Overload protection device:
-
Include
-
Emergency protection:
-
Include
-
Motor:
-
Permanent Magnet
-
Material:
-
Steel
-
Usage:
-
Towing Line
Quick Details
-
Power Source:
-
Electric
-
Application:
-
CRANES
-
Capacity:
-
Different, 5~650KN
-
Warranty:
-
2 years, 1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
NUCLEON
-
Model Number:
-
electric winch/windlass
-
Name:
-
Winch
-
Color:
-
As your requirement
-
Lower voltage protection:
-
Include
-
Overload protection device:
-
Include
-
Emergency protection:
-
Include
-
Motor:
-
Permanent Magnet
-
Material:
-
Steel
-
Usage:
-
Towing Line
Product Overview

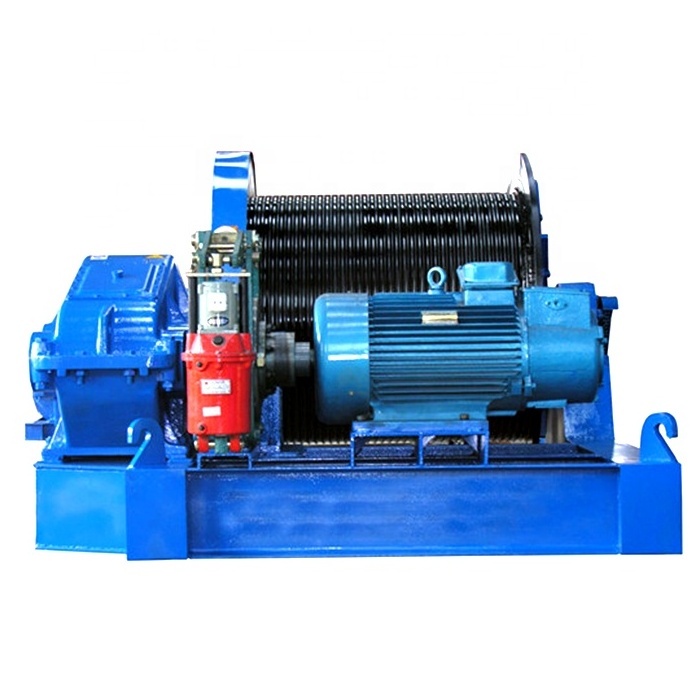

Winch Windlass
A electric winch is a small and light lifting device that uses a drum to wind a steel rope or a chain to lift or pull a heavy
object. It is also called a winch. The hoist can lift the weight vertically, horizontally or inclinedly. Now mainly electric winch. It can be used alone or as a component in machinery such as lifting, road construction and mine hoisting.
object. It is also called a winch. The hoist can lift the weight vertically, horizontally or inclinedly. Now mainly electric winch. It can be used alone or as a component in machinery such as lifting, road construction and mine hoisting.
It is widely used due to its simple operation, large amount of rope winding, and convenient displacement. Mainly used in
construction, water conservancy engineering, forestry, mining, wharf, etc. materials lifting or flat towing.
construction, water conservancy engineering, forestry, mining, wharf, etc. materials lifting or flat towing.
Product Paramenters
Electric Winch Features:
1. High versatility, compact structure and small size.
2. Light weight, heavy lifting, easy to use and transfer.
3. As hoisting equipment, it is used for mine hoisting, well drilling and hanging (lifting) well drilling equipment, that is,
lifting ore, waste (gangue) rock, lifting personnel, lowering materials, tools and equipment, etc. along the wellbore
4. As transportation equipment, it is used for underground transportation of ore (mining cart), rake ore (slag) in the stope, or filling and removing uprights.
2. Light weight, heavy lifting, easy to use and transfer.
3. As hoisting equipment, it is used for mine hoisting, well drilling and hanging (lifting) well drilling equipment, that is,
lifting ore, waste (gangue) rock, lifting personnel, lowering materials, tools and equipment, etc. along the wellbore
4. As transportation equipment, it is used for underground transportation of ore (mining cart), rake ore (slag) in the stope, or filling and removing uprights.
|
Model
|
Rated Load
(KN）
|
Rope Capacity
(M)
|
Rope Diameter
(MM)
|
Motor Power
(KN)
|
Overall Dimension
(MM)
|
Overall Weight
(KG）
|
|
JK0.5
|
5
|
190
|
7.7
|
3
|
620*701*417
|
200
|
|
JK1
|
10
|
100
|
9.3
|
4
|
620*701*417
|
300
|
|
JK1.6
|
16
|
150
|
12.5
|
5.5
|
945*996*570
|
500
|
|
JK2
|
20
|
150
|
13
|
7.5
|
945*996*570
|
550
|
|
JK3.2
|
32
|
290
|
15.5
|
15
|
1325*1335*840
|
1011
|
|
JK3.2B
|
32
|
250
|
15.5
|
22
|
1900*1620*985
|
1500
|
|
JK5
|
50
|
300
|
21.5
|
30
|
1900*1620*985
|
2050
|
|
JK5B
|
50
|
210
|
21.5
|
22
|
2250*2500*1300
|
2264
|
|
JK8
|
80
|
160
|
26
|
45
|
1533*1985*1045
|
3000
|
|
JK10
|
100
|
300
|
30
|
55
|
2250*2500*1300
|
5100
|
Successful Project
Packing & Shipping
Company overview
Nucleon (Xinxiang) Crane co., ltd
.
, founded in 2005, the registered capital of 270 million Yuan, covers an area of 450000 square meters, staff 1700 people. Achieves ISO production system certification and europe standards like DIN & FEM.Nucleon is a bridge, gantry crane, coal series hoisting equipment, small light lifting equipment and other products of research and development, manufacture, installation, sales and service as one of the Sino-foreign joint ventures. The ND, NH model wire rope electric hoist, NL type chain electric hoist, mine explosion-proof hoist, HD type electric single-girder, NLH type electric hoist bridge crane in the domestic leading level, the electric hoist production for many years ranking second in the country.
