Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZYZG
-
Year:
-
2021
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
1500*1200*3600
-
Weight (T):
-
3.5 T
-
Motor Power (kw):
-
7.5 kw
-
CNC or Not:
-
Normal
-
Power Source:
-
Hydraulic
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Online support, Free spare parts, Video technical support, Field maintenance and repair service
-
Application:
-
Metal Sheet Stamping
-
Function:
-
Stamping Metal Product
-
Color:
-
Customer Request
-
Type:
-
Four Columns
-
Material:
-
Steel Material
-
product name:
-
hydraulic press machine
-
Usage:
-
Pressing Metal Products
-
Certification:
-
ISO9001 CE
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
800
-
Return Force (kN):
-
2000 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZYZG
-
Year:
-
2021
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
1500*1200*3600
-
Weight (T):
-
3.5 T
-
Motor Power (kw):
-
7.5 kw
-
CNC or Not:
-
Normal
-
Power Source:
-
Hydraulic
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Online support, Free spare parts, Video technical support, Field maintenance and repair service
-
Application:
-
Metal Sheet Stamping
-
Function:
-
Stamping Metal Product
-
Color:
-
Customer Request
-
Type:
-
Four Columns
-
Material:
-
Steel Material
-
product name:
-
hydraulic press machine
-
Usage:
-
Pressing Metal Products
-
Certification:
-
ISO9001 CE

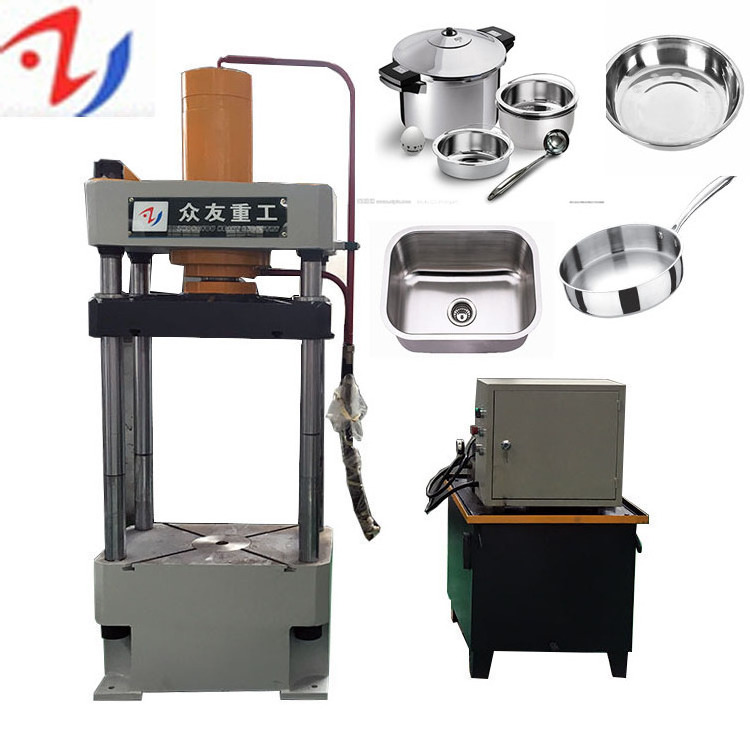

200 tons Hydraulic stainless steel kitchen utensils cookware making press machine
Stainless steel cookware utensils making mach ine main feature:
1.Four Column Hydraulic Press adopts advanced design technology of three-dimensional computer controlled (finite element analysis &prestressed modal analysis) and three beams-four columns body structure which makes it classic, contracted and utility.
2.The separated hydraulic motive power mechanism and electric system ensure the visual performance and convenient service.The centralized pushbutton control allows adjustment, hand operation and semi-automatic operation.
3.Working pressure, pressing speed and stroke limit of the press can be adjusted according to process requirement. The pressure adjusted in this hydraulic control system is overflow valve which increase the precision and facility of the pressure adjusted.
4.The hydraulic control system(Taifeng, cartridge valve integrated hydraulic system) is composed of plug-in integrated valve which possess the high efficiency.
5.CUSTOMIZED parameters are available for customers.
Technical parameters
|
Unit |
YQ32-100 |
YQ32-160 |
YQ32-200 |
|
|
Nominal Force |
Kn |
1000 |
1600 |
2000 |
|
Systerm Pressure |
Mpa |
25 |
25 |
25 |
|
Max Opening Height |
mm |
800 |
900 |
1200 |
|
Stroke |
mm |
500 |
600 |
700 |
|
bed size |
mm |
630X550 |
600X600 |
1000X1000 |
|
upper ejection cylinder force |
Kn |
200 |
400 |
400 |
|
stroke of ejection cylinder |
mm |
200 |
200 |
220 |
|
slider descending speed |
mm/s |
100 |
100 |
100 |
|
slider press speed |
mm/s |
5-10 |
5-10 |
5-10 |
|
slider return speed |
mm/s |
90 |
90 |
90 |
Technical Performance:
1. Low energy consumption, high speed, low noise, high efficiency;
2. Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch;
3. Activity crossbeam has safety limiter in both up and down directions;
4. Equipped with photoelectric protection device, could guarantee the safety of the operation;
5. With the function of automatic and manual, it's convertible;
6. Two operation model, viz. pressure regulation and stroke regulation which can beselected through operational panel, and has the character of pressure-keeping and time-delaying.
Stainless steel utensils cookware making machine:
1. Metal Sheet Deep Drawing
Water tank, wheelbarrow, kitchen sink, stainless steel pot, etc
2. Metal/Carton package Stamping
Metal roof tile,washer etc
3. Sheet metal /Aluminum Embossing
Car body, door skin etc
4. Sheet bending and cutting
