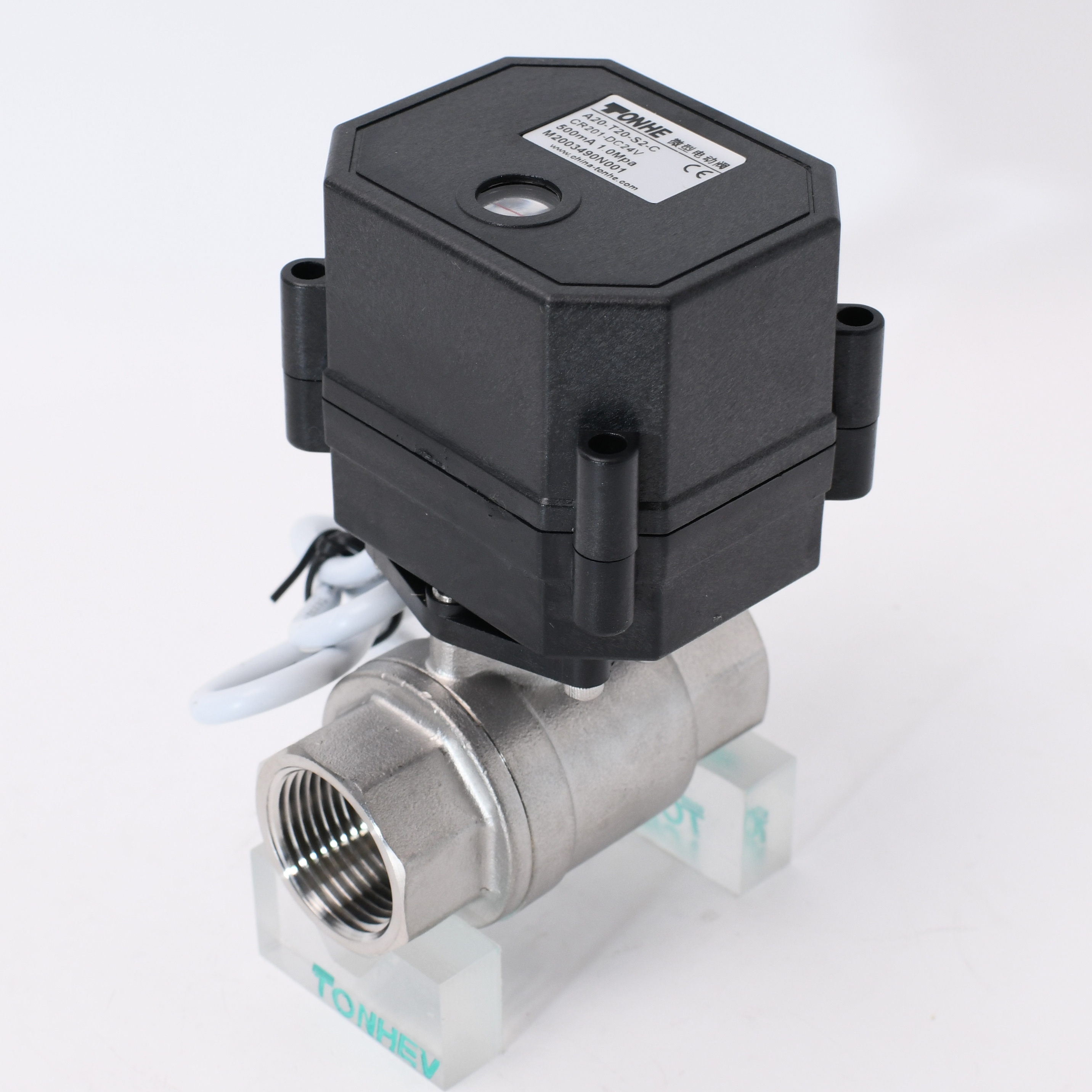

kld20s mini motorized ball valve Stainless steel electric ball valve for water,HVAC,air conditional System

Product Description

1/2" 12v 24v Stainless steel electric ball valve for water,HVAC,air conditional System motorized valve

Size	1/2"
Material	Stainless Steel
Fields of applications	Water
Maximum working pressure	1.0MPa
Rated Voltage	DC12V/DC24V (pls confirm the voltage)
Packaging	Standard export package or Customized
Payment	L/C,D/P,T/T
Delivery	Ningbo Port,3-20 days after payment

Technical Parameters:

Model: T15-S2-CR201-A

Size: 1/2''

Internal diameter: 15mm

Rated Voltage: DC12V/DC24V (pls confirm the voltage)

Working current: less than 80MA

Open/close time: less than 5S

Wiring control: CR2-01

Life time: 70000 times

Manual override: NO

Indicator: NO

Max. working pressure: 1.0MPa

Actuator material: Engineering Plastics

Sealing material:EPDM & PTFE

Vale body material: SS304

Max. torque force: 2 Nm

Cable length: 50cm

Actuator rotation: 90 degree

Liquid temperature: 2 Celsius-90 Celsius

Environment temperature: -15 Celsius-50 Celsius

Protection class: IP67

Application

Water meter , water leak detection system and water treatment etc equipment

HAV and fire works. Automatic drain system

Irrigation ect small control equipment

Pls confirm the above different versions of actuators

When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage

3, wire control

4, valve manual override & indicator ( yes or no)

5, actuator cable length

Wiring Diagram

RD connect with positive, the BK connect with negative, the valve closed, the actuator automatically power off after in place , the valve remains fully closed position .
BK connect with positive, the RD connect with negative, the valve open, the actuator automatically power off after in place, the valve remains fully open position .
Suitable Working Voltage: DC3-6v, DC5V, DC12V, DC24V
Exceeding the working voltage is forbidden

Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.


TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016 . I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .

FAQ

Q. what is your payment term?

A: T/T 30% down payment, balance to be paid before shipment. or L/C.

Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Q: How about your products and company approved?

A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.

Q: Can I get samples from your factor y?

A: Yes, Samples can be provided.

Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
