Inclined panel direction for better view and convenient operation;
Zinc alloy material; strong and long-life lasting;
Multi unlock modes: fingerprint/pass-code/card/smart phone/key
Passage mode and private mode convertible
Secure-locking by button from inside enhances privacy and security
Low voltage alarm;
(When the batteries are low, user put the finger on the reader or enter pass-code or scan
the card or click the icon on the phone to unlock the door, the lock voice prompts “Low
battery, please change the batteries” and the keyboard back lights quickly blinks 1 second.)
Wrong pass-code/illegal card alarm;
(Any wrong pass-code or illegal cards attempt 5 times; the keypad will be locked 5 minutes)
Anti-peep pass-code
(Any numbers can be added before or after the correct pass-code to avoid the real code to
be exposed in front of the strangers)
Unlock records can be queried
Emergency power back up by microUSB
Mechanical key override
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
XPOTECH
-
Model Number:
-
BL15F
-
Product name:
-

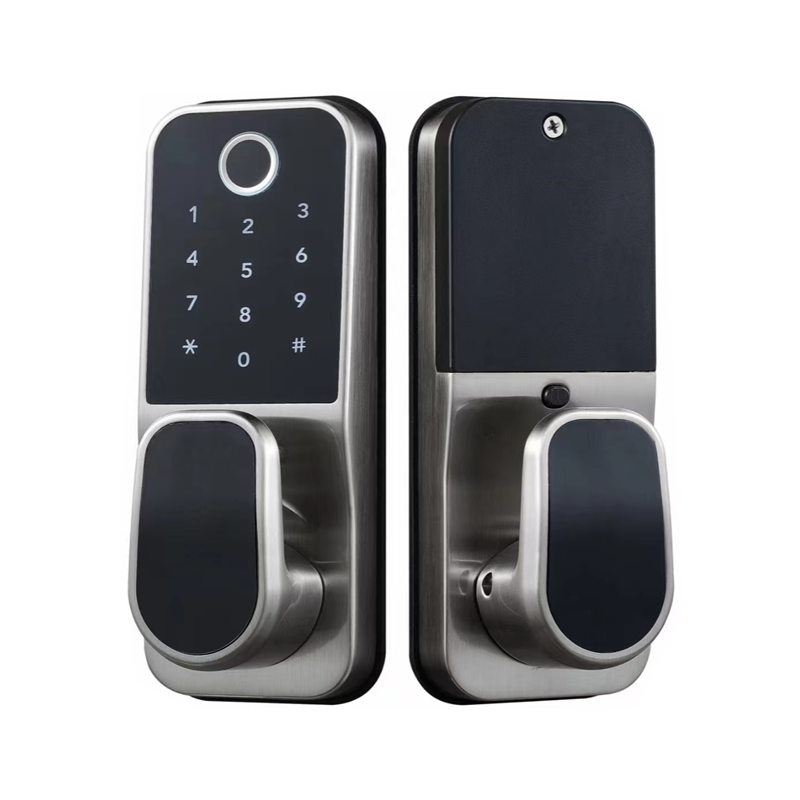

Smart Fingerprint Door Lock
-
Unclock Ways:
-
Phone App, Password, Keys, M1 Card
-
Dimension:
-
154*63*24mm
-
Communication:
-
BLE / WIFI
-
Application:
-
Office, Home, Apartment
-
System:
-
Android 4.3 / IOS 7.0 above
-
APP name:
-
TT Lock / Tuya
-
Type:
-
Single latch
-
Door thickness:
-
35 to 45mm
Quick Details
-
Door Type:
-
Wood door, Steel door, Stainless Steel door, Aluminum door, Brass door
-
Network:
-
bluetooth
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XPOTECH
-
Model Number:
-
BL15F
-
Product name:
-
Smart Fingerprint Door Lock
-
Unclock Ways:
-
Phone App, Password, Keys, M1 Card
-
Dimension:
-
154*63*24mm
-
Communication:
-
BLE / WIFI
-
Application:
-
Office, Home, Apartment
-
System:
-
Android 4.3 / IOS 7.0 above
-
APP name:
-
TT Lock / Tuya
-
Type:
-
Single latch
-
Door thickness:
-
35 to 45mm
Recommend Products
BLAC1 Card Access Control
Non Waterproof
IC Card&Code&APP
200 IC Card Capacity
150 Custom Code
BLAC2 Card Access Control
IP66 Waterproof
IC Card&Code
&APP
20000 IC Card Capacity
150 Custom Code
BLAC2-F Fingerprint Access Control
IP66 Waterproof
Fingerprint&IC Card&Code
&APP
100 Fingerprint; 20000 IC Card Capacity
150 Custom Code
BL08-F Fingerprint Lock
Fingerprint&IC Card&Code&APP&Keys
100 Fingerprint; 100 IC Card Capacity
150 Custom Code
Products Description
Product Paramenters
|
Installation Condition
|
Door frame：≥ 110mm; Door thickness: 30 ～ 50mm;
Door thickness ≥ 50mm(cylinder pin will be longer);
Suit for push-inside door.
|
|
|
|
Lock Bolt
|
Deadbolt single latch default:
Optional 5050/ 6085/5572/6072 please check with us
|
|
|
|
Material
|
Zinc alloy
|
|
|
|
Power supply
|
4.5 ~ 6.5V(4 pcs AA alkaline batteries)
|
|
|
|
BLE standard
|
4.0 BLE (adopt Nordic 51822 chip)
|
|
|
|
Support phone system
|
Android 4.3/IOS 7.0 above
|
|
|
|
Alarm voltage
|
4.8V ±0.2V
|
|
|
|
Static current
|
≤60µA
|
|
|
|
Dynamic current
|
≤200 mA
|
|
|
|
Operating temperature
|
-40 ~ 70℃
|
|
|
|
Operating humidity
|
20 ~ 93%RH
|
|
|
|
Opening time
|
around 1.5 seconds
|
|
|
|
FAR(False Acceptance Rate)
|
<0.001%
|
|
|
|
FRR(False Reject Rate)
|
<1.0%
|
|
|
|
Mobile phone app
|
no limitation
|
|
|
|
Fingerprint capacity
|
200pcs
|
|
|
|
Card (M1 card) capacity
|
100 pcs
|
|
|
|
TTLock APP Password Types
|
One-time password; Timed password; Permanent password; Cyclic password; Customize Password (150pcs)
|
|
|
|
Tuya APP Password Types
|
Online Temporary Code; Offline Temporary Code; One Time Code (Valid for 6 hours,can only be used once)
|
|
|
|
Packing details
|
10pcs/ctn; 20kgs per carton; 46*26*59cm
|
|
|
What you can do with our TTLock smart phone app
WIFI Gateway Optional for TTLock BLE Lock
