Quick Details
-
Brand Name:
-
SHD
-
Dimension(L*W*H):
-
9000*2628*3400mm
-
Capacity:
-
15ton
-
Weight:
-
9770kg
-
Inner Material:
-
q345r
-
Outer Material:
-
antiseptic painting
-
Design Pressure(MPa):
-
1.77
-
Design Standard:
-
GB
-
Working Temperature(℃):
-
-20 - 40 ℃
-
Material:
-
Alloy steel Q345R
-
Type:
-
Horizontal
-
Color:
-
Customized
-
Application:
-
filling car/cylinder/home use
-
Keywords:
-
propane lpg tank pressure vessel storage lpg storage lpg gas tanks
-
Working Pressure:
-
1.6 Mpa
-
Designed pressure:
-
1.77 MPa
-
Volume:
-
5000L to 200000L
-
standard:
-
GB150 ASME
-
Name:
-
LPG storage tank for building cooking cylinders refilling station
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
South Africa, Nigeria
Quick Details
-
Volume (m³):
-
70
-
Max Working Pressure(MPa):
-
1.6 MPa
-
Place of Origin:
-
China
-
Brand Name:
-
SHD
-
Dimension(L*W*H):
-
9000*2628*3400mm
-
Capacity:
-
15ton
-
Weight:
-
9770kg
-
Inner Material:
-
q345r
-
Outer Material:
-
antiseptic painting
-
Design Pressure(MPa):
-
1.77
-
Design Standard:
-
GB
-
Working Temperature(℃):
-
-20 - 40 ℃
-
Material:
-
Alloy steel Q345R
-
Type:
-
Horizontal
-
Color:
-
Customized
-
Application:
-
filling car/cylinder/home use
-
Keywords:
-
propane lpg tank pressure vessel storage lpg storage lpg gas tanks
-
Working Pressure:
-
1.6 Mpa
-
Designed pressure:
-
1.77 MPa
-
Volume:
-
5000L to 200000L
-
standard:
-
GB150 ASME
-
Name:
-
LPG storage tank for building cooking cylinders refilling station
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
South Africa, Nigeria

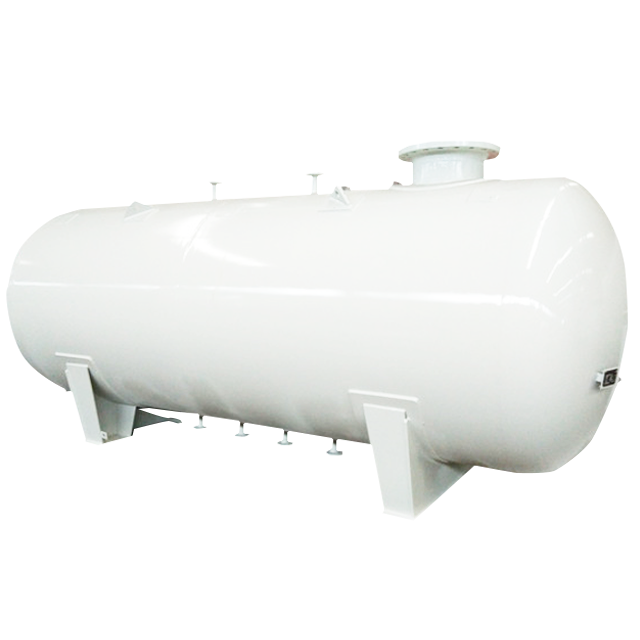

Products Description
Stand-alone LPG storage units with pumping equipment and dispenser incorporated in a frame.
Includes transfer equipment to allow the supply of gas in liquid phase to vehicles with the maximum guarantee of safety.
Simplified installation: only requires connection of power supply to the unit and anchoring to the ground (with earth connection).
|
volume(cbm)
|
40
|
|
design pressure(MPa)
|
1.77
|
|
material
|
Q345R alloy steel
|
|
Medium
|
Lpg propane butane
|
|
total size(l*w*h)mm
|
9500*2400*2950
|
|
net weight(kg)
|
9055
|
Details Images
WEDDING TECHNOLOGY
Compared to conventional manual welding, mechanical automatic welding is a method in which an electric arcis burned under the flux layer for welding. Mechanical automatic welding is one of the most efficient mechanizedwelding methods available today. stable welding quality, high welding productivity, there is no arc and smokedust and so on, so that our products are neat, smooth and beautiful, also extend the service life.
PAINTING TECHNOLOGY
Standard finish:Our standard finish on the outer surface is highly effective against corrosion.. Firstly, the entiretank is sandblasted and rusted, sprayed with primer, and then externally sprayed with polyurethane topcoat fordouble-layer rust and anti-corrosion treatment.For some customers in special environments，we havedeveloped anti-corrosion type to prevent acid-base.Thereby extending the service life of the product underspecial environments.
100% tested before shipping
One year warranty and guarantee
Certificate with ISO,MID,PCEC,etc
Hot selling in South America,factory direct selling
