Quick Details
-
Production Capacity:
-
30-60bags/mn
-
Weight (KG):
-
550
-
Voltage:
-
220V 50Hz or 110V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SENIT
-
Dimension(L*W*H):
-
1750*740*1950mm
-
Product Name:
-
er Paper Pouch Sachet Tea Bag Packing Machine
-
Usage:
-
Tea Powder Packing Machine
-
Bag type::
-
3 side sealing
-
Main function:
-
Automatic tea Filling Sealing Packing
-
Machine type:
-
Tea Powder Filling Packing Machine
-
Keywords:
-
Tea Bag Packing Machine
-
Packing Material:
-
Tea Powder,Tea leaf coffee powder,spice powder
-
After Warranty Service:
-
Video technical support
-
Marketing Type:
-
Tea Bag Packing Machine
Quick Details
-
Function:
-
FILLING, Sealing, Packing Machine
-
Packaging Type:
-
Bags, Film, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Production Capacity:
-
30-60bags/mn
-
Weight (KG):
-
550
-
Voltage:
-
220V 50Hz or 110V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SENIT
-
Dimension(L*W*H):
-
1750*740*1950mm
-
Product Name:
-
er Paper Pouch Sachet Tea Bag Packing Machine
-
Usage:
-
Tea Powder Packing Machine
-
Bag type::
-
3 side sealing
-
Main function:
-
Automatic tea Filling Sealing Packing
-
Machine type:
-
Tea Powder Filling Packing Machine
-
Keywords:
-
Tea Bag Packing Machine
-
Packing Material:
-
Tea Powder,Tea leaf coffee powder,spice powder
-
After Warranty Service:
-
Video technical support
-
Marketing Type:
-
Tea Bag Packing Machine
Product Description

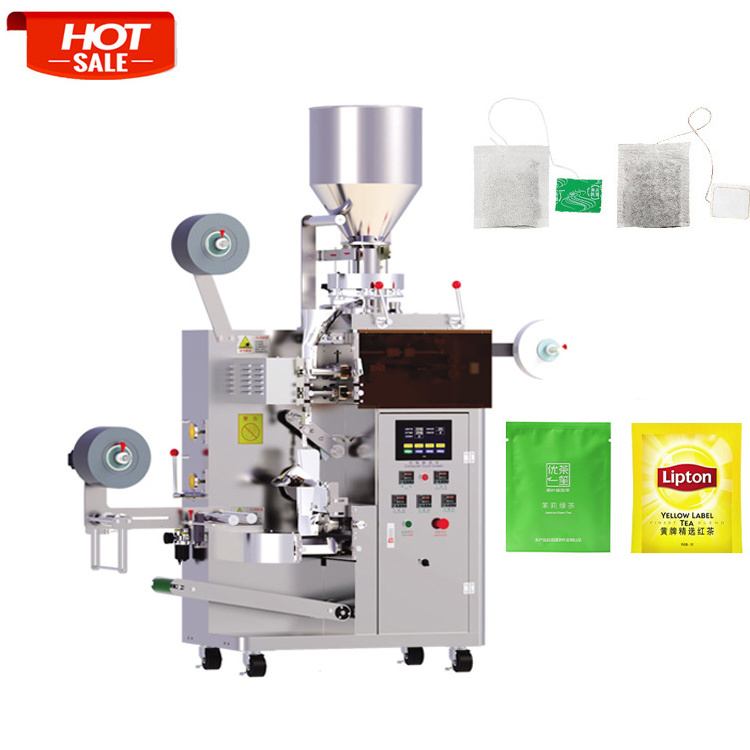

Automatic Filter Paper Pouch Sachet Tea Bag Packing Machine with Thread Line
The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials such as: tea,herbal tea, health tea grass-root type and so on.
Features:
1.Inner and outer bag's film drawing is controlled by the stepper motor, stable bag length and accurate positioning.
2.The temperature controller is adjusted by PID to make the temperature control more accurate.
3.Overall machine movement is controlled by PLC, with human-machine interface display, ensure health of products
4.Packing material：filter paper, thread, composite membrane and labels.
1.Inner and outer bag's film drawing is controlled by the stepper motor, stable bag length and accurate positioning.
2.The temperature controller is adjusted by PID to make the temperature control more accurate.
3.Overall machine movement is controlled by PLC, with human-machine interface display, ensure health of products
4.Packing material：filter paper, thread, composite membrane and labels.
Specification
The specification only for reference,the weight and the bag width is optional.
If this specification can not meet your request, pls tell us your bags size and which bags shape do you sealing ,we will choose the suitable model for you.
If this specification can not meet your request, pls tell us your bags size and which bags shape do you sealing ,we will choose the suitable model for you.
|
Product Name
|
Automatic Tea Bag Packing Machine
|
|
Measuring range
|
3 - 10 g
|
|
Inner bag size
|
( L ) ：50 - 70 mm ( W ) ：45 - 80 mm
|
|
Outer bag size
|
( L ) ：80 - 120mm ( W ) ：75 - 95 mm
|
|
Packing Speed
|
30-40 bags / min
|
|
Dimension ( L*W*H )
|
1750*740*1950mm
|
|
Weight
|
550 kg
|
|
Total Power
|
AC220V/ 50Hz /3.7kw
|
The Automatic tea bag packing machine also can be customized according to your request.
Welcome to contact with us.
