Quick Details
-
Brand Name:
-
Focusens
-
Model Number:
-
FAST
-
Product name:
-
Liquid Level Sensor
-
Type:
-
Float switch
-
Output signal:
-
I/O , 0-10V,4-20mA,RS485 on request
-
Installation:
-
Vertical,M10
-
Depth:
-
45~180 mm
-
Temperature range:
-
-20 ~ +80°C
-
Application:
-
Level control, water tank
-
Stem Material:
-
Stainless Steel,plastic PVC,Nylon
-
Detection:
-
Shortage or full water
-
Float Material:
-
PP, Stainless steel
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Focusens
-
Model Number:
-
FAST
-
Product name:
-
Liquid Level Sensor
-
Type:
-
Float switch
-
Output signal:
-
I/O , 0-10V,4-20mA,RS485 on request
-
Installation:
-
Vertical,M10
-
Depth:
-
45~180 mm
-
Temperature range:
-
-20 ~ +80°C
-
Application:
-
Level control, water tank
-
Stem Material:
-
Stainless Steel,plastic PVC,Nylon
-
Detection:
-
Shortage or full water
-
Float Material:
-
PP, Stainless steel

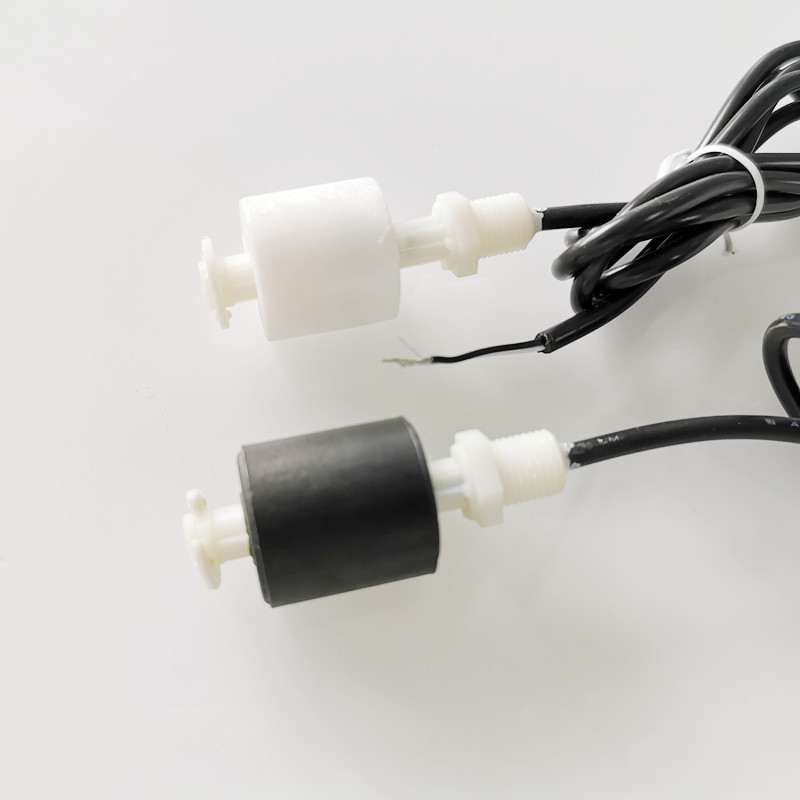

The level switches, also known as level sensors, are instruments that work with an electric contact (reed switch) and a magnetic float. The movement of the float opens or closes the electrical contact. With them, it is possible to have versatile low cost solutions for your automation.
There are Normally Open (NO) and Normally Closed (NC) types.
Normally open (NO) float switch: The electrical circuit within the switch remains open when the switch is at the bottom and closed in the 'up' position. So, the switch is open with gravity pulling it down and closes as the liquid level rises to the pre-set level.
Normally closed (NC) float switch: The electrical circuit within the switch remains closed when the switch is at the bottom and open in the 'up' position. So, the switch is closed with gravity pulling it down and opens as the liquid level rises to the pre-set level.
|
Features
|
|
|
|
|
||||
|
1
|
The compact design requires little space.
|
|
|
|
||||
|
2
|
The highly reliable reed switch contacts have a high repeated accuracy and long service life.
|
|
|
|
||||
|
3
|
No adjustment after installation is required, and little maintenance is needed.
|
|
|
|
||||
|
4
|
The float-type configuration accommodates non-conductive liquids.
|
|
|
|
||||
|
5
|
The stable design exhibits little irregularity of movement.
|
|
|
|
||||
|
6
|
It is lower-priced than other types.
|
|
|
|
||||
Flexible
customize the product specifications and shape to match your applications.
