Quick Details
-
Number of connections:
-
9P
-
Protection Level:
-
IP20
-
Work temperature:
-
-20~+70℃
-
Mounting:
-
35mm DIN/screw mounting
-
Rated Current:
-
1A
-
Rated Voltage:
-
24VDC
-
Overpressure category:
-
2
-
Pollution level:
-
2
-
Withstand voltage:
-
500VAC 1min
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SUPU
-
Model Number:
-

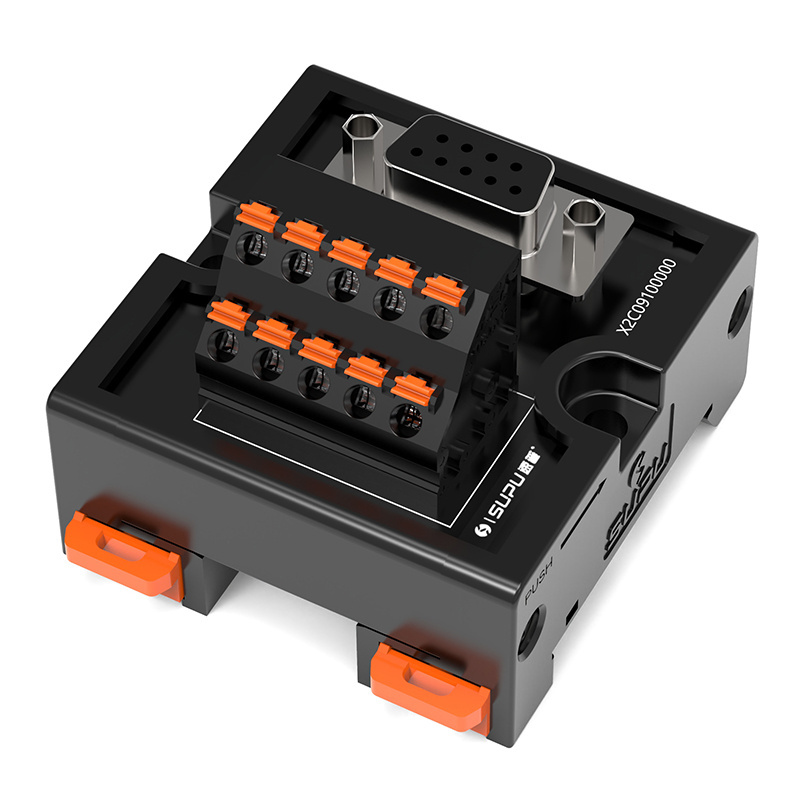

X2-C09P-NZ
-
Number of connections:
-
9P
-
Protection Level:
-
IP20
-
Work temperature:
-
-20~+70℃
-
Mounting:
-
35mm DIN/screw mounting
-
Rated Current:
-
1A
-
Rated Voltage:
-
24VDC
-
Overpressure category:
-
2
-
Pollution level:
-
2
-
Withstand voltage:
-
500VAC 1min
Products Description
|
1.Basic Information
|
|
|
SUPU ID
|
X2-C09P-NZ
|
|
Number of connections
|
9P
|
|
Protection Level
|
IP20
|
|
Work temperature
|
-20~+70℃
|
|
Mounting
|
35mm DIN/mounting screw
|
|
2.IEC Data
|
|
|
Rated Current
|
1A
|
|
Rated Voltage
|
24V DC
|
|
Overvoltage category
|
Ⅱ
|
|
Pollution degree
|
2
|
|
Withstand voltage
|
500VAC 1min
|
|
Insulation Resistance
|
500MΩ/500VDC
|
|
Wire Range
|
28-16AWG
|
|
Stripping length
|
9-10mm
|
Details Images
