Quick Details
-
Model Number:
-
8000W, Single Shaft Hub Motor
-
Brand Name:
-
QS Motor,QSMOTOR
-
Product name:
-
273 e-car hub motor
-
Efficiency:
-
85%-91%
-
structure:
-
Permanent Magnet
-
Usage:
-
BOAT, Car, Electric Bicycle
-
Continuous current:
-
60-200A
-
Waterproof Grade:
-
IP54
-
Certification:
-
CCC, ce
-
Output Power(W):
-
8000W
-
Torque:
-
330N.m
Quick Details
-
Voltage:
-
48V - 144V
-
Style:
-
gearless
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
8000W, Single Shaft Hub Motor
-
Brand Name:
-
QS Motor,QSMOTOR
-
Product name:
-
273 e-car hub motor
-
Efficiency:
-
85%-91%
-
structure:
-
Permanent Magnet
-
Usage:
-
BOAT, Car, Electric Bicycle
-
Continuous current:
-
60-200A
-
Waterproof Grade:
-
IP54
-
Certification:
-
CCC, ce
-
Output Power(W):
-
8000W
-
Torque:
-
330N.m
Products Description
|

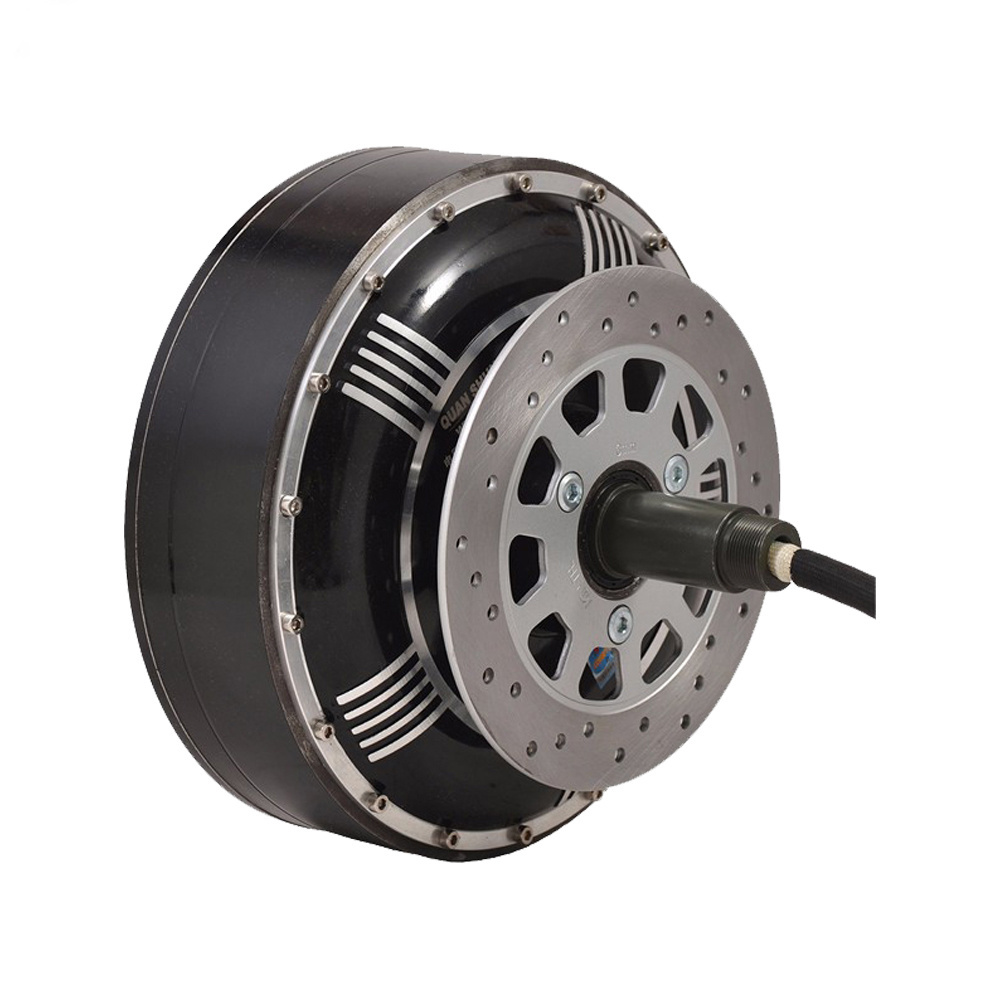

Promotional Various Durable Using QS Motor E-car 273 8000W 50H V2 Electric car brushless dc hub motor
|
For 273 E-Car wheel hub motor, it could be used for electric scooter, tricycle, light car.
273 motor means the diameter of iron ring/hoop is 273mm, for all 273 motor, e.g. 13inch,14inch,16inch,17inch 273 e-scooter hub motor,
273 spoke hub motor, 13inch,14inch,16inch.17inch 273 single shaft hub motor, 273 E-car Hub motor etc., the configuration & performance is the same as 13inch 273 Hub Motor.
For E-Car hub motor, we can also provide 205 type, you can refer to below hyperlink for the detailed:
1. Key Features
1). Simplify to make a electric-car. Gearbox, transmission shaft, clutch are no need. Which save space.
2). It could be installed in wheels, and easy to be hybrid car.
3). Easily to make 4-wheel drive, which could spot turn.
4). Support regenerative braking
5). High efficiency: 85~92%
2. QS Motor 273 3000-8000W E-car hub motor List
P.s.: 1. Above quotation base on 273 electric car wheel hub motor, 48V~144V.
2. Above configuration is suggested for mass production,
for EV enthusiast, V2 & V3 motor could be over-voltaged to gain more speed/performance (customizable).
3. Water Cooled Hub Motor, 12kW 70H,8kW Dual 50H Stator E-car Hub Motor could be customized (hand-made).
4. The default Disc is moped standard, PCD3*80mm, it could be PCD 4X114.3mm, M12. Extra 135.0/piece
3. Production Description
QS Motor Specification (e.g. 8000W 273 50H V2)
Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor,QSMOTOR
Motor Design: Singleh axle without rim
Matched Wheel: ≥14inch Car Wheel, PCD customizable, CB ≥60mm (PCD 5*112mm, CB60mm as default)
Magnet Height: 50mm, 28 pole pairs
Stator: Aluminmum Core
Rated Power: 8000W (20kW peak in few seconds)
Rated Voltage: 96V as default (48V-144V, optional)
Speed: 120KPH as default (24-120KPH, optional)
Max Torque: approx 330N.m
Max Efficiency: 86-88%
Continuous Battery Current: 104A (96V)
Peak Battery Current: 210A (96V)
Thermic Probe: KTY83/122 (as default, optional)
Working Temperature: 70-120℃ , peak 150 ℃
Brake type: Disc brake, PCD3*80mm-M8, CB 58mm(as default)
Dual Hall Set with waterproof connectors
16mm² Cross Section of Phase Wire (not include insulation layer)
Hall Sensor Phasing angle: 120 degree
Waterproof Grade: IP54
Color: Black
N.W./G.W.: 23.0kg/24.7kg Package Dimension: 43cm*43cm*34cm/piece
4.Differences between V2 and V3
The raw materials are alike, main difference in inner construction.
For V3 (16 Pole Pairs): stronger configuration than V2, wider lamination, more cooper wire /thicker Cross-sectional area section, bear more current in usage.
Higher torque at same current, lower temperature rise, more stable in high current.
Magentic Steel: V3 is wider and thicker.
Efficiency: 86~88%(V2) 88~92%(V3); Thus, V3 have best performance.
PS. for the same V1 steel/iron stator motors, QS Motor performance better on lifetime & stability becasue of good raw material. So the cost is more than normal hub motor in the market.
5.Drawing
6. How to find suitable hub motor
To customized a suitable motor, could you pls. inform below points:
1.E-scooter, E-tricycle or E-car, tire model?
2.Volt and wattage of motor, Speed(kV), and torque/climb angle ?
3.Your vehicle weight and loading weight?
4.Lithium or lead-acid Battery?
After confirming the motor, we could try to offer suitable motor kits.
Motor matched Controller
Battery
Charger
Speedometer
Throttle
Brake System
DC-DC converter, etc.
