Quick Details
-
Output Speed:
-
245rpm
-
Warranty:
-
1 year
-
Weight (KG):
-
135
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CMR
-

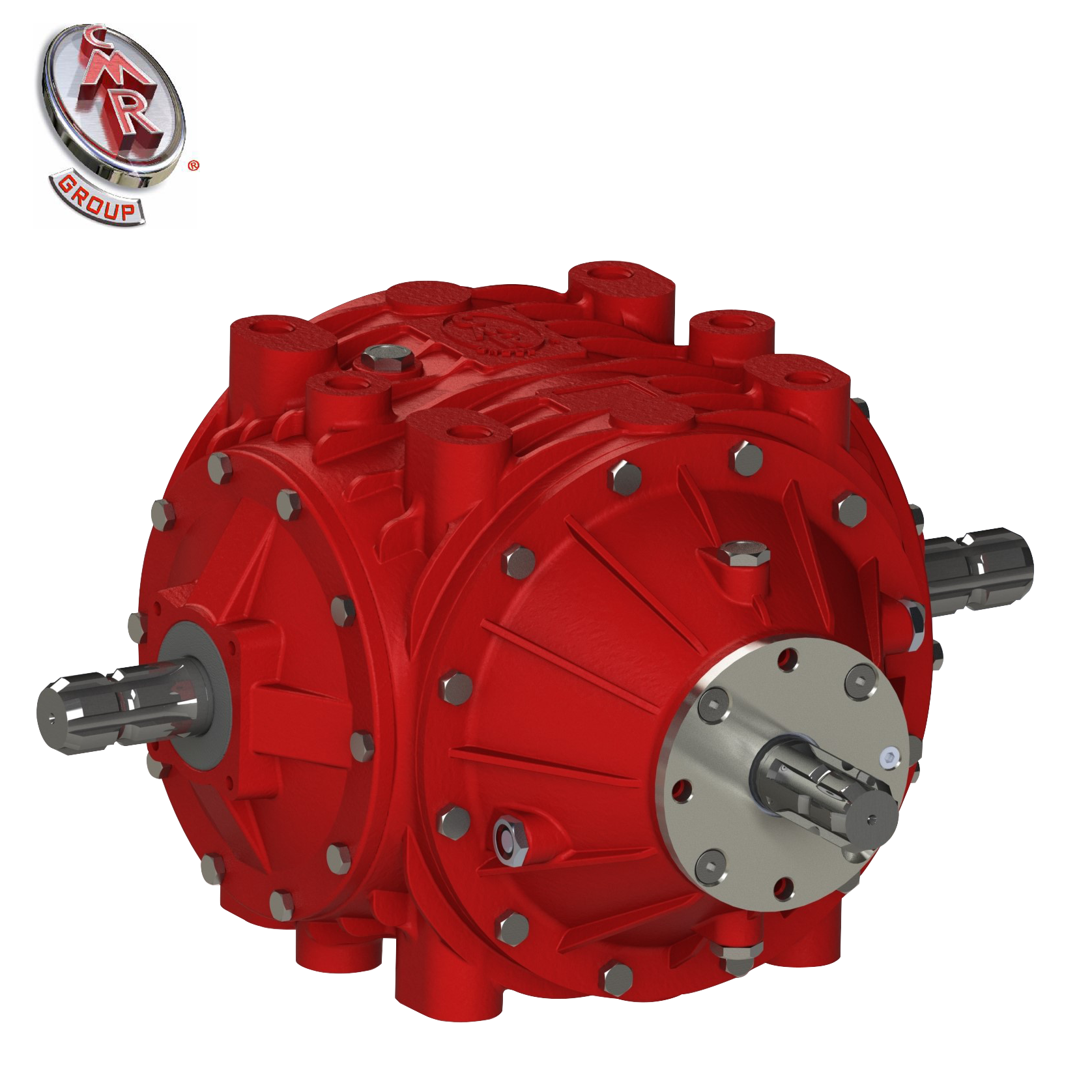

Product name:
-
Agricultural Gearbox
-
Housing Material:
-
Cast iron
-
Gear material:
-
20CrMnTi Steel
-
Shaft material:
-
20CrMnTi Steel
-
Toothing:
-
Gleason Straight Gear
-
Ratio:
-
2.2:1
-
Output torque:
-
5838
-
Input torque:
-
2635
-
Fit for:
-
Rotary tillers
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
5838N.m
-
Input Speed:
-
540rpm
-
Output Speed:
-
245rpm
-
Warranty:
-
1 year
-
Weight (KG):
-
135
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CMR
-
Product name:
-
Agricultural Gearbox
-
Housing Material:
-
Cast iron
-
Gear material:
-
20CrMnTi Steel
-
Shaft material:
-
20CrMnTi Steel
-
Toothing:
-
Gleason Straight Gear
-
Ratio:
-
2.2:1
-
Output torque:
-
5838
-
Input torque:
-
2635
-
Fit for:
-
Rotary tillers
Products Description
Application:
1. We can provide European after-sales service.
2. Large diameter gear shaft, large size gear .
3. The free wheel can be restored after a maximum turn of 30 degrees.
Small rotary tiller
Rotary tiller
Main features:
2. Large diameter gear shaft, large size gear .
3. The free wheel can be restored after a maximum turn of 30 degrees.
|
Double Exit Gearbox
|
|
|
|
|
|
|||||
|
Model
|
Ratio
|
Input (rpm)
|
Kw (HP)
|
Input torque (N.M)
|
Output torque (N.m)
|
|||||
|
MT90
|
1.56:1
|
540
|
51.1/70
|
911
|
1423
|
|||||
|
|
2:1
|
720
|
68/92.5
|
902
|
1409
|
|||||
|
T45H
|
1.86:1
|
540
|
45/61.2
|
796
|
1478
|
|||||
|
|
1.9:1
|
720
|
59/80
|
783
|
1453
|
|||||
|
|
|
1000
|
78/106
|
745
|
1383
|
|||||
|
T55H
|
2.46:1
|
720
|
43/58.5
|
570
|
1385
|
|||||
|
|
1.9:1
|
1000
|
58/79
|
554
|
1345
|
|||||
|
MT105
|
1.56:1
|
540
|
75/102
|
1326
|
2070
|
|||||
|
|
|
720
|
96/130.6
|
1273
|
1989
|
|||||
|
MT150
|
1.93:1
|
540
|
75/102
|
1326
|
2564
|
|||||
|
|
|
720
|
96/130.6
|
1273
|
2462
|
|||||
|
|
|
1000
|
130/176.8
|
1242
|
2400
|
|||||
|
|
2.46:1
|
720
|
71.5/97.2
|
948
|
2334
|
|||||
|
|
|
1000
|
98.5/134
|
941
|
2316
|
|||||
|
MT152
|
1.57:1
|
540
|
109/148.2
|
1928
|
3012
|
|||||
|
|
|
1000
|
197/268
|
1881
|
2940
|
|||||
|
|
2.2:1
|
540
|
97/132
|
1715
|
3695
|
|||||
|
|
2.46:1
|
720
|
128/174
|
1698
|
3657
|
|||||
|
|
|
1000
|
175/238
|
1671
|
3600
|
|||||
|
MT162
|
2.2:1
|
540
|
149/202.6
|
2635
|
5835
|
|||||
|
|
|
1000
|
269/365.8
|
2569
|
5688
|
|||||
