Quick Details
-
Model Number:
-
RBM40HV
-
payment terms:
-
L/C T/T west union
-
Motor:
-
1.5 kw
-
Net Weight:
-
425kg
-
product name:
-
tube bending machine
-
Application:
-
profile processing
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Metform, Metform
-
Weight (KG):
-
720
-
Model Number:
-
RBM40HV
-
payment terms:
-
L/C T/T west union
-
Motor:
-
1.5 kw
-
Net Weight:
-
425kg
-
product name:
-
tube bending machine
-
Application:
-
profile processing
Products Description
Metform round bending machine can be combined with various mold wheels in order to meet various processing demands.

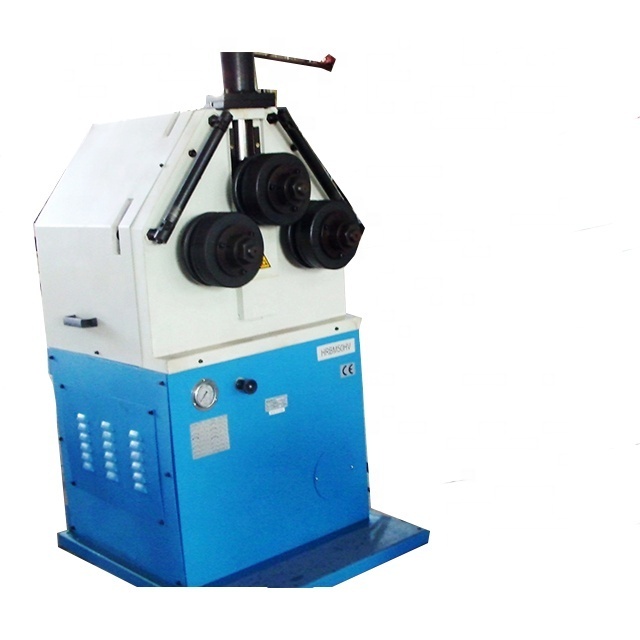

Pipe and Profile roll bending machine HRBM65HV is a versatile, economical yet powerful universal profile bender. It is easy to operate and is well suited for bending angle, pipe, tube, aluminum extrusions and other section bars.
Casting machine frame
Rollers are made of alloy steel, hardened and grounded.
Hardened precision threaded shafts, made of alloy steel
Dual lateral guides
Rollers are driven by motor
Upper roll is movable and screw up and down manually.
Pedal switch operating
Working in both vertical and horizontal way
Standard Accessory: 1 set of general purpose rollers, composite type and suitable for Angle, flat and Rectangular tubes.
Special Accessories: Rollers for round pipe (upon request but not included in the price)
Casting machine frame
Rollers are made of alloy steel, hardened and grounded.
Hardened precision threaded shafts, made of alloy steel
Dual lateral guides
Rollers are driven by motor
Upper roll is movable and screw up and down manually.
Pedal switch operating
Working in both vertical and horizontal way
Standard Accessory: 1 set of general purpose rollers, composite type and suitable for Angle, flat and Rectangular tubes.
Special Accessories: Rollers for round pipe (upon request but not included in the price)
Dia. Of roll Shaft φ65 (mm)
Motor Power: 2.5 kW
Spindle speed: 9.3 r/min
Packing Size: 1250x1150x1800mm
N.W./G.W. 720/920 KG
Bending capacity as below
Motor Power: 2.5 kW
Spindle speed: 9.3 r/min
Packing Size: 1250x1150x1800mm
N.W./G.W. 720/920 KG
Bending capacity as below
|
Model
|
RBM50
|
RBM50HV
|
HRBM50HV
|
RBM40HV
|
HRBM40HV
|
|||
|
Dia. of rollers
|
50mm
|
|
|
40mm
|
|
|||
|
Power
|
2.2 kW 3HP
|
|
|
1.5kW/2HP
|
|
|||
|
Spindle speed
|
9r/min
|
|
|
9.3r/min
|
|
|||
|
Packing size
|
100x82x155
|
100x82x153
|
122x82x180
|
140x95x134
|
134x93x185
|
|||
|
N.W./G.W.
|
450/520
|
460/537
|
515/650
|
425/495
|
490/586
|
|||
|
Capacity
|
Size
|
Min Dia.
|
|
Size
|
Min Dia.
|
|||
|
Solid Rectangular
|
60x10
40x10 |
500
650 |
|
50x1020x6
|
600800
|
|||
|
Rectangular tube
|
70x50x3
50x40x3 |
1200
800 |
|
50x25x2.540x20x2
|
8001000
|
|||
|
Solid Square
|
35x3520x20
|
600
780 |
|
30x3010x10
|
6501100
|
|||
|
Squre Tube
|
60x60x340x40x3
|
600
500 |
|
50x50x2.530x30x2
|
700800
|
|||
|
T-steel
|
60x7
50x5 |
750
700 |
|
50x630x3
|
600500
|
|||
|
C channel
|
80x45x665x40x5
|
650
550 |
|
60x40x630x15x4
|
600900
|
|||
|
Angle Iron
|
60x550x5
|
700
700 |
|
50x530x4
|
500500
|
|||
|
Flat Bar
|
100x1560x10
|
920
1150 |
|
60x2030x6
|
8001250
|
|||
|
Soild Round Bar
|
ø35ø30
|
600
650 |
|
ø30ø10
|
6501100
|
|||
