Quick Details
-
Model Number:
-
GG-2500
-
Dimension(L*W*H):
-
4500*1000*2570MM
-
Weight:
-
800 KG
-
Place of Origin:
-
Henan, China
-
Voltage:
-
380 V,Customized
-
Power:
-
1.5 Kw
-
Product name:
-
Date Jam Maker Tomato Paste Processing Line
-
Capacity:
-
1000kg/h
Quick Details
-
Machinery Capacity:
-
500-1000 kg/hour
-
Brand Name:
-
GELGOOG
-
Year:
-
2022
-
Model Number:
-
GG-2500
-
Dimension(L*W*H):
-
4500*1000*2570MM
-
Weight:
-
800 KG
-
Place of Origin:
-
Henan, China
-
Voltage:
-
380 V,Customized
-
Power:
-
1.5 Kw
-
Product name:
-
Date Jam Maker Tomato Paste Processing Line
-
Capacity:
-
1000kg/h
Product Description
Introduction of Tomato Paste Production Line

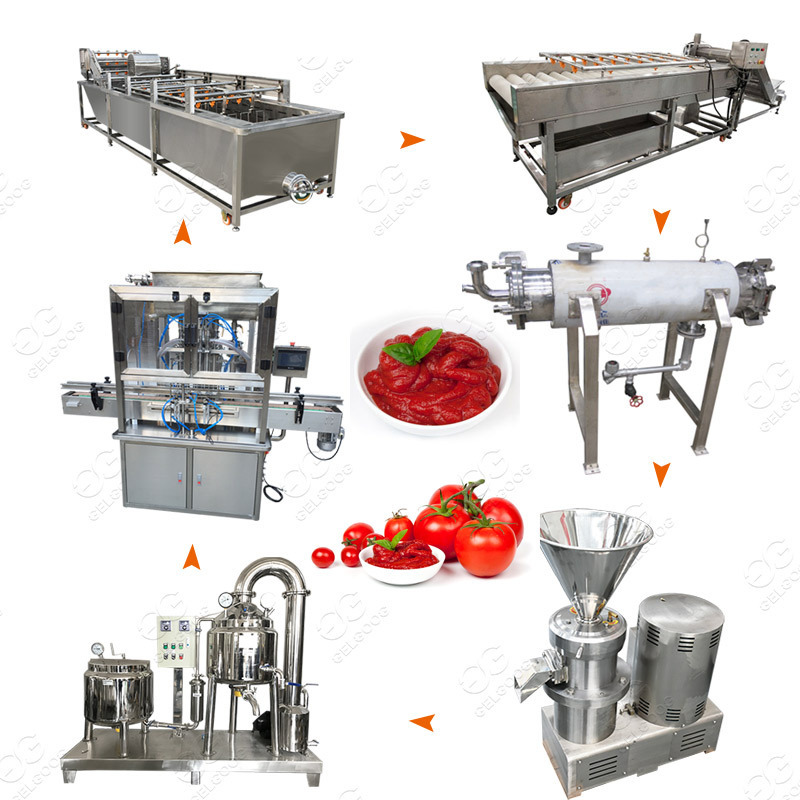

The production line of tomato paste processing line mainly includes tomato washing machine, crushing pump, preheat mold killing machine, double-pass beater, thickener, buffer tank and bottle filling machine.
Detailed Images
Machine Technical Data
|
No.
|
Equipment Name
|
Function
|
|
1
|
Picking Belt
|
Manually remove unqualified, worm-eye, and moldy tomatoes
|
|
2
|
Tomato Washing Machine
|
Under the action of bubbles and spray, the picked tomatoes are cleaned, mainly to remove the surface sediment
|
|
3
|
Tomato Crushing Machine
|
Crush the washed tomatoes to facilitate the later beating work
|
|
4
|
Tubular Preheater
|
Increase temperature of slurry to achieve preheating, inactivating enzymes and protecting color
|
|
5
|
Tomato Pulping Machine
|
Pitting and beating fruits after pre-cooking.
|
|
6
|
Buffer Tank
|
|
|
7
|
Concentrator
|
|
|
8
|
Tubular sterilizer
|
Sterilization of concentrated tomato paste
|
|
9
|
Finished tank
|
Ketchup cache after sterilization
|
|
10
|
Tomato Past Packing Machine
|
Ketchup packaging work
|
Important reminder:
1,The technical parameters are for reference only.
2,The product quotation is for reference only, It is based on the actual purchased model and configuration.
3,For more information, please call or consult customer service.
