Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-
19mm emergency stop switch
-
Mounting Hole Size:
-
19mm
-
Operation Type:
-
Latching
-
Switch Combination:
-
1NO1NC
-
Actuator Type:
-
Mushroom
-
Terminal type:
-
3 Pin terminals
-
Enclosure Material:
-
Brass nickel
-
LED Volt& Color:
-
Non-illuminated
-
Symbol:
-
NO
-
Connector Customized:
-
Acceptable
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
3A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-
19mm emergency stop switch
-
Mounting Hole Size:
-
19mm
-
Operation Type:
-
Latching
-
Switch Combination:
-
1NO1NC
-
Actuator Type:
-
Mushroom
-
Terminal type:
-
3 Pin terminals
-
Enclosure Material:
-
Brass nickel
-
LED Volt& Color:
-
Non-illuminated
-
Symbol:
-
NO
-
Connector Customized:
-
Acceptable

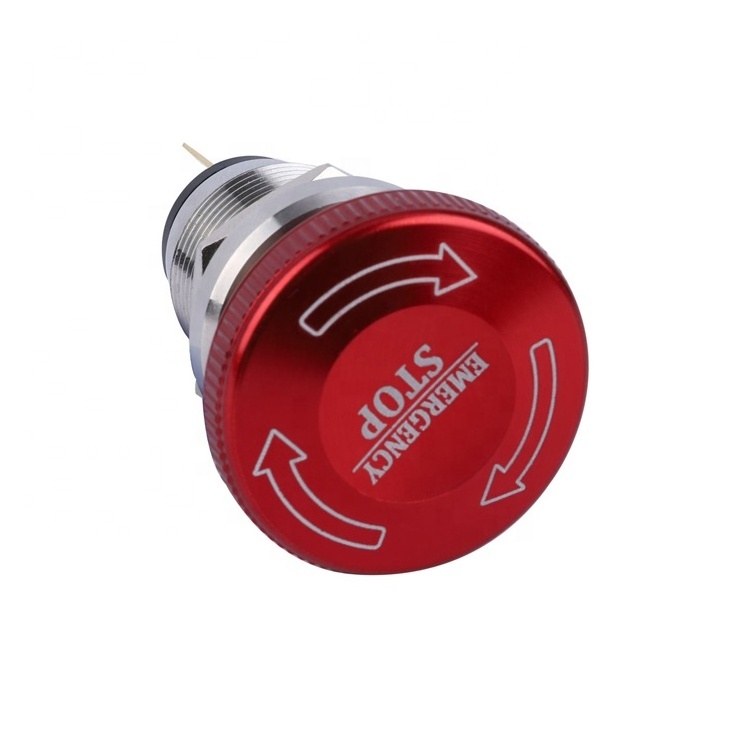

19mm Mushroom Emergency Stop Momentary NO NC Metal Push Button Switch
Product Description
| Product Name | Push Button Switch |
| Model | IB19J-ES11Z/N |
| Mounting Hole | 19mm |
| Operation Type | Latching |
| Switch Combination | 1NO1NC |
| Actuator Type | Mushroom |
| Terminal type | 3 Pin Terminals |
| Illuminanted or not | No |
| Led Voltage | / |
| Led Color |
/ |
| Illuminated Type | / |
| Enclosure Material | Brass nickel |
| Delivery Days | 1-3 days |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Customized symbol,colored housing or Connector | Acceptable and with fast shipping |
| Accessories | Nut, Rubber Gasket,Resistor |
| Order Confirm | / |
| Wiring Harness | / |
