Quick Details
-
Max. Spindle Speed (r.p.m):
-
1800 r.p.m
-
Max. Weight of Workpiece(kg):
-
1000
-
Spindle Bore(mm):
-
82 m'm
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5
-
Max. Turned Length (mm):
-
1000
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Z Axis)(mm):
-
1000 mm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2950*1520*1750
-
Brand Name:
-
SGSK
-
Model Number:
-
CAK6150V
-
Voltage:
-
220V/380V
-
Weight (KG):
-
2850
-
Marketing Type:
-
Hot Product 2020
-
Warranty of core components:
-
13 months
-
Machine Type:
-
Torno CNC Lathe Large spindle bore stepless speed change Numerical
-
Max.Swing over bed:
-
250mm
-
Max.Swing over cross slide:
-
395mm
-
X/Z axis travel:
-
X:300 Z:1000
-
Spindle nose:
-
A2-8
-
Spindle bore:
-
82/130(optional)
-
Bar capacity:
-
65
-
Max.Spindle speed:
-
1600
-
Chuck size:
-
250/380(optional)
-
Keyword:
-
Torno cnc
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
1000 mm
-
Year:
-
2021
-
Max. Spindle Speed (r.p.m):
-
1800 r.p.m
-
Max. Weight of Workpiece(kg):
-
1000
-
Spindle Bore(mm):
-
82 m'm
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5
-
Max. Turned Length (mm):
-
1000
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Z Axis)(mm):
-
1000 mm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2950*1520*1750
-
Brand Name:
-
SGSK
-
Model Number:
-
CAK6150V
-
Voltage:
-
220V/380V
-
Weight (KG):
-
2850
-
Marketing Type:
-
Hot Product 2020
-
Warranty of core components:
-
13 months
-
Machine Type:
-
Torno CNC Lathe Large spindle bore stepless speed change Numerical
-
Max.Swing over bed:
-
250mm
-
Max.Swing over cross slide:
-
395mm
-
X/Z axis travel:
-
X:300 Z:1000
-
Spindle nose:
-
A2-8
-
Spindle bore:
-
82/130(optional)
-
Bar capacity:
-
65
-
Max.Spindle speed:
-
1600
-
Chuck size:
-
250/380(optional)
-
Keyword:
-
Torno cnc

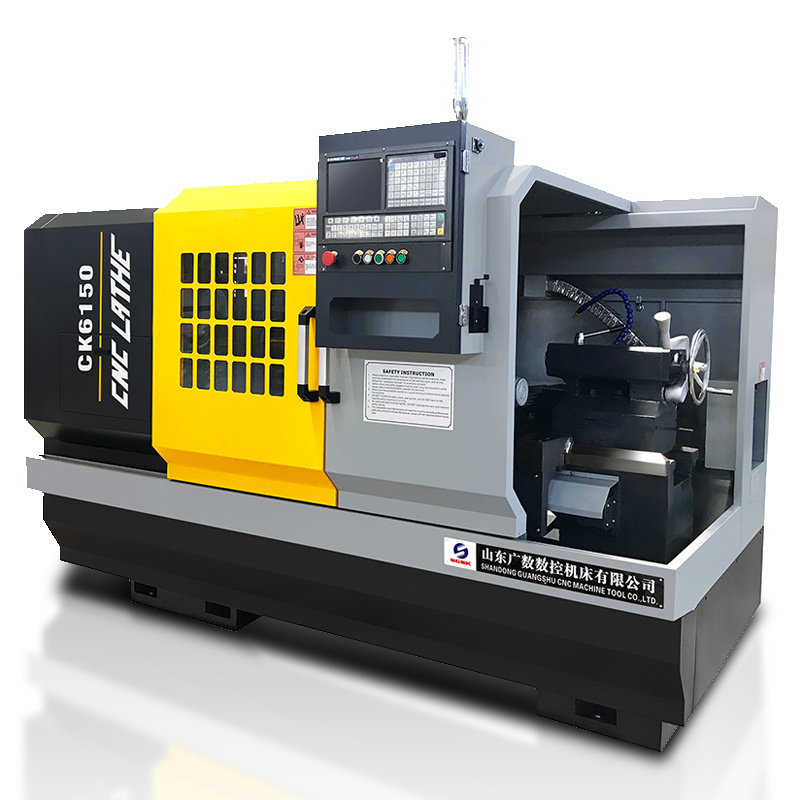

Torno CNC Lathe Large spindle bore stepless speed change Numerical
Products Description
Standard configuration
Electric turret 4 position
3-jaw manual chuck
Spindle through hole 80mm
Stepless speed
Optional configuration
Hydraulic chuck
Electric turret 6/8 position
Hydraulic tailstock
Double chuck as optional (130mm)
Main features
7.5KW servo drive main motor
Stepless speed grease spindle
One piece casting structure
400mm bed width
Electric turret 4 position
3-jaw manual chuck
Spindle through hole 80mm
Stepless speed
Optional configuration
Hydraulic chuck
Electric turret 6/8 position
Hydraulic tailstock
Double chuck as optional (130mm)
Main features
7.5KW servo drive main motor
Stepless speed grease spindle
One piece casting structure
400mm bed width
|
SPECIFICATIONS
|
Units
|
CAK6140V
|
CAK6150V
|
CAK6160V
|
|
Swing over bed
|
mm
|
400
|
500
|
600
|
|
Swing over cross slide
|
mm
|
180
|
250
|
395
|
|
Distance between centers
|
mm
|
1000/1500/2000/3000
|
1000/1500/2000/3000
|
1000/1500/2000/3000
|
|
Spindle bore
|
mm
|
82 (选配Opt. 130)
|
82 (选配Opt. 130)
|
82 (选配Opt. 130)
|
|
Spindle bore taper
|
-
|
公制Metric 90/1:20
|
公制Metric 90/1:20
|
公制Metric 90/1:20
|
|
Spindle nose type
|
-
|
A2-8(选配Opt.A2-11)
|
A2-8(选配Opt.A2-11)
|
A2-8(选配Opt.A2-11)
|
|
Spindle speed steps
|
-
|
无级变速Stepless
|
无级变速Stepless
|
无级变速Stepless
|
|
Spindle speed range
|
rpm
|
1800 (选配Opt. 800)
|
1800 (选配Opt. 800)
|
1800 (选配Opt. 800)
|
|
Turret/tool post
|
-
|
4工位电动刀架 Electric 4 position
|
4工位电动刀架 Electric 4 position
|
4工位电动刀架 Electric 4 position
|
|
Tool size
|
mm
|
25*25
|
25*25
|
25*25
|
|
X axis travel
|
mm
|
240
|
280
|
320
|
|
Z axis travel
|
mm
|
1000/1500/2000/3000
|
1000/1500/2000/3000
|
1000/1500/2000/3000
|
|
X axis rapid traverse
|
mm/min
|
6000
|
6000
|
6000
|
|
Z axis rapid traverse
|
mm/min
|
8000
|
8000
|
8000
|
|
Tailstock quill diameter
|
mm
|
75
|
75
|
75
|
|
Tailstock quill taper
|
-
|
MT5
|
MT5
|
MT5
|
|
Tailstock quill travel
|
mm
|
150
|
150
|
150
|
|
Main motor power
|
kw
|
7.5
|
7.5
|
7.5(选配Opt.11)
|
|
Coolant motor power
|
kw
|
0.125
|
0.125
|
0.125
|
|
Weight for 1000
|
kg
|
2500
|
2900
|
3200
|
|
Weight for 1500
|
kg
|
2900
|
3300
|
3500
|
|
Weight for 2000
|
kg
|
3300
|
3700
|
4000
|
|
Dimension for 1000
|
mm
|
2950*1700*1800
|
2950*1700*1800
|
2950*1800*1900
|
|
Dimension for 1500
|
mm
|
3650*1700*1800
|
3650*1700*1800
|
3650*1800*1900
|
|
Dimension for 2000
|
mm
|
4250*1700*1800
|
4250*1700*1800
|
4250*1800*1900
|
STEPLESS SPINDLE SPEED
1. Standard with stepless speed change.
2.Grease spindle.
2.Grease spindle.
SERVO MAIN MOTOR
China 7.5KW servo drive main motor
ONE PIECE CASTING STRUCTURE
Higher stability one-piece machine bed.
ELECTRIC TURRET 4 POSITION
Standard with electric 4 position turret.
Optional:electric turret 6/8 position.
Optional:electric turret 6/8 position.
3 JAW CHUCK
-Standard with 3-jaw manual chuck.
Optional: hydraulic chuck/tailstock,
Double chuck(130mm).
Optional: hydraulic chuck/tailstock,
Double chuck(130mm).
MANUAL TAILSTOCK
Standard withmanual tailstock.
Optional: Hydraulic tailstock.
Optional: Hydraulic tailstock.
CNC CONTROL SYSTEM
Standard:GSK controller.
Optional:Siemens,Fanuc,Syntec,Mitsubishi and others.
Optional:Siemens,Fanuc,Syntec,Mitsubishi and others.
BIG SPINDLE HOLE
82mm is standard,
105/130mm spindle hole are optional.
105/130mm spindle hole are optional.
400mm LATHE BED WIDTH
Guideway width 400mm.
LUBRICATION SYSTEM
Automatic lubrication device .
CE
High-pressure air guns and high-pressure water guns
Electrical Cabinet
Standard: DELIXI brand,
Optional: Schneider, Siemens .
Optional: Schneider, Siemens .
