Quick Details
-
Brand Name:
-
SZGOZIE
-
Model Number:
-
6*7.2/6*9/7*7/8*8
-
Product name:
-

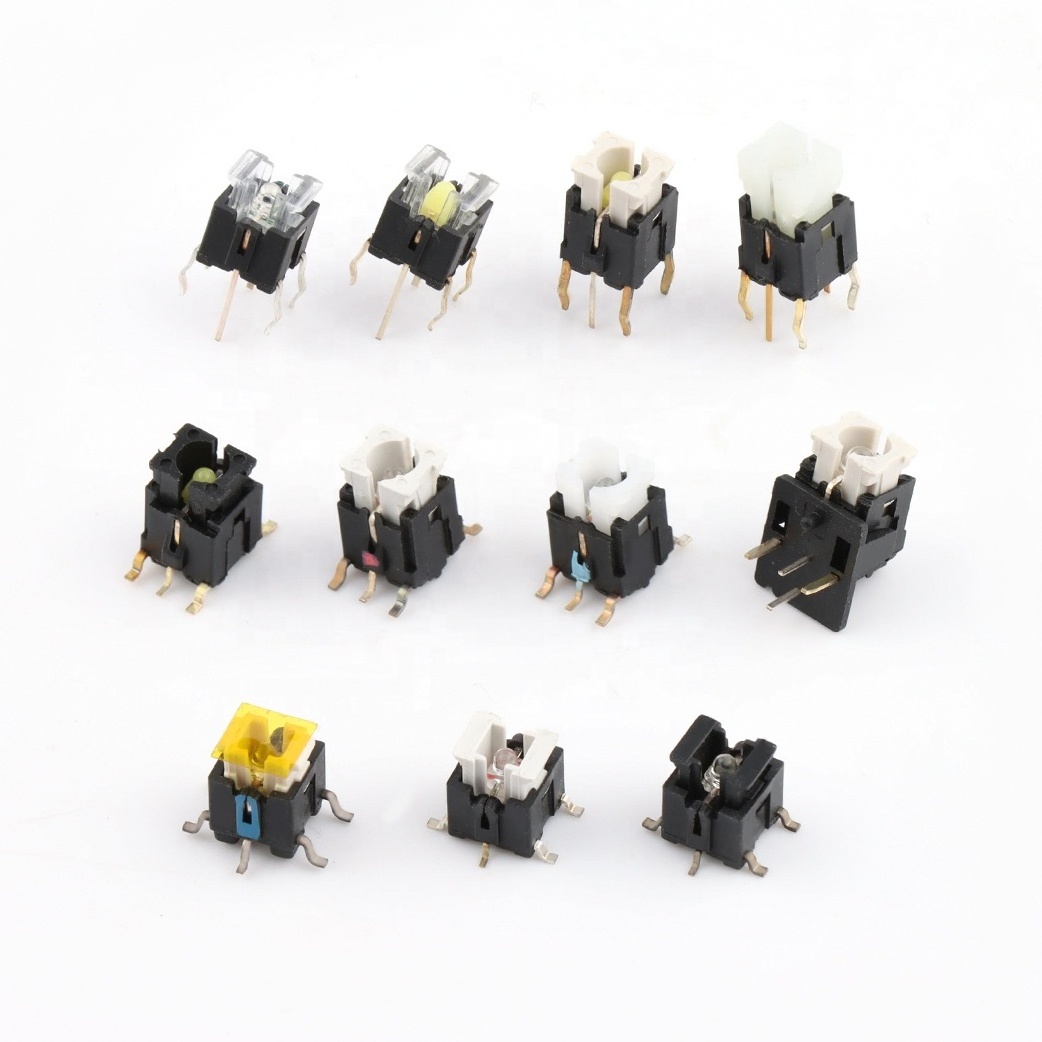

Illuminated Tactile Switch
-
Color:
-
red/yellow/green/blue/others
-
Material:
-
brass
-
Certificate:
-
CE ROHS
-
Shape:
-
Square
-
Mounting:
-
Soldering
-
Insulation Resistance:
-
100Mohm
-
Certification:
-
Rohs
Quick Details
-
Max. Current:
-
0.5A
-
Max. Voltage:
-
AC 250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZGOZIE
-
Model Number:
-
6*7.2/6*9/7*7/8*8
-
Product name:
-
Illuminated Tactile Switch
-
Color:
-
red/yellow/green/blue/others
-
Material:
-
brass
-
Certificate:
-
CE ROHS
-
Shape:
-
Square
-
Mounting:
-
Soldering
-
Insulation Resistance:
-
100Mohm
-
Certification:
-
Rohs
Specification
|
Product Name
|
Illuminated Tactile Switch
|
|
Item Number
|
Illuminated Tact Switch
|
|
Electronic Life
|
>50000CYCLES
|
|
Rated current
|
0.5A 12V
|
|
Contact Resistance
|
<50MΩ
|
|
Insulation Resistance
|
>100MΩ
|
|
Withstand Voltage
|
>1500V/MINUTE
|
|
Storage Temperature
|
-25°C~+85°C
|
Product Description
Tactile switches
are small compact switches designed to mount PCB boards, made to connect electronic components to form an electronic circuit. Tact switches are an electromechanical component intended for a PCB (printed circuit board) and a type of push button switch, as it needs to be pressed. PCB switches are mounted directly on to a PCB (Printed Circuit Board), surface mount PCB switches (SMD/SMT) sit flat on the PCB whereas a through-hole or ‘thru-hole’ PCB switches are inserted into a drilled hole on the printed circuit boards and soldered to pads on the opposite side. Tact switches are also referred to as Tactile switches, referring to the tactile function.
Size
:
12*12mm
/ 6*6mm / 4.5*4.5mm and so on.
More information about product,please
click here
.
Types of Tact Switches:
* Standard Tact Switch – another way to refer to all PCB, Tact switches.
* Horizontal and Vertical – indicates the position of the PCB, Tact switch as this may be a crucial part of your design.
* Illuminated Type – refers to Tact switches which can emit LED illumination.
* SMD Type – is referred to a mounting style and SMD is an abbreviation for ‘surface mount device’ type, means it will be placed directly on the surface of the PCB.
* Hinged lever-type – this type of Tact switch with the end of the switch slightly raised.
* Ultra subminiature type – refers to smaller Tact switches.
We can supply a range of tact switches which support momentary and latching push button functionality, support LED illumination or etching and stamping or select from a range of different caps.Please contact us , we can do more for you!
* Horizontal and Vertical – indicates the position of the PCB, Tact switch as this may be a crucial part of your design.
* Illuminated Type – refers to Tact switches which can emit LED illumination.
* SMD Type – is referred to a mounting style and SMD is an abbreviation for ‘surface mount device’ type, means it will be placed directly on the surface of the PCB.
* Hinged lever-type – this type of Tact switch with the end of the switch slightly raised.
* Ultra subminiature type – refers to smaller Tact switches.
We can supply a range of tact switches which support momentary and latching push button functionality, support LED illumination or etching and stamping or select from a range of different caps.Please contact us , we can do more for you!
