Quick Details
-
Brand Name:
-
Inventronics
-
Model Number:
-
EUD-480S10ADT EUD-480S280DT
-
Output Frequency:
-
50/60Hz
-
Product Name:
-

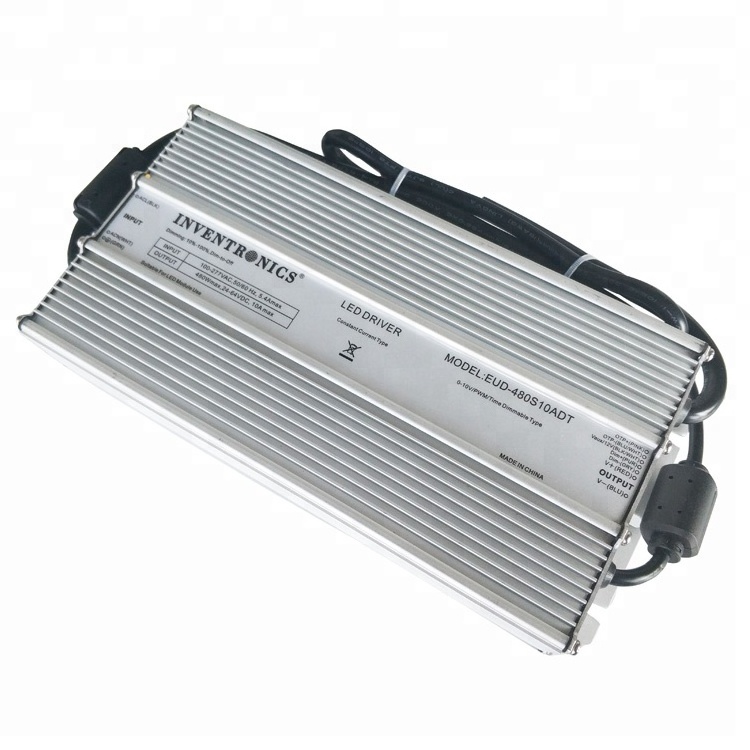

Inventronics 480W 10A Constant Current Fishing Light LED Driver
-
Input Voltage Range:
-
90~305Vac/ 127~300Vdc (110V 120V 220V 230V)
-
Certification:
-
CE, cU*, FCC etc.
-
Size(inch):
-
10.32" * 4.93" * 1.72" (262 * 125 * 43.5mm) 2650g
-
IP Rating:
-
IP67 ultra waterproof & rainproof & dustproof & explosion-proof
-
Warranty:
-
5 to 7 Years
-
Efficiency:
-
94% - 95% ultra high efficiency
-
Diming:
-
0-10V/PWM/Timer Dimmable (3 Timer Modes, Isolated design)
-
Features:
-
Input Surge Protection: 6kV line-line, 10kV line-earth, dim-to-off
-
Application:
-
high bay, high mast, fishing and sport lights, LED grow light
-
Luminous Efficacy(lm/w):
-
150
Quick Details
-
Warranty(Year):
-
5-Year
-
Product Weight（kg）:
-
2.7
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Inventronics
-
Model Number:
-
EUD-480S10ADT EUD-480S280DT
-
Output Frequency:
-
50/60Hz
-
Product Name:
-
Inventronics 480W 10A Constant Current Fishing Light LED Driver
-
Input Voltage Range:
-
90~305Vac/ 127~300Vdc (110V 120V 220V 230V)
-
Certification:
-
CE, cU*, FCC etc.
-
Size(inch):
-
10.32" * 4.93" * 1.72" (262 * 125 * 43.5mm) 2650g
-
IP Rating:
-
IP67 ultra waterproof & rainproof & dustproof & explosion-proof
-
Warranty:
-
5 to 7 Years
-
Efficiency:
-
94% - 95% ultra high efficiency
-
Diming:
-
0-10V/PWM/Timer Dimmable (3 Timer Modes, Isolated design)
-
Features:
-
Input Surge Protection: 6kV line-line, 10kV line-earth, dim-to-off
-
Application:
-
high bay, high mast, fishing and sport lights, LED grow light
-
Luminous Efficacy(lm/w):
-
150
Inventronics High Power Waterproof Fishing Light Power Supply 400W 450W 480W LED Driver
220Vac CC LED Driver
26-320W CC LED Driver
Potentiometer AOC CC
Dip-switch AOC CC
Waterproof CV
220V 0-10V PWM Timer 220V 110V Dimmable 7 Years Warranty IP67 300W+ High Power CC DALI LED Driver
10 Years Guarantee 380Vac+ High Voltage Input UFO Round Shape CC Internal Use CC Dimmable Programmer SPD
Features:
• Ultra High Efficiency (Up to 95%)
• Full Power at Wide Output Current Range (Constant Power)
• Thermal Sensing and Protection for LED Module
• 0-10V/PWM/Timer Dimmable (3 Timer Modes, Isolated design)
• Dim-to-Off with Standby Power ≤ 0.5 W
• Output Lumen Compensation
• Input Surge Protection: 6kV line-line, 10kV line-earth
• All-Around Protection: OVP, SCP, OTP
• Waterproof (IP67) and U* Dry / Damp / Wet Location
• SELV Output
• TYPE HL, for use in a Class I, Division 2 hazardous
(Classified) location
• 7 Years Warranty
Description:
The EUD-480SxxxDT series is a 480W, constant-current, programmable LED driver that operates from 90-305 Vac input with excellent power factor. Created for many lighting applications including high bay, high mast, aquaculture and sport, it provides a dim-to-off mode with low standby power. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.
Models:
|
Output
Current Range |
Full-Power
Current Range (1) |
Default
Output Current |
Input
Voltage Range(2) |
Output
Voltage Range |
Max.
Output Power |
Typical
Efficiency (3) |
Power Factor | Model Number | |
| 120Vac | 220Vac | ||||||||
| 0.105-1.40A | 1.05–1.40A | 1.4 A |
90~305Vac/
|
171 ~ 457Vdc | 480W | 95.0% | 0.99 | 0.96 | EUD-480S140DT |
| 0.210-2.80A | 2.10–2.80A | 2.8 A |
90~305Vac/
|
86 ~ 228Vdc | 480W | 94.0% | 0.99 | 0.96 | EUD-480S280DT |
| 0.315-4.20A | 3.15–4.20A | 4.2 A |
90~305Vac/
|
57 ~ 152Vdc | 480W | 94.5% | 0.99 | 0.96 | EUD-480S420DT |
| 0.435-5.60A | 4.35–5.60A | 5.6 A |
90~305Vac/
|
43 ~ 110Vdc | 480W | 94.0% | 0.99 | 0.96 | EUD-480S560DT (4) |
| 0.750-10.0A | 7.50–10.0A | 10.0 A |
90~305Vac/
|
24 ~ 64Vdc | 48 0W | 94.0% | 0.99 | 0.96 | EUD-480S10ADT (4) |
Notes:
(1) Output current range with constant power at 480W
(2) U*, FCC certified input voltage range: 100-277Vac or 127-300Vdc; otherwise: 100-240Vac or 127-250Vdc.
(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) SELV Output
