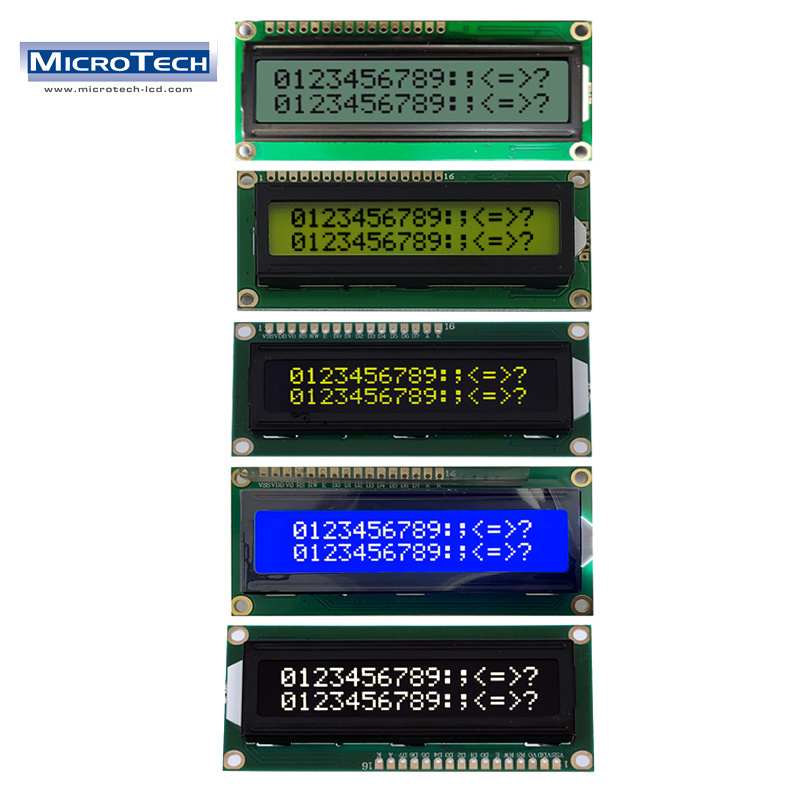

lcd 1602 i2c 16x2 dot matrix display module COB FSTN MPU interface black Yellow green LCD module

lcd 1602 i2c 16x2 dot matrix display module COB FSTN MPU interface black Yellow green LCD module

FOB Reference Price: Get Latest Price

≥10 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Microtech

Display Character:: 16 character X 2 line

Character Font:: 5X8dors+cursor

Display color-Display background color:: FSTN, Black-White

Polarize mode:: Negative , Transmission

Viewing angle:: 6:00

Display duty:: 1/16

Driving bias:: 1/5

Character Generator ROM (CGROM):: 8320 bits (192 characterX5X8 dots) &(32 characterX5X10 dots)

Character Generator RAM (CGRAM):: 64X8 bits (8 charactersX5X8 dots)

Display Data RAM (DDRAM):: 40X8 bits (80 characters max)

Quick Details

Type:: COB

Display Size:: 16x2

Supplier Type:: factory

Place of Origin:: Guangdong, China

Brand Name:: Microtech

Display Character:: 16 character X 2 line

Character Font:: 5X8dors+cursor

Display color-Display background color:: FSTN, Black-White

Polarize mode:: Negative , Transmission

Viewing angle:: 6:00

Display duty:: 1/16

Driving bias:: 1/5

Character Generator ROM (CGROM):: 8320 bits (192 characterX5X8 dots) &(32 characterX5X10 dots)

Character Generator RAM (CGRAM):: 64X8 bits (8 charactersX5X8 dots)

Display Data RAM (DDRAM):: 40X8 bits (80 characters max)

lcd 1602 i2c 16x2 dot matrix display module COB FSTN MPU interface black Yellow green LCD module

Specification

Display Specification
Display Character: 16 character X 2 line Character Font:5X8dors+cursor
Display color-Display background color : FSTN, Black-White
Polarize mode:Negative , Transmission
Viewing angle: 6:00
Display duty: 1/16
Driving bias: 1/5
Character Generator ROM (CGROM): 8320 bits (192 characterX5X8 dots) &(32 characterX5X10 dots)
Character Generator RAM (CGRAM): 64X8 bits (8 charactersX5X8 dots)
Display Data RAM (DDRAM) :40X8 bits (80 characters max)

Mechanical characteristics (Unit: mm)
Extenal dimension: 80X36X13
View area : 64.5X14.6Character font: 5X8 dots + cursor Character size: 2.9X5.15
Dots size:0.54X0.6
Character pitch: 3.52X5.85

Weight： g
POWER： +5V

Product Description

Related Types and Customized Services

TFT LCM Module

Standard and custom make from 0.95" TFT to 27.0" TFT

Resistive Touch Panel and Capacitive Touch Panels
Standard and custom design Resistive and Capacitive Touch Panels from 1.44" to 65.0"

TFT Module with Capacitive Touch Assembly
Standard and custom design Capacitive Touch CTP+TFT module from 1.44" to 19.0"

TFT Controller Board
Standard and custom make TFT Driving Board from 2.4" to 13.3"

Raspberry Pi 4B and TFT Display Kits
Development PCBA Board with Embeded System, Support OS Android, Linux,Windows

TFT Display for iPhone, iPad, Samsung 3G Android Smart Phone, Tablet PC
Customise Resistive and Capacitive Touch Panels as
you requirements Customise AG, AR, AF, AS, Cover lens
Add NTSC, PAL, VGA, HDMI Conversion Board and T-Con Board
Custmise the luminance of LED backlight for particular models,FPC Length, Sunlight Readable
Please contact us to send your engineering request
