Quick Details
-
Brand Name:
-
T-MUX
-
Model Number:
-

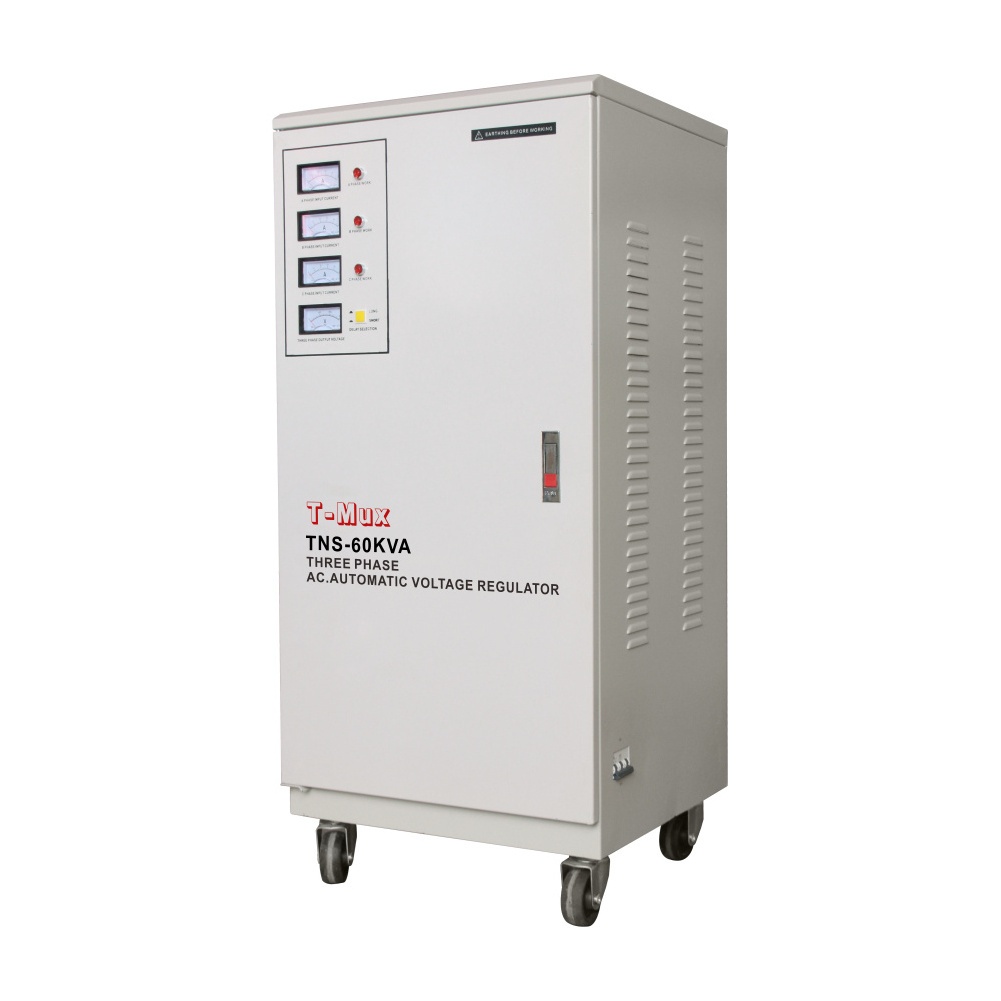

TNS-60KVA
-
Input Voltage Range:
-
AC304-456V
-
Output voltage:
-
AC380V
-
Capacity:
-
0.8
-
Frequency:
-
50-60HZ
-
Control Type:
-
servo motor
-
Precision:
-
3%
-
bypass function:
-
MCB
-
over/low volt protection:
-
yes
-
delaying/temperature:
-
option
-
Transformer Materials:
-
All copper
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
T-MUX
-
Model Number:
-
TNS-60KVA
-
Input Voltage Range:
-
AC304-456V
-
Output voltage:
-
AC380V
-
Capacity:
-
0.8
-
Frequency:
-
50-60HZ
-
Control Type:
-
servo motor
-
Precision:
-
3%
-
bypass function:
-
MCB
-
over/low volt protection:
-
yes
-
delaying/temperature:
-
option
-
Transformer Materials:
-
All copper
Recommend Products
|
Product
|
|
TNS-10KVA
|
TNS-15KVA
|
TNS-20KVA
|
TNS-30KVA
|
TNS-40KVA
|
TNS-60KVA
|
TNS-100KVA
|
||||||
|
Input |
voltage
|
AC 280-430v/304-456V
|
|
|
|
|
|
|
||||||
|
|
Phase
|
Three Phase
|
|
|
|
|
|
|
||||||
|
|
Frequency
|
50/60HZ
|
|
|
|
|
|
|
||||||
|
|
output power
|
8kw
|
12kw
|
16kw
|
24kw
|
32kw
|
48kw
|
80kw
|
||||||
|
Output |
Voltage Range
|
AC 380V
|
|
|
|
|
|
|
||||||
|
|
Precision
|
+/-3%
|
|
|
|
|
|
|
||||||
|
|
Frequency
|
50/60HZ
|
|
|
|
|
|
|
||||||
|
|
Power Factor
|
80%
|
|
|
|
|
|
|
||||||
|
Function |
Control Type
|
servo motor
|
|
|
|
|
|
|
||||||
|
|
Over/Low Volt Protection
|
yes
|
|
|
|
|
|
|
||||||
|
|
Circuit Protection
|
yes
|
|
|
|
|
|
|
||||||
|
|
Digital Display
|
Show input and output voltage
|
|
|
|
|
|
|
||||||
|
|
Overload Protection
|
YES
|
|
|
|
|
|
|
||||||
|
|
Short Circuit Protection
|
YES
|
|
|
|
|
|
|
||||||
|
Effciency
|
AC-AC
|
0.96
|
|
|
|
|
|
|
||||||
|
Acoustic
|
Noise Level
|
≤50dB
|
|
|
|
|
|
|
||||||
|
Environmental |
Temperature
|
-5-60 Degree
|
|
|
|
|
|
|
||||||
|
|
Humidity
|
20% to 90%
|
|
|
|
|
|
|
||||||
Single phase 30KVA Automatic Voltage Regulator
Control type:relay type
Input voltage:90/45-280V
Output:220V-+10%
Power factor:80%
Protection Function:Over/low voltage protection,short circuit&over load protection
Single phase 3-20KVA Automatic Voltage Regulator
Control type:relay type
Input voltage:90/45-280V
Output:220V-+10%
Power factor:80%
Protection Function:Over/low voltage protection,short circuit&over load protection
Output:220V-+10%
Power factor:80%
Protection Function:Over/low voltage protection,short circuit&over load protection
