Quick Details
-
resolution:
-
1280x720
-
Image Sensor:
-
OmniVision 1/4" NT99141
-
compression format:
-
YUY2 and MJPEG
-
OS:
-
Linux , Windows XP SP2, Android, Windows CE, Mac OS
-
Lens:
-
170 degree fisheye lens (FOV 140 degree)
-
OTG:
-
support
-
UVC:
-
Free Driver Plug & Play
-
Dimensions:
-
32mm*32mm/38mm*38mm
-
Cable:
-
1m USB cable (2M/3M/5M optiona)
-
Parameters:
-
Adjustable
-
Certification:
-
ce, FCC
-
Network:
-
USB2.0
-
Data Storage Options:
-
720P
-
Special Features:
-
UVC protocol
-
Video Compression Format:
-
Mjpeg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ELP/OEM
-
Model Number:
-
ELP-USB100W03M-L170
-
resolution:
-
1280x720
-
Image Sensor:
-
OmniVision 1/4" NT99141
-
compression format:
-
YUY2 and MJPEG
-
OS:
-
Linux , Windows XP SP2, Android, Windows CE, Mac OS
-
Lens:
-
170 degree fisheye lens (FOV 140 degree)
-
OTG:
-
support
-
UVC:
-
Free Driver Plug & Play
-
Dimensions:
-
32mm*32mm/38mm*38mm
-
Cable:
-
1m USB cable (2M/3M/5M optiona)
-
Parameters:
-
Adjustable
-
Certification:
-
ce, FCC
-
Network:
-
USB2.0
-
Data Storage Options:
-
720P
-
Special Features:
-
UVC protocol
-
Video Compression Format:
-
Mjpeg

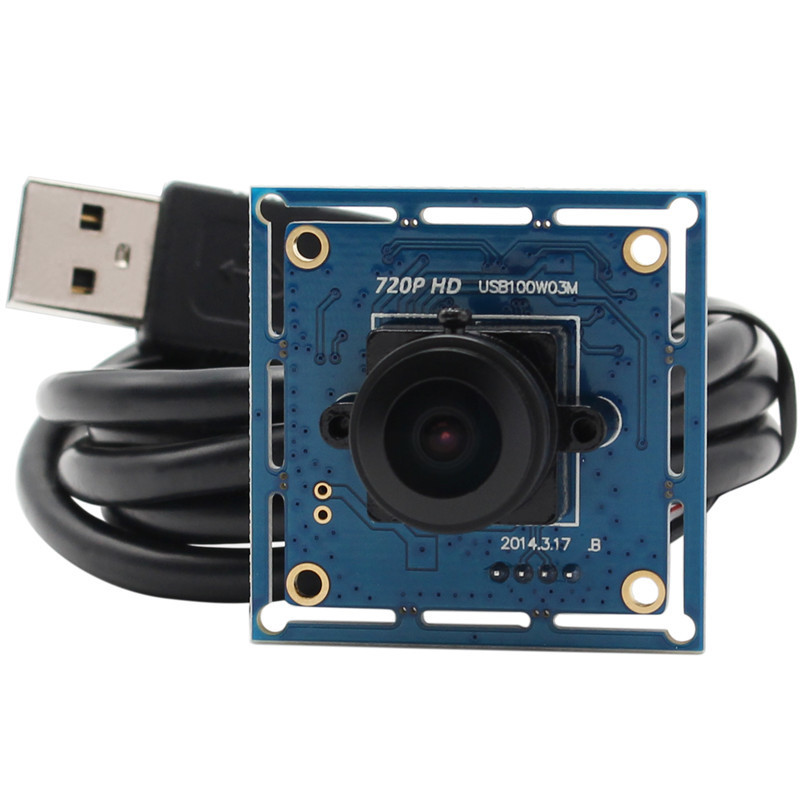

ELP CAM OEM Free driver Wide angle cmos camera module USB mini Camera for Eye tracking system ELP-USB100W03M-L170
1. 1/4 inch NT99141 cmos camera module
2. 720P mini micro usb camera
3. Free driver usb web camera for windows, linux, Mac with UVC,
4. 38x38/32x32mm mini micro usb web camera
5. USB camera module, well embedded in many machines, atm machine, medical machine, automatic vending machine, industry machine..
6. USB webcam Parameters changable (Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure...)
7. Camera with UVC, With 1m cable, 3m, 2m, 5m optional, also can customize the cable).
| Model | ELP-USB100W03M-L170 |
| Sensor | NT99141 |
| Lens Size | 1/4 inch |
| Pixel Size | 3.0um X 3.0um |
| image area | 3888 µm x 2430 µm |
| Max. Resolution | 1280(H)X720(V) |
| Compression format | MJPEG / YUV2(YUYV) |
| Resolution & frame |
1280X720 MJPEG@ 30fps YUY2@10fps/ 960X720MJPEG@ 30fps YUY2@15fps
800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps 352X248 MJPEG@30fps YUY2@ 30fps/ 320X240 MJPEG@ 30fps YUY2@ 30fps 176X144 MJPEG@30fps YUY2@ 30fps/ 160X120 MJPEG@ 30fps YUY2@ 30fps |
| USB Protocol | USB2.0 HS/FS USB1.1/USB1.0 |
| S/N Ratio | 40dB |
| Dynamic Range | 69dB |
| Sensitivity | 3.7V/lux-sec@550nm |
| Mini illumination | 0. 1lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| Free Drive Protocol | USB Video Class(UVC) |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure |
| Lens Parameter | Standard 170 Degree fisheye lens, optional 2.1/2.8/3.6/6/8/12mm lens |
| LED board power connector | Support 2P-2.0mm socket |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Power supply | DC5V |
| Operating Voltage | 100mA~120mA |
| Working current | -10~70℃ |
| Working temperature | -20~85℃ |
| Board size /Weight | 38X38mm(Compatible 32X32mm)/ about 30g |
| Cable | Standard 1M (optional 2M,3M,5M) |
| Operating system request |
WinXP/Vista/Win7/Win8/Win9/Win10
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Mini USB Camera Module
- 1 Megapixel 720P
- Resolution 1280x720
- 1/4" NT99141 Sensor
- OTG Support, UVC support
170 Degree fisheye lens wide angle USB Camera Module
-
Wide angle fisheye lens CMOS Camera Module
- With 170 degree fisheye lens, HFOV: about 150 degree
Mini micro Camera module standard with 1m USB Cable
- The camera includes 1m USB Cable, Many other length cable optional, 0.3M, 0.5M, 2M, 3M, 5M..
- Aslo can customize the cable as requested.
UVC Plug & Play USB Camera, easy to install and use, Support OTG
- UVC driver free Plug & Play, simple operation.
- Compatible with Windows (Win7,WIN8, XP, VISTA,WIN9, WIN10), Linux, Android, Raspberry Pi, Ubuntu...
- Support different software and APP. Windows: Amcap, USB webcam, PC default preview software Linux: OpenCV, VLC, V4L2...Android: CameraFi..Mac: Facetime..
- Support third party live streaming APP, skype, Zoom, Youtube, Facetime....
Well used for many different Applications.
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site
monitoring, environmental monitoring, etc.
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦
Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦
What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
♦
Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
♦
What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦
What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
