Quick Details
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
L:1380*W:790*H:3 mm
-
Panel Efficiency:
-
19.26%/19.72%/20.18%
-
Product name:
-

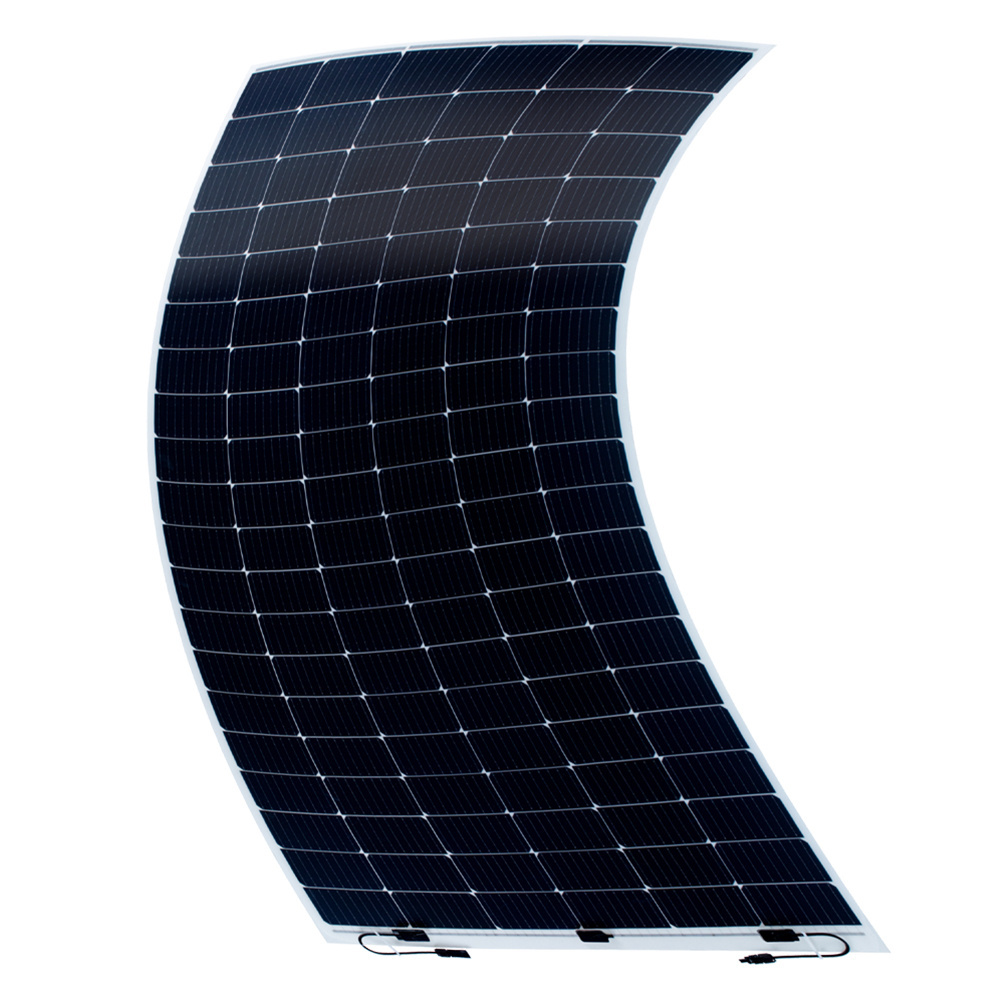

Flexible Solar Panel
-
Junction Box:
-
Protection grade IP67
-
Solar cell:
-
182*91mm
-
Packaging Configuration:
-
70pcs/pallet, 2100pcs/40 HQ container
-
Application:
-
Solar Power System
-
Waterproof:
-
IP67
-
Frame:
-
Flexible and borderless
-
Weight:
-
5.2kg
-
Power:
-
300/305W
-
Cable length:
-
(+)/(-) 300 mm
Quick Details
-
Cell size:
-
182*91mm
-
Brand Name:
-
Lovsun
-
Model Number:
-
PURES-100W-525W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
L:1380*W:790*H:3 mm
-
Panel Efficiency:
-
19.26%/19.72%/20.18%
-
Product name:
-
Flexible Solar Panel
-
Junction Box:
-
Protection grade IP67
-
Solar cell:
-
182*91mm
-
Packaging Configuration:
-
70pcs/pallet, 2100pcs/40 HQ container
-
Application:
-
Solar Power System
-
Waterproof:
-
IP67
-
Frame:
-
Flexible and borderless
-
Weight:
-
5.2kg
-
Power:
-
300/305W
-
Cable length:
-
(+)/(-) 300 mm
Product Description
Product Paramenters
|
|
PURES-300W
|
PURES-305W
|
|
|
Maximum Power (Pmax )
|
300W
|
305W
|
|
|
Maximum Power Voltage (Vmp)
|
23.2V
|
23.3V
|
|
|
Maximum Power Current(Imp )
|
12.95A
|
13.08A
|
|
|
Open- circuit Voltage (Voc)
|
27.6V
|
27.6V
|
|
|
Short- circuit Voltage Current (Voc)
|
13.95A
|
14.00A
|
|
|
Module Efficiency
|
19.78%
|
20.10%
|
|
|
Operating Temperature
|
-40 ℃ to 85 ℃
|
|
|
|
Maximum System Voltage
|
1000VDC
|
|
|
|
Maximum Series Fuse Rating
|
20 A
|
|
|
|
Application Class
|
Class A
|
|
|
|
Power Tolerance
|
0~+5 W
|
|
|
|
Solar Cell
|
Monosillicon Cell
|
|
|
|
|||
|
Cell Size
|
182×91mm
|
|
|
|
|||
|
Module Dimensions
|
L:1945*W:780*H:3 mm
L:1945*W:780*H:18 mm(J-Box included) |
|
|
|
|||
|
Weight
|
5.2KG
|
|
|
|
|||
|
Backsheet
|
White PV Backsheet
|
|
|
|
|||
|
J-Box
|
IP67
|
|
|
|
|||
|
Output cables
|
4mm²
|
|
|
|
|||
|
Connector
|
MC4 Compatible
|
|
|
|
|||
