Quick Details
-
Brand Name:
-
Bingo
-
Model Number:
-
PS-WE10
-
Max. Current:
-
12A
-
Max. Working Pressure:
-
10Bar
-
IP level:
-
IP68
-
rated current:
-
12A
-
operating temperature:
-
0-55
-
protection grade:
-
ip68
-
rated voltage:
-
110/230V
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
110 / 230V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Bingo
-
Model Number:
-
PS-WE10
-
Max. Current:
-
12A
-
Max. Working Pressure:
-
10Bar
-
IP level:
-
IP68
-
rated current:
-
12A
-
operating temperature:
-
0-55
-
protection grade:
-
ip68
-
rated voltage:
-
110/230V
Product Description

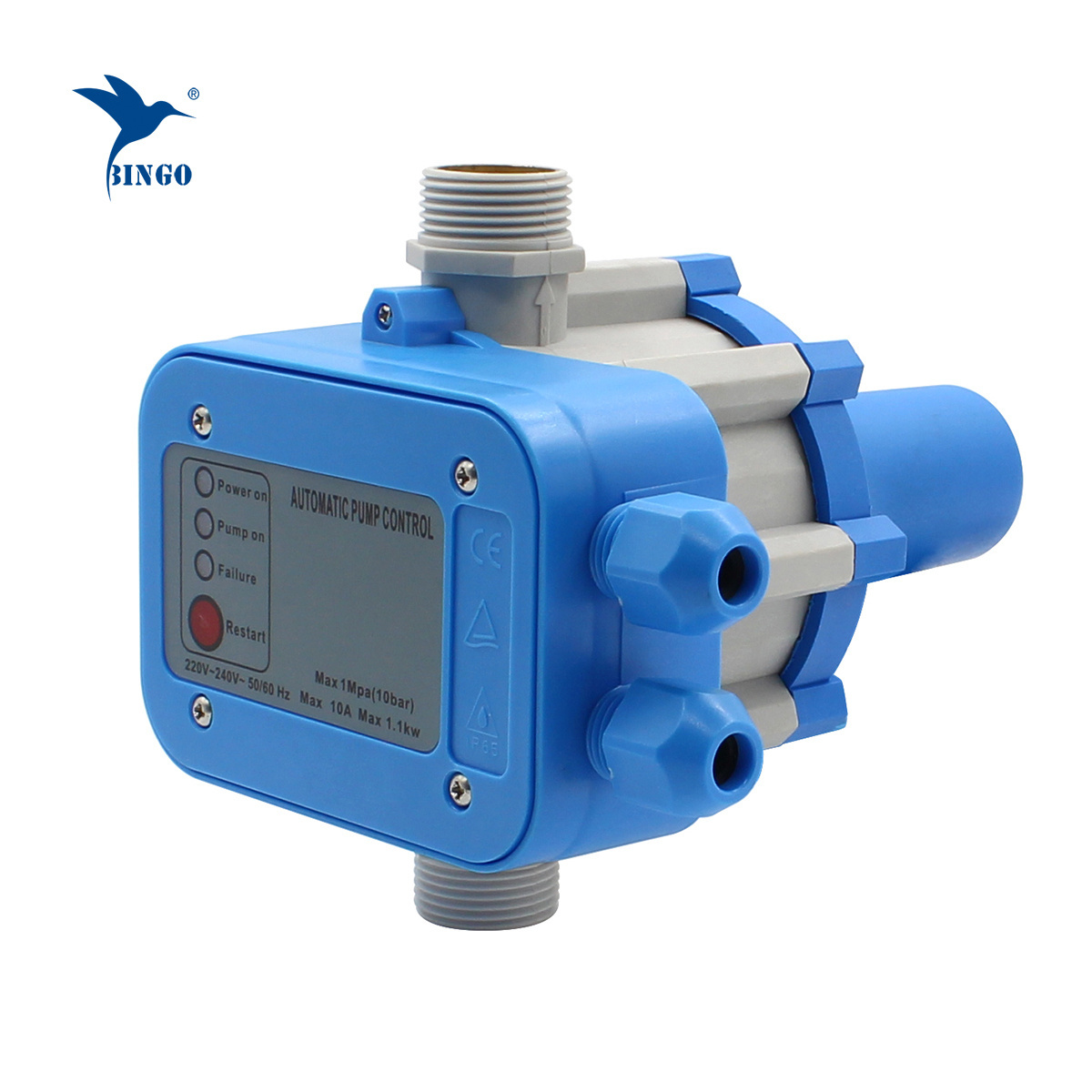

Water Pump Pressure Switch
Automatic pump controller Water pump electronic pressure controller can replace the complicated installations of automatic water
pump. It has the features of stable performance, low maintenance and long lifespan.
1). Electric switch used in water systems.
2). It starts the electric pump automatically after a pressure decrease(taps opening) and stops it when the fluid flow interrupts
at the maximum pressure level of the electric pump(taps closed).
3). Starting pressure is adjustable during installation, adjustment range: 1.0bar-3.5bar.
4). Joint screw: G1"male.
5). Completely replaced traditional pump control system composed of pressure switch, pressure tank and check valve, etc.
6). Stop the water pump in the case of water shortage.
7). Automatic reset after a stop caused by dry running, standard time-interval 60min/1 test.
8). Customized setting.
pump. It has the features of stable performance, low maintenance and long lifespan.
1). Electric switch used in water systems.
2). It starts the electric pump automatically after a pressure decrease(taps opening) and stops it when the fluid flow interrupts
at the maximum pressure level of the electric pump(taps closed).
3). Starting pressure is adjustable during installation, adjustment range: 1.0bar-3.5bar.
4). Joint screw: G1"male.
5). Completely replaced traditional pump control system composed of pressure switch, pressure tank and check valve, etc.
6). Stop the water pump in the case of water shortage.
7). Automatic reset after a stop caused by dry running, standard time-interval 60min/1 test.
8). Customized setting.
Specification
|
Model
|
PS-WE10
|
|
Medium
|
water
|
|
Starting pressure
|
1.0bar, 1.2bar, 1.5bar or 2.2bar
|
|
Max.pressure
|
10bar
|
|
Power
|
1.1KW(220V-240V),0.75KW(110V-120V)
|
|
Electric rating
|
10A; 110V-120V or 220V-240V, 50/60Hz
|
|
temperature
|
Max.60℃
|
|
Connection
|
G1"
|
|
Protection grade
|
IP65
|
|
Size
|
228mm*169mm*167mm
|
Detailed Images
Panel.
CE, TUV Certificate, IP65.
Installation interface.
Threaded interface,easy to install,firm and watertight.
Brand new engineering plastics.
ROHS certificateDifferent color available.
Wire connection port.
With rubber sleeve,sealed interface,waterproof design.
Installation instruc
Vertical installation, arrows indicate the flow of water.
