Helical Gear Inline Right Angle Helical Gearbox
-
Gears Style:
-
Helical Gear
-
Material:
-
Iron Casting
-
Motor Power:
-
0.12 to 160KW
-
Speed Ratio:
-
1.65 to 21000
-
Output Diameter:
-
20 to 120MM
-
Mounting Position:
-
As Required
-
Certificate:
-
CE ISO9001
-
Color:
-
Gray Blue
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
Max. 22400Nm
-
Input Speed:
-
1440rpm
-
Output Speed:
-
0.06-1040rpm
-
Warranty:
-
12 Months, 12 Months
-
Weight (KG):
-
25 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FIXEDSTAR
-
Product Name:
-
Helical Gear Inline Right Angle Helical Gearbox
-
Gears Style:
-
Helical Gear
-
Material:
-
Iron Casting
-
Motor Power:
-
0.12 to 160KW
-
Speed Ratio:
-
1.65 to 21000
-
Output Diameter:
-
20 to 120MM
-
Mounting Position:
-
As Required
-
Certificate:
-
CE ISO9001
-
Color:
-
Gray Blue
Detailed Images of Helical Bevel Gear Helical Geared Motor
Detailed Video of Helical Bevel Gear Helical Geared Motor

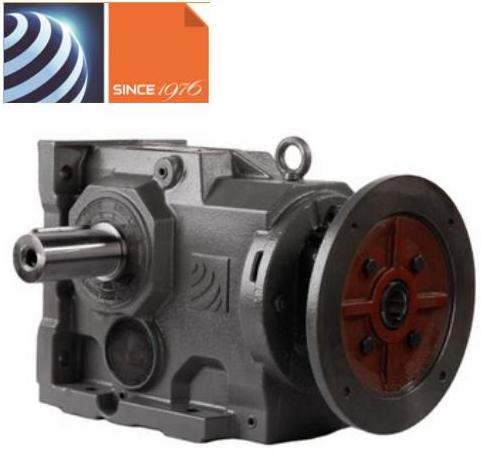

Introducing FR,FF, FK, and FS Series Gear Reducers and Gearmotors
Our FR, FF, FK, and FS series gear motors are designed to meet a vast spectrum of industrial requirements. These series are distinguished by their remarkable compactness, minimal noise output, high load-bearing capacity, low energy consumption, superior torque transmission, optimal efficiency, minimal temperature rise, and extended lifespan.
Customized Solutions for Diverse Needs
Embracing a philosophy of modular design and optimization, we are dedicated to fulfilling diverse customer needs across various applications. Multi-stage gear motors with additional helical gear input stages are supplied to achieve particularly low output speeds.
Advanced Material and Manufacturing Techniques
Gears and pinions are crafted from premium alloy steel, treated with carburization and quenching for enhanced durability. The high-precision gear grinding process, complemented by meticulous tooth profile modifications, guarantees a smooth transmission.
Versatile Installation and Output Options
Our gear reducers are designed for various mounting configurations including foot, flange, and torque arm installations. Output shaft options are versatile, offering both solid and hollow shafts that can be adapted using either spline or locking disc connections for a secure and efficient power transfer.
Comprehensive Input Compatibility
Besides the integral connection with motor directly, Fixedstar also provide AM motor flanges compliant with IEC, NEMA C faces
compliant with Nema system, and AD solid shaft input.
Available Ratios: more than 100 ratios from 3.83 - 229.71
Maximum power: 160KW
Maximum Output Torque: 23,200Nm
-Modularized gears and pinions;
-Additional option of IEC adaptors allowing use of both standard Nema or IEC motors;
-High precision helical gears and shafts made of 20CrMnTi alloy steel, heat treated with carburizing and quenching, ground finish,
in compliance with ISO 1328-1997;
-98% Efficiency in each stage;
-Cast iron housing and covers durable for heavy load and torque;
The integrated design of modular motor and reducer can realize rapid delivery;
The input and output shafts are right angled, with compact structure and low noise;
Possibility of mounting positions and methods in all directions and sides;
Gearbox case is made of high-strength gray cast iron, with good stiffness and excellent vibration damping performance;
Gears and pinions are made of high strength alloy steel. Treated with carburization, quench and hardening, the surface hardnessreaches HRC58-62;
All gears and pinions are modified and grinded by CNC grinding equipment to improve the strength and reduce the noise;
Optimized structure designed for noise reduction and faster cooling.
Different Mounting Positions of Helical Gearbox Geared Motor
Packaging Pictures of Worm Gear Reduce and Helical Geared Motor
Inner Packing: PP bag with carton;
Outer Packing: Carton boxes and wooden cases;
Leadtime: 20-30 days upon order confirm.
