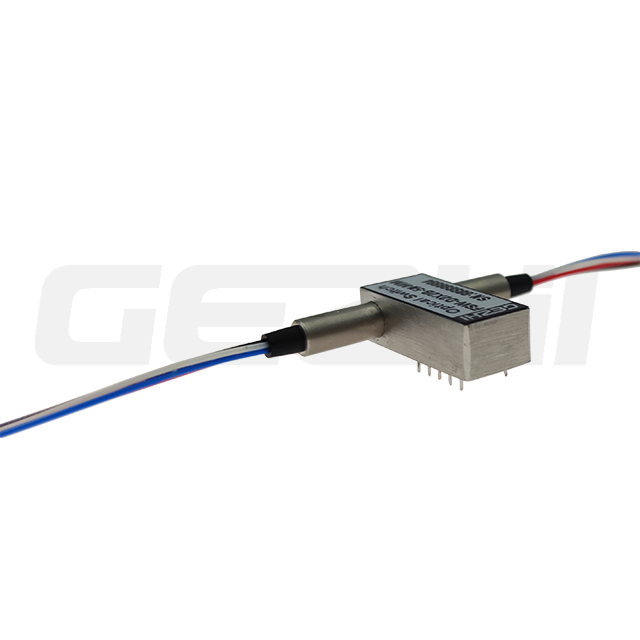

Dual 2x2 Bypass Opto-Mechanical Optical Switches
(4x4 Fiber Optical Switch)
GEZHI Photonics Dual 2x2B Single-mode or Multi-Mode Mechanichal Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal.
GEZHI’s Dual 2x2B (D2x2B) SM or MM Mechanichal Optical Switch support all wavelength at Singlemode 1310/1550nm and Multimode 850nm wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.
GEZHI’s Dual 2x2B (D2x2B) SM or MM Mechanichal Optical Switch support all wavelength at Singlemode 1310/1550nm and Multimode 850nm wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.
FEATURES AT A GLANCE
Features
Low cross talk, Low Insertion LossWide operating wavelength RangeSeam-seal packageHighly Stable & ReliableEpoxy-free on Optical
PathSingle mode or Multimode optionalFail-Safe Latching and Non-latching
PathSingle mode or Multimode optionalFail-Safe Latching and Non-latching
Applications
Network switchingSystem monitoringModule and System IntegrationMetropolitan Area Network (MAN)Network protection and restoration
Instrumentation, testing, and measurement
Instrumentation, testing, and measurement
PRODUCT SPECIFICATIONS
|
Model
|
Unit
|
GZ-FSW-D2x2B
|
|
|||
|
Operatingwavelength
|
nm
|
850±40/1300±40
|
1260～1620
|
|||
|
wavelength
|
nm
|
850&1300
|
1310&1550
|
|||
|
Insertion loss
|
dB
|
Typ:1.0 Max:1.5
|
|
|||
|
Return loss
|
dB
|
MM≥30 SM≥50
|
|
|||
|
Cross talk
|
dB
|
MM≥35 SM≥55
|
|
|||
|
PDL
|
dB
|
≤0.05
|
|
|||
|
WDL
|
dB
|
≤0.25
|
|
|||
|
TDL
|
dB
|
≤0.25
|
|
|||
|
Repeatability
|
dB
|
≤±0.02
|
|
|||
|
Voltage
|
v
|
3.0 or 5.0±0.5
|
|
|||
|
Operating life
|
Time
|
≥107
|
|
|||
|
Switch time
|
ms
|
≤8
|
|
|||
|
Power handling
|
mW
|
≤500
|
|
|||
|
Operating temperature
|
℃
|
-20～+70
|
|
|||
|
Storage temperature
|
℃
|
-40～+85
|
|
|||
|
Fiber color
|
|
P1、P1’：Black P2、P2’：Red
P3、P3’：Blue P4、P4’：White
|
|
|||
|
Size
|
mm
|
27.0×12.0×8.2
|
|
|||
|
Note: 1 Within operating temperature and SOP. 2 Excluding Connectors.
|
|
|
|
|||
