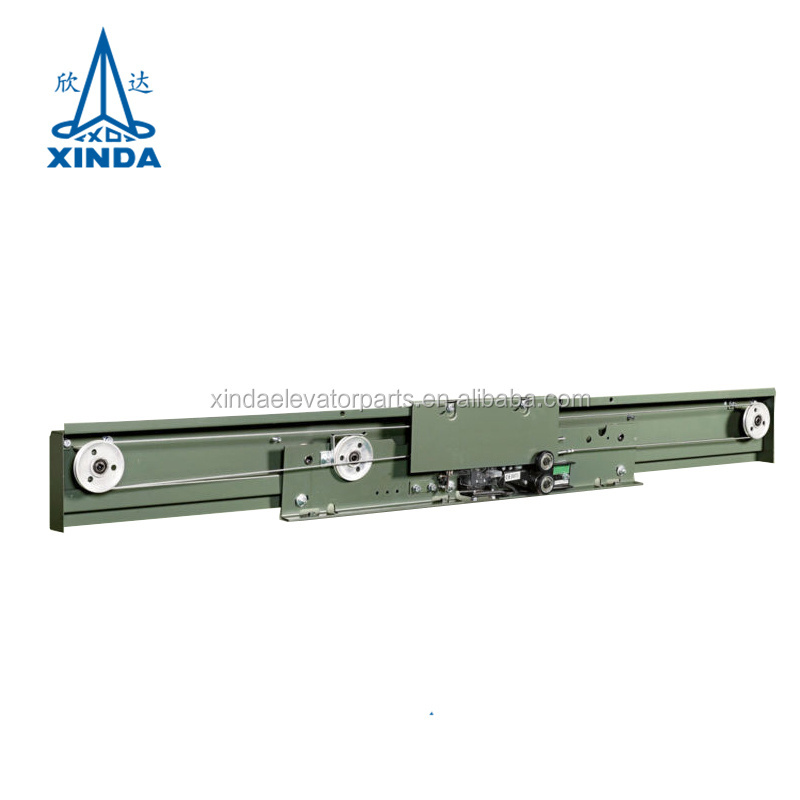

Electric Door Mechanism Elevator Door Lock

HB1203C is matched with HA1403A two-speed center opening door operator / door machine

Standard Available Opening and Related Specification (mm):

Net door opening width JJ	1200	1300	1400	1500	1600	1700	1800	1900
L	1970	2120	2270	2420	2570	2720	2870	3020
A1L	1460	1610	1760	1910	2060	2210	2360	2510
A2L	1260	1360	1460	1560	1660	1760	1860	1960
Net door opening width JJ	2000	2100	2200	2300	2400	2500	2600
L	3170	3320	3470	3620	3770	3920	4070
A1L	2660	2810	2960	3110	3260	3410	3560
A2L	2060	2160	2260	2360	2460	2560	2560

Hosting Elevator always following market requirement to convince our users around the world with quality products and satisfactory service.

Establishing a sound marketing service network and participates in different exhibitions all over the world , we are now wining 125 agents at home and 25 agents on abroad throughout the world’s major emerging markets.

Quality Control

Hosting Elevator not only import Automatic Optical Inspection, Spectrum Analyzer, CMM, but also found precision detection experimental center.

Strictly followed international QC management to elevator production, we set rigorous manufacturing standards of Hosting Elevator to make sure every elevator remarkable.

Set up in 1993 while creating HOSTING brand in Ningbo, Hosting located in  an important port city in China.

Since the establishment, HOSTING was dedicated in research development and the manufacturing of elevator and escalator.

v Multipl y Products

Passenger Elevator, Observation lift, Bed Elevator, Cargo Elevator, Escalator, Conveyor and the Spare Parts.

Popular in government-financed projects, real estate projects, hotels and urban rail transit projects.

v Safety First

High Safety Standard ensured for any Accidents occurs.

ISO9001:2000 quality and CE marking certification systems.

v Services

First-Class Sets of Equipment for  metal cutting, sheet metal fabrication, coating and test equipment worth USD70 million

Win-Win Cooperation and Mutual Benefits.

v Global Market

More than 30% of our products are exported to South America, Europe, Asia, and Africa etc; Our export volume ranks ninth in

China and second in self-owned brand of China. We provide elevator and escalator with competitive price and reliable quality.

Furthermore, we will spend more efforts to look for good and qualified abroad agents so that we can localize our after-service

world widely in the future.

HOSTING has the strong ability of design and manufacturing thanks to a lot of first-class manufacturing equipments including NC laser cutter, CNC multi-stations punch press, NC plate bending machine, processing center, spraying production line, welding robot and well-equipped production line. We adopt risk management and delicacy operation for safe production and employ precise testing instruments for more stable products, more complete functions and longer service life.

v Deli cated in Research Development and the Manufacturing Process.

v Set up in 1993 while creating HOSTING brand in Ningbo, Hosting located in an important port city in China.

v 6 Subsidia ries: Xinda Elevator, Xinda Compressor, Xinda Elevators Parts, Xinda Heavy Industry and Lebang Electron.

v Widely applied in government-financed projects, real estate projects, hotels and urban rail transit projects.

v More than 30% of our products are exported to South America, Europe, Asia, and Africa.

FAQ

1. Are the elevator wire ropes durable?

The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.

2.Is it dangerous for power failure suddenly during the elevator running?

If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure, elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.

3. Will us be hurt when it closed suddenly?

In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.

4.How the elevator running?

Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.

5. Do you have any cerifications?

Yes, we do with CE, KLA,CSA and UL Certificates for u.

Electric Door Mechanism Elevator Door Lock
