Quick Details
-
Brand Name:
-
GBPI
-
Model Number:
-
AUTO W806
-
Product name:
-
WVTR
-
Application:
-
Packaging Industrial
-
Certificate:
-
ISO
-
Power supply:
-
AC 220V 50Hz
-
Function:
-
Test water vapor permeability
-
Standard:
-
ASTM
-
Test Chambers:
-
6 pcs
-
Sample number:
-
6 pcs
Quick Details
-
Warranty:
-
2 years, 2 years
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GBPI
-
Model Number:
-
AUTO W806
-
Product name:
-
WVTR
-
Application:
-
Packaging Industrial
-
Certificate:
-
ISO
-
Power supply:
-
AC 220V 50Hz
-
Function:
-
Test water vapor permeability
-
Standard:
-
ASTM
-
Test Chambers:
-
6 pcs
-
Sample number:
-
6 pcs
Product Description

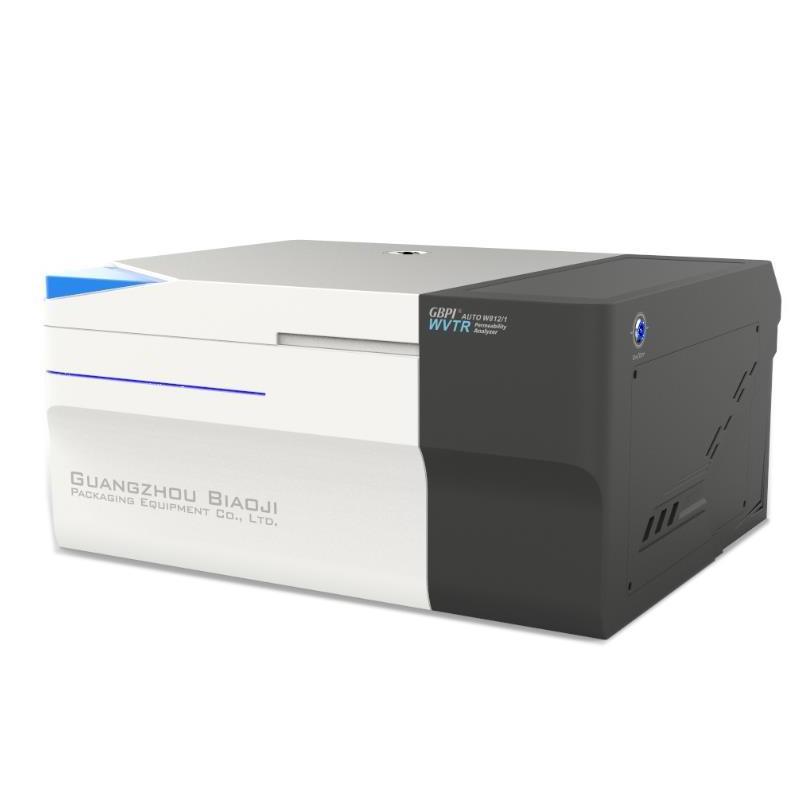

WVTR Water Vapor Permeability Analyzer Water Vapor Transmission Rate Tester
Product introduction
This product is based on the test principle of cup method water vapor transmission and is designed and manufactured according to ASTM E96 standard and provides a wide range and high efficiency water vapor transmission rate detection for low, medium and high water vapor barrier materials testing.
It is suitable for the water vapor transmission performance test of films, sheets, paper, fabrics, non-woven fabrics and related materials in the fields of food, medicine, medical equipment, daily chemicals, etc.
1) Plastic film, composite film, aluminum foil, aluminized film, etc;
2) Sheet, panel, rubber, ceramics,etc;
3) Packaging containers, such as: glass, bottle, cans, boxes, etc;
4) Expanding application: solar panel, LCD film, medical patch, etc.
Widely used in quality inspection organizations, drug control institutions, research institutes, packaging, thin film, food
companies, pharmaceutical enterprises, personal care industry, electronics industry and so on.
Standard
ASTM E96, ASTM D1653, ISO 2528, TAPPIT464, DIN 53122-1, YBB00092003
Specification
|
Technical Specifications
|
|
|
|
Item
|
Technical parameters
|
|
|
Test range
|
film：0.05~10,000 g/(m2·24h)，Container：0.0002~30 g/(pkg·24 h)
|
|
|
Test precision
|
film：0.001 g/(m2·24h)，Container：0.0002 g/(pkg·24 h)
|
|
|
Test chambers
|
6 Pieces
|
|
|
Balance range
|
210 g
|
|
|
Balance indexing
|
0.01 mg
|
|
|
Temperature range
|
10~50±0.1 ℃
|
|
|
Humidity range
|
5%～95%，100% RH
|
|
|
air speed
|
0.5~2.5 m/s（0.03~0.5 m/s optional）
|
|
|
Sample size
|
Φ74 mm
|
|
|
Sample thickness
|
≤3 mm
|
|
|
Test method
|
weight gain method, weight loss method
|
|
|
Standard test area
|
33 cm2
|
|
|
Carrier gas specification
|
Air compressor
|
|
|
Air pressure
|
≥0.6 MPa
|
|
|
Connection size
|
Φ6 mm Polyurethane tube
|
|
|
|
|
|
