It is not necessary to replace the mold to replace the specification, only adjustment can be achieved.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Boom
-
Weight:
-
500 KG
-
Keyword:
-
Box Packing Machine
-
Productivity:
-
80-100pcs/min
-
Box Size Range:
-
L(55-220)mm*W(20-120)mm*H(12-70)mm
-
Box Paper Requirements:
-
250-450g/m3
-
Instructions Size Range:
-
L(100-260)mm*W(100-190)mm
-
Instructions Paper-Based Requirements:
-
55-70g/m3
-
Motor Power:
-
1.5KW
-
Industry:
-
Food, Chemicals, Hardware, etc.
-
Advantage:
-
Easy Operation High Efficiency
Quick Details
-
Application:
-
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Boom
-
Weight:
-
500 KG
-
Keyword:
-
Box Packing Machine
-
Productivity:
-
80-100pcs/min
-
Box Size Range:
-
L(55-220)mm*W(20-120)mm*H(12-70)mm
-
Box Paper Requirements:
-
250-450g/m3
-
Instructions Size Range:
-
L(100-260)mm*W(100-190)mm
-
Instructions Paper-Based Requirements:
-
55-70g/m3
-
Motor Power:
-
1.5KW
-
Industry:
-
Food, Chemicals, Hardware, etc.
-
Advantage:
-
Easy Operation High Efficiency
PRODUCT DESCRIPTION

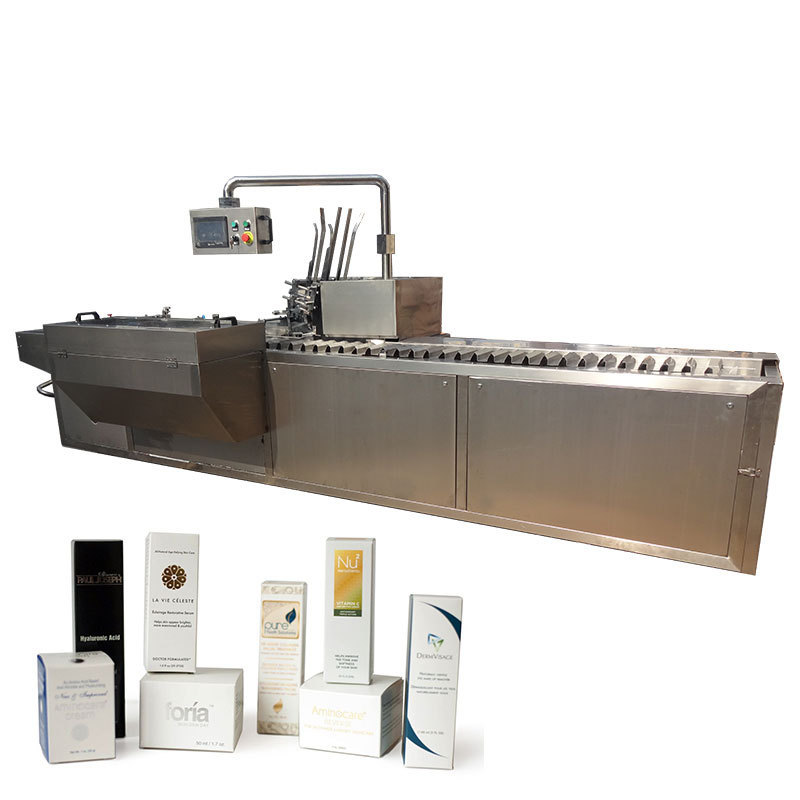

Fully Automatic Small Paper Box Cartoning Machine - Packing Soap, Toothpaste Tube, Cosmetic, Bottle, Blister, Biscuit Bag
HTZH-120 box packing machine is intelligent, continuous automatic cartoning equipment, suitable for packing bottles, blisters, tubes, ampoules, and other products with leaflets into cartons. Its stable performance can reach up to 120 cartons/min. The leaflets can be folded as 1-4 lines. The printing function is included in the machine. This machine can pack various finished products into boxes. Such as toothpaste, cosmetics, biscuits, chocolate, candy, coffee bar, etc.
SPECIFICATIONS
|
Model
|
HTZH-120
|
|
Productivity
|
80-120pcs/min
|
|
Box Size Range
|
L(55-220)mm*W(20-120)mm*H(12-70)mm
|
|
Box Paper Requirements
|
250-450g/m3
|
|
Instructions Size Range
|
L(100-260)mm×W(100-190)mm
|
|
Instructions Paper-Based Requirements
|
55-70g/m3
|
|
Motor Power
|
1.5KW
|
|
Power Supply
|
220V/380V/50Hz/60Hz
|
|
Machine Noise
|
≤80dB
|
|
Gas Source
|
0.5-0.8Mpa
|
|
Air Consumption
|
120-160L/min
|
|
Dimension(L*W*H)
|
3500×1500×1600mm
|
|
Weight
|
About 1400KG
|
FEATURES AT A GLANCE
HTZH-120 Box Packing Machine Features
1.
Using a servo/stepper motor and touch screen, PLC makes the man-machine interface display clear, operation more simple, with a higher degree of automation, more human.
2.
Automatic photoelectric detection and tracking system is adopted to save packaging materials to the greatest extent.
3.
The packaging range is large and easy to adjust, and a variety of specifications can be quickly converted between sizes.
