Quick Details
-
Production Capacity:
-
High
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QK
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
6100x5200x5200mm
-
Weight:
-
7500 kg
-
Warranty:
-
1 Year
-
Marketing Type:
-
New Product 2021
-
After-sales Service Provided:
-
No overseas service provided
-
Product name:
-
Bridge round saw cutter
-
Model:
-
2200
-
Color:
-
Optional
-
Usage:
-
Diamond
-
Function:
-
Stone Pressing
-
Saw dia.:
-
2200mm
-
Infeed stroke:
-
3600mm
-
Lifting stroke:
-
1100mm
-
Manufacturer:
-
Yes
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
33KW
-
Cutting thickness (max):
-
250mm
-
Production Capacity:
-
High
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QK
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
6100x5200x5200mm
-
Weight:
-
7500 kg
-
Warranty:
-
1 Year
-
Marketing Type:
-
New Product 2021
-
After-sales Service Provided:
-
No overseas service provided
-
Product name:
-
Bridge round saw cutter
-
Model:
-
2200
-
Color:
-
Optional
-
Usage:
-
Diamond
-
Function:
-
Stone Pressing
-
Saw dia.:
-
2200mm
-
Infeed stroke:
-
3600mm
-
Lifting stroke:
-
1100mm
-
Manufacturer:
-
Yes

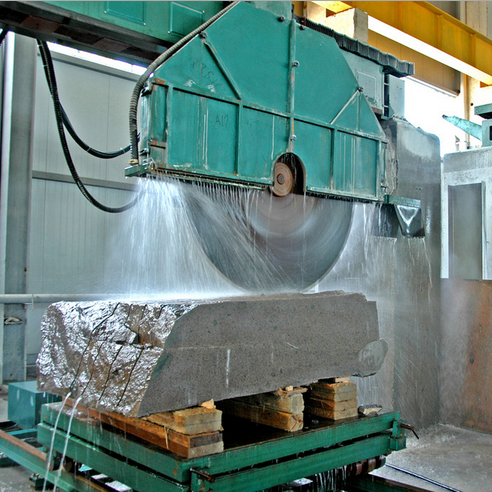

2200model Bridge round saw block cutter stone cutting machine
Related Products
Description
Mainly used for cutting marble, granite, stone, stone etc.
To main structure types of sawing machine by the cross and combination of carriage system, the carriage on the way to realize longitudinal feeding, the strict beams around movement to achieve the infeed. The main motor drives the saw blade for cutting stone, this type of circular sawing machine has the advantages of simple structure, compact, low cost, high production efficiency, applicable scope wide, is the most common stone machinery, widely used in stone industry.
Specification
|
Model |
1200 |
1600 |
1800 |
2200 |
2600 |
2800 |
|
Saw dia. |
1200mm |
1600mm |
1800mm |
2200mm |
2600mm |
2800mm |
|
Infeed stroke |
2600mm |
2600mm |
3100mm |
3600mm |
4800mm |
4800mm |
|
Lifting stroke |
850mm |
850mm |
850mm |
1100mm |
1400mm |
1400mm |
|
Power |
21.5KW |
25KW |
33KW |
33KW |
40KW |
40/48KW |
|
Weight |
4300KG |
4500KG |
7000KG |
7500KG |
8500KG |
8500KG |
Detail
Advantage
- Suitable for cutting various kinds of marble granite silica hardness
- Cutting speed, high flatness, low broken rate
- Trolley can rotate 360 degrees, can load 20-40T
- The host adopts oil immersed dovetail structure, frequency control, sliding parts with advanced wear-resistant materials, stable running and durable
- Users can choose different control system to achieve the equipment can only fully automatic operation
