CR02: 3-wire, (three-wire two-control mode) wiring diagram
Voltage: DC12V, DC24V
1. The SW is connected with OPEN, the valve is opened, and the internal power is automatically cut off when it is in place, and
the valve remains in the open state.
2. The SW is connected with CLOSE, the valve is closed, and the internal power is automatically cut off when it is in place, and
the valve is kept in the closed state.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
2W
-
Brand Name:
-
Acarps
-
Body material:
-
Brass
-
Voltage:
-
12VDC, 220VAC, , 24VAC, 24VDC
-
Connection type:
-
BSP (G)
-
Working pressure:
-
0-16bar
-
Operation:
-
Three Wire Two Control
-
Temperature:
-
<95℃
-
Running Time:
-
5-15 Seconds
-
Structure Forms:
-
Three Ways
Quick Details
-
Port Size:
-
3/4 inch
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
2W
-
Brand Name:
-
Acarps
-
Body material:
-
Brass
-
Voltage:
-
12VDC, 220VAC, , 24VAC, 24VDC
-
Connection type:
-
BSP (G)
-
Working pressure:
-
0-16bar
-
Operation:
-
Three Wire Two Control
-
Temperature:
-
<95℃
-
Running Time:
-
5-15 Seconds
-
Structure Forms:
-
Three Ways

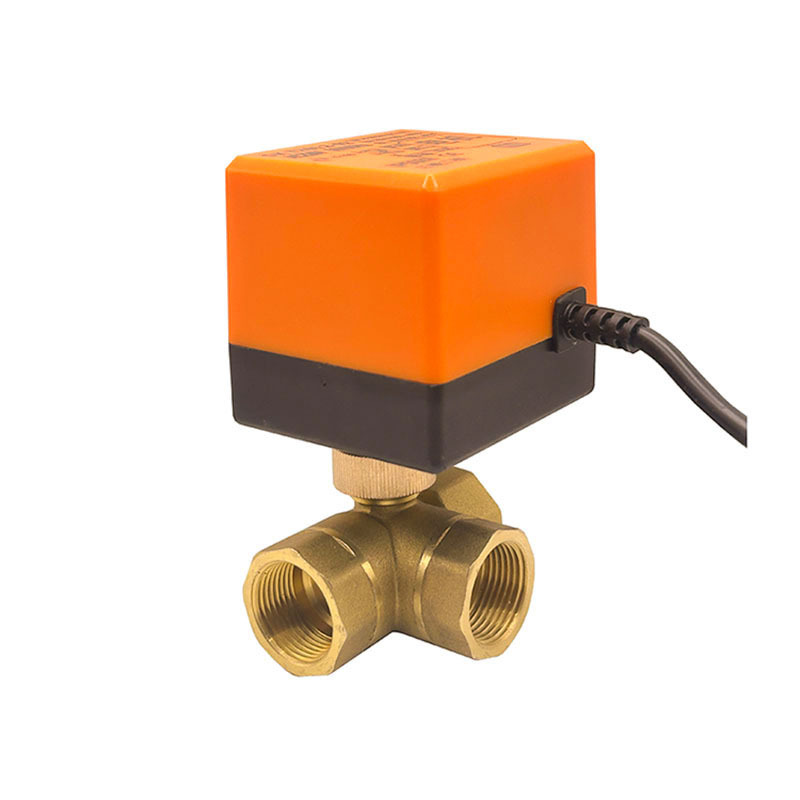

Products Description
Specification
Medium: Cold/hot water, 60% Ethylene Glycol
Material: Brass
Power Supply: AC220V/DC12V/DC24V/AC24V
Structure Forms: Two Ways,
Operation Mode: Three wires Two Control
Power: 6W (Only when the valves open and close)
Running Time: 5-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: 2°~95°
Maximum Differential Pressure: 1.0MPa
Connection Mode: G Internal Thread
Medium: Cold/hot water, 60% Ethylene Glycol
Material: Brass
Power Supply: AC220V/DC12V/DC24V/AC24V
Structure Forms: Two Ways,
Operation Mode: Three wires Two Control
Power: 6W (Only when the valves open and close)
Running Time: 5-15 Seconds
Nominal Pressure: 1.6MPa
Medium Temperature: 2°~95°
Maximum Differential Pressure: 1.0MPa
Connection Mode: G Internal Thread
CR02: 3-wire, (three-wire two-control mode)
FEATURES AT A GLANCE
Application
Our Advantages
Why Choose Us
FAQ
1. What's your production capacity?
(1) We are factory, our production capacity is about 100,000 to 200,000pcs each month.
2. What's your MOQ?
(1) We don't have MOQ for your first order, welcome to test samples first before official orders.
(2) No MOQ for Ready to Ship products, you can confirm online orders directly on Alibaba.
4.What is your delivery time?
(1) It is in stock for 1-100pcs.
(2) 3-5da
4.Payment
(1) TT, Paypal, Cradit cards (MasterCard/VISA) are supported. Welcome to make Alibaba Trade Assurance Orders with full assurance..
