Processing diameter/ length: 360/800mm
- Product Details
- {{item.text}}
Quick Details
-
Range of Spindle Speed(r.p.m):
-
80 - 2000 r.p.m
-
Max. Turned Length (mm):
-
800 mm
-
Spindle Motor Power(kW):
-
1500W 220V/380V
-
Year:
-
NEW
-
Place of Origin:
-
China
-
Brand Name:
-
RICHON
-
Model Number:
-
260VFL
-
Voltage:
-
customed
-
Dimension(L*W*H):
-
1580X750X730MM
-
Weight (KG):
-
380 KG
-
Core Components:
-
Other
-
Name:
-
Lathe Machine
-
Machine Type:
-
Horizontal Metal Turning combination Lathe Machine
-
Product type:
-
Economical Lathe
-
Function:
-
Metal Turning
Quick Details
-
Max. Length of Workpiece (mm):
-
800
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
40.5
-
Range of Spindle Speed(r.p.m):
-
80 - 2000 r.p.m
-
Max. Turned Length (mm):
-
800 mm
-
Spindle Motor Power(kW):
-
1500W 220V/380V
-
Year:
-
NEW
-
Place of Origin:
-
China
-
Brand Name:
-
RICHON
-
Model Number:
-
260VFL
-
Voltage:
-
customed
-
Dimension(L*W*H):
-
1580X750X730MM
-
Weight (KG):
-
380 KG
-
Core Components:
-
Other
-
Name:
-
Lathe Machine
-
Machine Type:
-
Horizontal Metal Turning combination Lathe Machine
-
Product type:
-
Economical Lathe
-
Function:
-
Metal Turning
PRODUCT DESCRIPTION

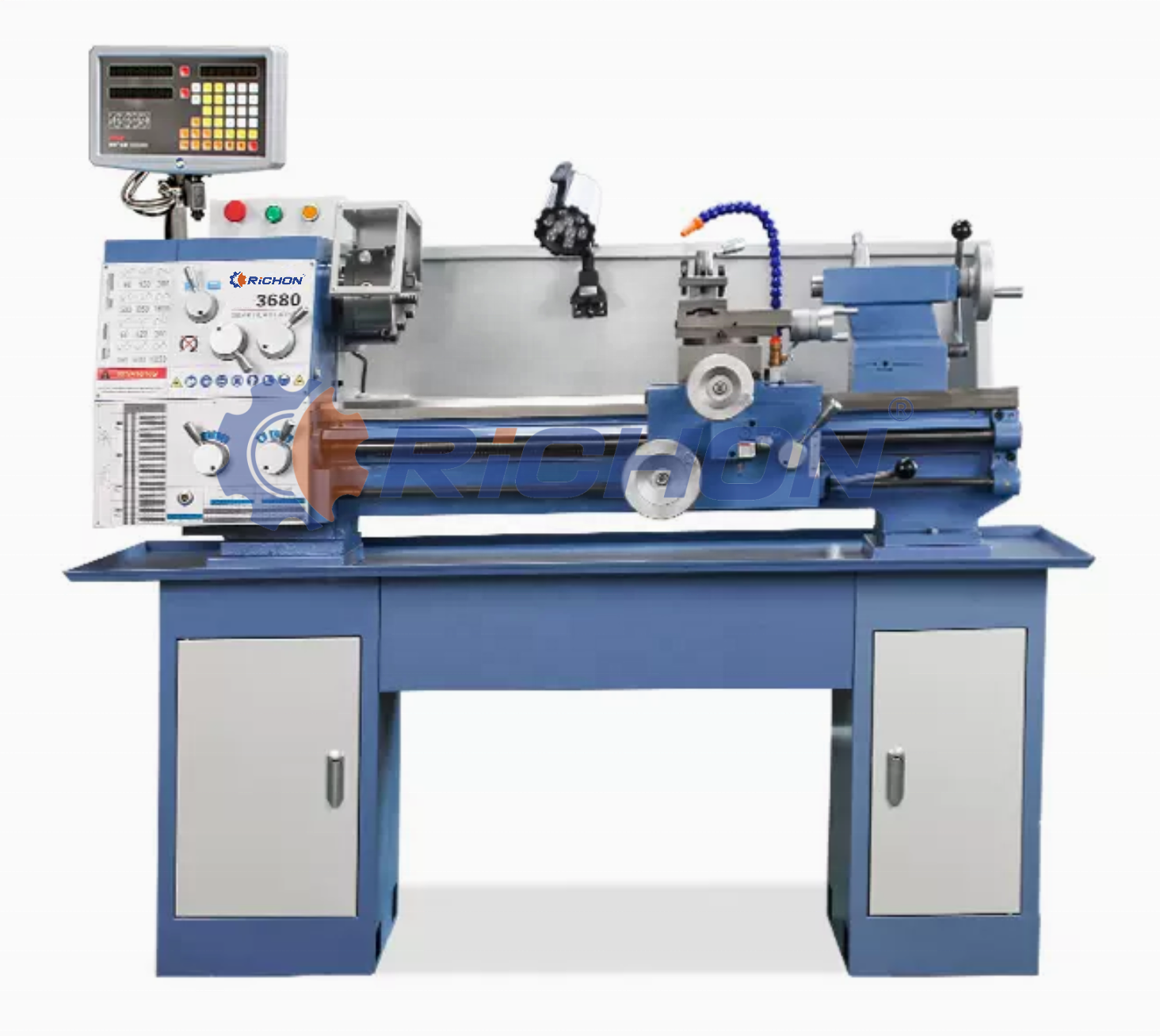

3680 GEAD HEAD LATHE
|
Swing over bed
|
360mm
|
|
Swing over cross slide
|
240mm
|
|
Distance between centers
|
800mm
|
|
Spindle bore
|
41mm
|
|
Taper of spindle bore
|
MT5
|
|
Step of spindle speeds
|
12
|
|
Spindle speed
|
80-2000rpm
|
|
Range of longitudinal feeds
|
0.1-1.4mm/r
|
|
Range of inch threads
|
2.5-48T.P.I
|
|
Metric threads
|
0.2-
7mm/r
|
|
Taper of tail stock quill
|
MT3
|
|
Main motor
|
1500W
|
|
Packing size
|
1580*750*730mm
|
|
Net weight
|
350/380kgs
|
RECOMMENDED PRODUCT
COUPONS
Q1:How long guarantee period you offer?/ how is warranty?
A1:12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.cost-value replacing parts available beyond thewarranty period.Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customerrequirements(relative cost born by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet differentrequirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more youtrust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6:Our factory is located in Kunming city, Yunnan province, in the southwest of China.
