Quick Details
-
Place of Origin:
-
Guangdong, China
-
Channel:
-
4~64 E1/T1
-
Interface Type:
-
RJ48(Impedance 120Ω)
-
lls Per Second (cps):
-
130
-
Protocol:
-
ISDN PRI, SS7, SIP UDP/TCP
-
Fax:
-
Fax over IP (T.38 and Pass-through)
-
SIP Trunks:
-
Multiple SIP trunks
-
Managemet:
-
DINSTAR Cloud Management
-
PSR:
-
Dual Power Supply redundancy
-
Hot stand-by:
-
Dual Mainboard hot stand by
Quick Details
-
Type:
-
VoIP Gateway
-
Brand Name:
-
DINSTAR
-
Model Number:
-
MTG5000
-
Place of Origin:
-
Guangdong, China
-
Channel:
-
4~64 E1/T1
-
Interface Type:
-
RJ48(Impedance 120Ω)
-
lls Per Second (cps):
-
130
-
Protocol:
-
ISDN PRI, SS7, SIP UDP/TCP
-
Fax:
-
Fax over IP (T.38 and Pass-through)
-
SIP Trunks:
-
Multiple SIP trunks
-
Managemet:
-
DINSTAR Cloud Management
-
PSR:
-
Dual Power Supply redundancy
-
Hot stand-by:
-
Dual Mainboard hot stand by
Products Description

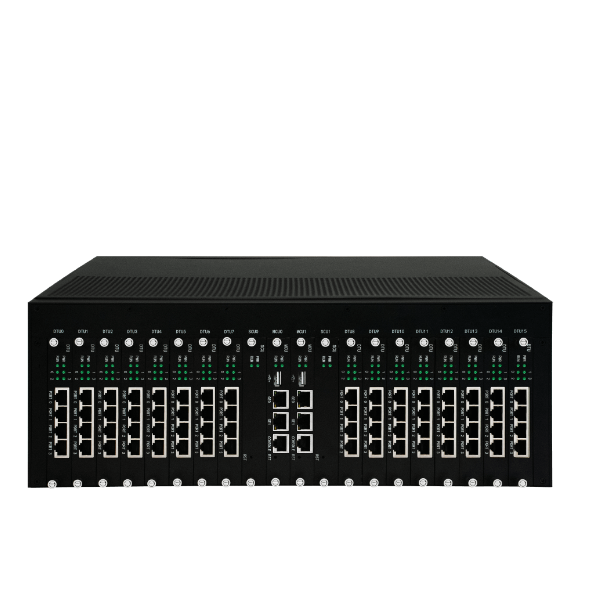

MTG5000 is a new-generation intelligent VoIP gateway, and it is purposely designed for large enterprise network, call center and Telcom service provider to connect with E1/T1 network interfaces. It is developed with the aspect of powerful call control features and maintenance tools. MTG5000 supports high density calls with a very stable system support. It also provides carrier-grade VoIP and FoIP services, as well as value-added functions such as fax modem and voice recognition service.
MT5000 supports a range of signaling protocols, offers the connection between SIP and traditional PSTN signaling like SS7 and PRI. It supports multiple codec formats, offers signaling encryption and ASR interface. MTG500 can be implemented with large call center solution, telephone system or IP PBX and service provider for IP/PSTN call services.
|
MTG Series
|
Model Options
|
Description
|
|
MTG200
|
MTG200-1E1
MTG200-2E1 MTG200-4E1 |
1E1/1T1, 30 Calls
2E1/1T1, 60 Calls 4E1/1T1, 120 Calls on G.711, 60 calls G.723, G.729 |
|
MTG1000B
|
MTG1000B-1E1
MTG1000B-2E1 |
1E1/1T1, 30 Calls
2E1/1T1, 60 Calls |
|
MTG2000
|
MTG2000-4E1
MTG2000-8E1 MTG2000-12E1 MTG2000-16E1 MTG2000-20E1 |
4E1/1T1, 120 Calls
8E1/1T1, 240 Calls 12E1/1T1, 360 Calls 16E1/1T1, 480 Calls 20E1/1T1, 600 Calls |
|
MTG3000
|
MTG3000-16E1
MTG3000-32E1 MTG3000-48E1 MTG3000-63E1 |
STM-1, 512Calls
STM-1, 1024 Calls STM-1, 1536 Calls STM-1, 2016 Calls |
Details Images
key features
Carrier grade hardware design, 1+1 power supply and hardware-based HA Highly scalable and compact design structure, support up to 64 E1 ports(MAX) in 3.5U size Support flexible dialing rules and operations, allowing users to customize dialing rules according to different call routing environments Support multiple codec formats: G.711A/U, G.723.1, G.729A/B and iLBC Very good compatibility, and be workable with Avaya PBX, NEC and Alcatel, and large soft-switch from Huawei, Cisco and ZTE etc.
Project Scenario
Product Paramenters
Physical Interfaces
E1/T1 Ports: 4~64 E1/T1
DTU Module: 4 E1/T1
Interface Type:
RJ48(Impedance 120Ω）
Ethernet Interface:
GE1: 10/100/1000 BaseT Adaptive Ethernet GE0: 10/100/1000 BaseT Adaptive Ethernet Serial Port:
1* RS232, 115200bps
1* USB2.0
PSTN
ISDN PRI
23B+D(T1),30B+D(E1),NT or TE
ITU-T Q.921, ITU-T Q.931, Q.Sig
Signal 7/SS7
ITU-T, ANSI，ITU-CHINA
MTP1/MTP2/MTP3, TUP/ISUP
E1 Frame Type : DF,CRC-4,CRC_ITU
T1 Frame Type :
2-Frame Multi-frame (F12, D3/4) Extended Super-frame (F24, ESF) Line Codes:
E1:HDB3 T1:B8ZS
Clock : Local/Remote Clock Source
Voice Capabilities
Codecs:G.711a/μ law,G.723.1, G.729A/B, iLBC, AMR
Silence Suppression Comfort Noise
Voice Activity Detection
Echo Cancellation (G.168),with up to 128ms Adaptive Dynamic Buffer
Voice ,Fax Gain Control FAX:T.38 and Pass-through Support Modem/POS
DTMF Mode: RFC2833/Signal/In-band Clear Channel/Clear Mode
VoIP Protocol
SIP v2.0 (UDP/TCP),RFC3261
SDP,RTP(RFC2833), RFC3262,
3263,3264,3265,3515,2976,3311
SIP TLS/SRTP
RTP/RTCP, RFC2198, 1889
SIP-T,RFC3372, RFC3204, RFC3398
SIP Trunk Work Mode : Peer/Access
SIP/IMS Registration :With up to 2000 SIP Accounts
NAT: Dynamic NAT, Rport
Call Features
Local/Transparent Ring Back Tone Overlapping Dialing
Dialing Rules, with up to 2000
PSTN group by E1 port or E1 Timeslot IP Trunk Group Configuration
Voice Codecs Group
Caller and Called Number Whitelists Caller and Called Number Blacklists Access Rule Lists
IP Trunk Priority
Maintenance
Web GUI Configuration Data Backup/Restore PSTN Call Statistics SIP Trunk Call Statistics
Firmware Upgrade via TFTP/FTP/Web Network Capture
SNMP v2
Syslog:
Debug, Info, Error, Warning , Notice Call History Records via Syslog
NTP Synchronization
Centralized Management System
Call Routing Features
Flexible Route Methods
PSTN-PSTN, PSTN-IP, IP-PSTN
Intelligent Routing Rules Call Routing base on Time
Call Routing base on Caller/Called Prefixes 256 Route Rules for each Direction
Caller and Called Number Manipulation
Environmental
1+1 Redundancy Power Supply Power Supply: 100-240VAC, 50-60 Hz Power Consumption:125W
Operating Temperature:0 ℃ ~ 45 ℃ Storage Temperature: -20 ℃ ~80 ℃ Humidity:10%-90% Non-Condensing Dimensions(W/D/H): 437*345*154mm(3.5U)
Unit Weight: 12.8kg
Compliance: CE, FCC
