Led Floor Interactive Dance Floor Video Tile Led Display Screen

Led Floor Interactive Dance Floor Video Tile Led Display Screen

FOB Reference Price: Get Latest Price

≥1 Pieces

US $380.8

≥50 Pieces

US $366.9

≥100 Pieces

US $356.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color:: Full Color

Panel Size:: 500*1000mm, 500*1000mm

Place of Origin:: Shenzhen, China

Model Number:: TLI3.91

Specification:: P3.91 Interactive Floor LED Screen

Brightness:: 900-1800CD/m², 900-1800CD/m²

pixel density:: 65536dots/sqm, 65536dots/sqm

Lifespan (hours):: 100,000, 100,000

IP Rating:: IP54/IP45, IP54/IP45

Resolution:: 128*256 (based on 500x1000mm led panel)

View Angle（H/V）:: 160°/160°, 160°/160°

Product Name:: Interactive Dance Floor Video Tile Led Display Screen

Display Function:: Videos, Images, Texts, etc

Supported Fixel Pitches:: 2.6mm, 2.976mm, 3.91mm, 4.81mm

Interactive Tech.:: Laser or Insert Chips

LEDs:: SMD1921

Panel Weight:: 23kg/Panel

Load-bearing Capacity:: 2200kg/sqm

Refresh Rate:: 3840Hz

Gamma Coefficient:: -5.0~+5.0

Warranty:: 5 Years

Quick Details

Application:: Indoor

Type:: LED

Brand Name:: DTVISION

Color:: Full Color

Panel Size:: 500*1000mm, 500*1000mm

Place of Origin:: Shenzhen, China

Model Number:: TLI3.91

Specification:: P3.91 Interactive Floor LED Screen

Brightness:: 900-1800CD/m², 900-1800CD/m²

pixel density:: 65536dots/sqm, 65536dots/sqm

Lifespan (hours):: 100,000, 100,000

IP Rating:: IP54/IP45, IP54/IP45

Resolution:: 128*256 (based on 500x1000mm led panel)

View Angle（H/V）:: 160°/160°, 160°/160°

Product Name:: Interactive Dance Floor Video Tile Led Display Screen

Display Function:: Videos, Images, Texts, etc

Supported Fixel Pitches:: 2.6mm, 2.976mm, 3.91mm, 4.81mm

Interactive Tech.:: Laser or Insert Chips

LEDs:: SMD1921

Panel Weight:: 23kg/Panel

Load-bearing Capacity:: 2200kg/sqm

Refresh Rate:: 3840Hz

Gamma Coefficient:: -5.0~+5.0

Warranty:: 5 Years

Product Description

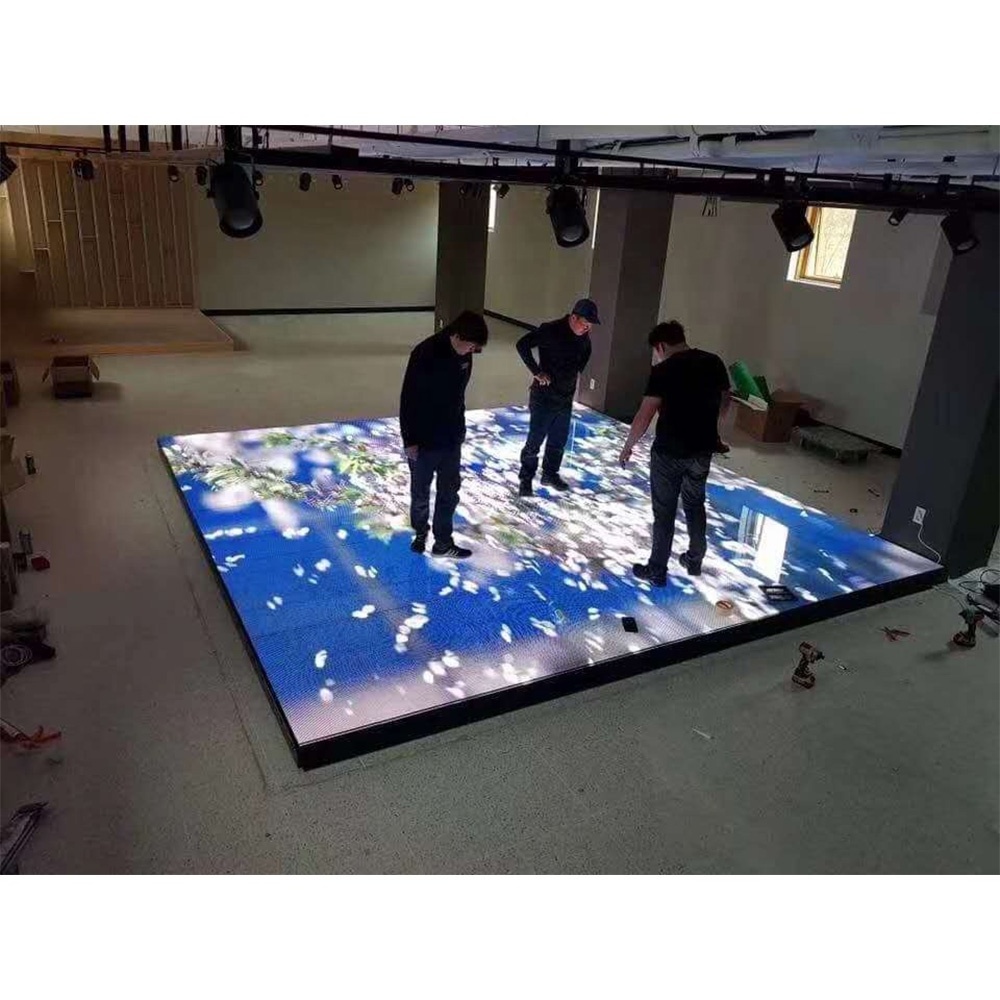

Interactive Floor LED Screen

Pixel Pitches for Option: 2.6mm, 2.976mm, 3.91mm, 4.81mm

Panel Sizes: 500*1000*80mm (500x500mm for option)

Interactive Technology : insert chips

Installation : supporting legs

*Product Model*	TXI2.6	TXI2.9	TXI3.91	TXI4.81
*Pixel Pitch*	2.6mm	2.976mm	3.91mm	4.81mm
*LEDs*	SMD1415	SMD1415	SMD1921	SMD1921
*Pixel Density*	147456dot/m2	112896dot/m2	65536dot/m2	43264dot/m2
*Panel Size*	500100080mm	500100080mm	500100080mm	500100080mm
*Panel Weight*	23kg/Panel	23kg/Panel	23kg/Panel	23kg/Panel
*Protection Grade (front/back)*	IP54/IP45	IP54/IP45	IP54/IP45	IP54/IP45
*Contrast Ratio*	>3000:1	>3000:1	>3000:1	>3000:1
*Brightness*	900-1800CD/m²	900-1800CD/m²	900-1800CD/m²	900-3000CD/m²
*Viewing Angle*	160°/160°	160°/160°	160°/160°	160°/160°
*Load-bearing Capacity*	2200kg/m2	2200kg/m2	2200kg/m2	2200kg/m2
*Gray Scale*	16bit	16bit	16bit	16bit
*Color Type*	16.7M	16.7M	16.7M	16.7M
*Max. Power Consumption*	200W/m²	400W/m²	400W/m²	400W/m²
*Ave. Power Consumption*	100W/m²	200 W/m²	200 W/m²	200 W/m²
*Refresh Rate*	3840HZ	3840HZ	3840HZ	3840HZ
*Gamma Coefficient*	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0
*Brightness Adjustment*	0 - 100 levels adjustable
*Control Mode*	Synchronous display with control PC by DVI
*Supported Signal Input*	Composite, S-Vido, Component, VGA, DVI, HDMI, HD_SDI
*Input Voltage*	AC100~240 50/60HZ
*Working Temperature*	-20℃~+50℃
*Working Humidity*	10~95% RH
*Working Life*	100,000hours
