Quick Details
-
Range of Spindle Speed(r.p.m):
-
25 - 1600 r.p.m
-
Width of bed (mm):
-
380mm
-
Max. Turned Length (mm):
-
3000 mm
-
Spindle Motor Power(kW):
-
7.5
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sumore
-
Model Number:
-
SN50C
-
Voltage:
-
As Customer's Requirement
-
Dimension(L*W*H):
-
2900*1120*1460mm
-
Weight (KG):
-
3110 KG
-
Marketing Type:
-
New Product 2024
-
Max. swing dia. over bed:
-
500mm
-
Max. distance between two centers:
-
1000/1500/2000mm
-
Max. swing dia. over cross slide:
-
270mm
-
Max. swing dia. over gap:
-
700mm
-
Max. workpiece weight between center:
-
300kg
-
Spindle bore:
-
52mm
-
Taper hole of tailstock:
-
MT5
-
Main motor power:
-
5.5kw
-
Overall dimensions (L*W*H):
-
2640, 3145, 3630*1100*1505mm
-
Machine weight:
-
1735/1835/1950kgs
Quick Details
-
Max. Length of Workpiece (mm):
-
1000/1500/2000/3000 mm
-
Machining Capacity:
-
Heavy Duty
-
Spindle Bore(mm):
-
82 mm/105mm
-
Range of Spindle Speed(r.p.m):
-
25 - 1600 r.p.m
-
Width of bed (mm):
-
380mm
-
Max. Turned Length (mm):
-
3000 mm
-
Spindle Motor Power(kW):
-
7.5
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Sumore
-
Model Number:
-
SN50C
-
Voltage:
-
As Customer's Requirement
-
Dimension(L*W*H):
-
2900*1120*1460mm
-
Weight (KG):
-
3110 KG
-
Marketing Type:
-
New Product 2024
-
Max. swing dia. over bed:
-
500mm
-
Max. distance between two centers:
-
1000/1500/2000mm
-
Max. swing dia. over cross slide:
-
270mm
-
Max. swing dia. over gap:
-
700mm
-
Max. workpiece weight between center:
-
300kg
-
Spindle bore:
-
52mm
-
Taper hole of tailstock:
-
MT5
-
Main motor power:
-
5.5kw
-
Overall dimensions (L*W*H):
-
2640, 3145, 3630*1100*1505mm
-
Machine weight:
-
1735/1835/1950kgs
Product Description

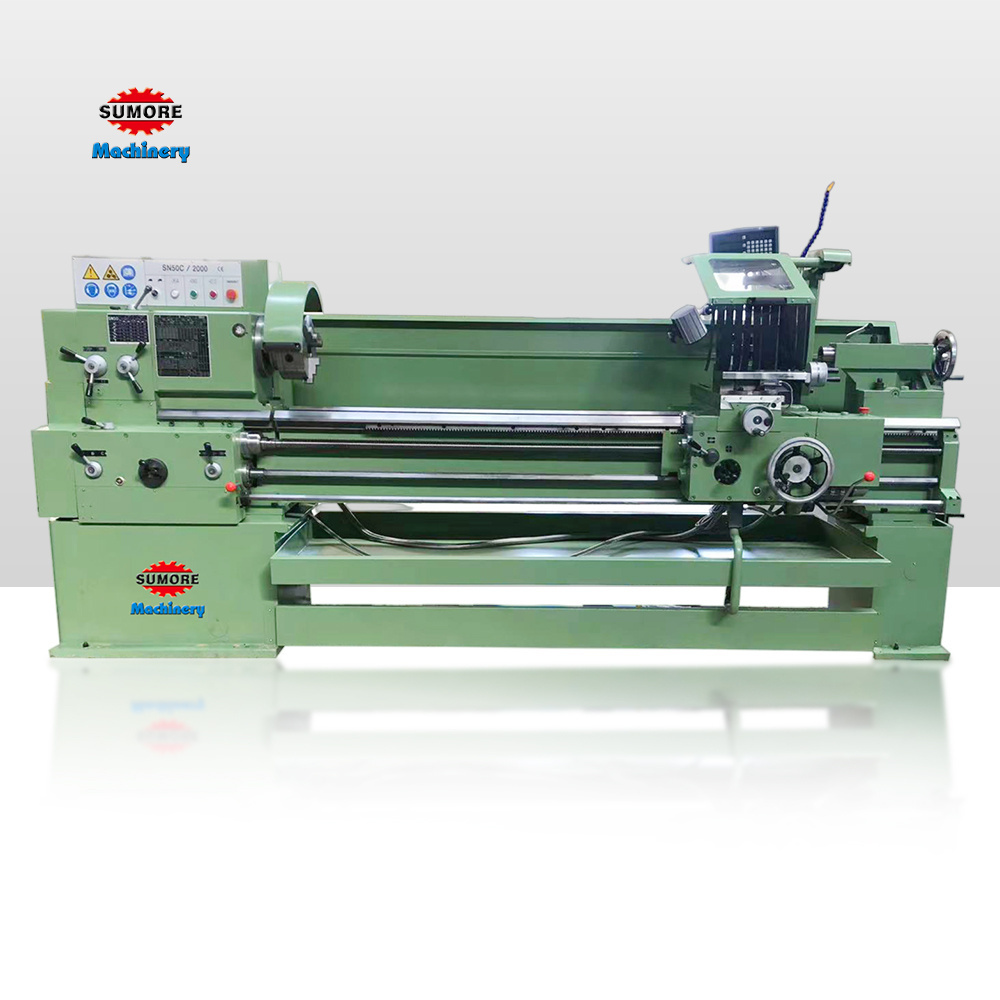

Factory 500*1000/1500/2000mm Heavy Duty Horizontal Universal Center Engine Lathe Machine Torno SN50 SN50B SN50C
Quick Detail:
Main specification of horizontal lathe machine:
Processing material: aluminum, copper, metal etc.
Workpiece length: 1000/1500/2000mm
Swing over bed: 500mm
Spindle bore: 52mm
Main specification of horizontal lathe machine:
Processing material: aluminum, copper, metal etc.
Workpiece length: 1000/1500/2000mm
Swing over bed: 500mm
Spindle bore: 52mm
Standard accessories:
Follow rest, steady rest, face plate, 3 jaw chuck, 4 jaw chuck, coolant system, dead center and sleeve, thread chasing dial, work light, change gears set, tool box with tools
Specifications
|
Specification
|
SN50C
|
|
|
CAPACITY
|
|
|
|
Max. swing over bed
|
500mm
|
|
|
Max. swing over cross slide
|
270mm
|
|
|
Max. swing over the bed gap
|
700mm
|
|
|
Effective gap length
|
357mm
|
|
|
Max. length of workpiece
|
1000/1500/2000mm
|
|
|
Width of bed
|
340mm
|
|
|
SPINDLE
|
|
|
|
Spindle nose
|
C6
|
|
|
Spindle bore
|
φ52mm
|
|
|
Taper of spindle bore
|
MT6
|
|
|
Range of spindle speed(stepless)
|
22-2000rpm
|
|
|
FEEDS
|
|
|
|
Etric threads – number/pitch
|
29/0,5–40 Nr./mm
|
|
|
Whitworth threads – number/pitch
|
38/1–80 Nr./TPI
|
|
|
Modular threads – number/pitch
|
26/0,25–20 Nr./mm
|
|
|
Diametral Pitch threads–number/number of DP threads
|
31/2–72 Nr./Nr.
|
|
|
Cross slide working traval
|
300 mm
|
|
|
Z axis travel
|
500/750/1000mm
|
|
|
Tool slide working traval
|
140mm
|
|
|
Max. section of tool
|
32x32mm
|
|
|
TAISTOCK
|
|
|
|
Tailstock sleeve diameter
|
φ70mm
|
|
|
Tailstock sleeve stroke
|
180mm
|
|
|
Taper of tailstock spindle center hole
|
MT5
|
|
|
MOTOR
|
|
|
|
Main motor power
|
5.5 kw
|
|
|
Coolant pump power
|
120w
|
|
|
DIMENSION AND WEIGHT
|
|
|
|
Parking size LxWxH
|
3720 X 1120 X1905mm
|
|
|
Net weight
|
1735/1835/1950kgs
|
|
|
Groos weight
|
1935/2035/2250kgs
|
|
Product detail pictures
The surface of lathe machine is supersonic frequency hardened and precision ground. Head stock gears are ground precisely and are hardened to reduce noise. Integrated stand ensures the machine high working rigidity. Variable speed is optional.
1). Bed rail by super audio quenching and precision grinding;
2). Precision grinding of the main shaft box, low noise;
3). More thread type;
4). Electrical safety performance is good, high reliability;
5). With electromagnetic brake, the color of available options;
1). Bed rail by super audio quenching and precision grinding;
2). Precision grinding of the main shaft box, low noise;
3). More thread type;
4). Electrical safety performance is good, high reliability;
5). With electromagnetic brake, the color of available options;
