CE ISO lab Graphitization furnace 3000 degrees induction furnace for graphite purification VGCF and carbon nanotube purify
CE ISO lab Graphitization furnace 3000 degrees induction furnace for graphite purification VGCF and carbon nanotube purify
CE ISO lab Graphitization furnace 3000 degrees induction furnace for graphite purification VGCF and carbon nanotube purify
CE ISO lab Graphitization furnace 3000 degrees induction furnace for graphite purification VGCF and carbon nanotube purify
CE ISO lab Graphitization furnace 3000 degrees induction furnace for graphite purification VGCF and carbon nanotube purify
CE ISO lab Graphitization furnace 3000 degrees induction furnace for graphite purification VGCF and carbon nanotube purify
CE ISO lab Graphitization furnace 3000 degrees induction furnace for graphite purification VGCF and carbon nanotube purify
CE ISO lab Graphitization furnace 3000 degrees induction furnace for graphite purification VGCF and carbon nanotube purify

CE ISO lab Graphitization furnace 3000 degrees induction furnace for graphite purification VGCF and carbon nanotube purify

FOB Reference Price: Get Latest Price
≥1 Sets
US $49000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
380V 400V 415V 480V
Dimension(L*W*H):
126*148*276
Weight (T):
1.5 T
Power (kW):
60
Applicable Industries:
carbon material research, graphite material research, advanced ceramic research, new materials research, lithium battery anode material research, chemical industry research, science and technology research, CC carbon carbon composites research
Product Name:
Laboratory Furnace
Model:
CX-GF-20/30 VT
Max temperature:
3000C
Heating method:
Induction Method
Furnace type:
Vertical, top loading
Application:
Graphene Research
Capacity:
10L
After-sales Service Provided:
Field installation, commissioning and training
After Warranty Service:
Online Video technical support
Certification:
ISO; CE

Quick Details

Place of Origin:
Hunan, China
Marketing Type:
New Product 2022
Brand Name:
CX-Induction
Voltage:
380V 400V 415V 480V
Dimension(L*W*H):
126*148*276
Weight (T):
1.5 T
Power (kW):
60
Applicable Industries:
carbon material research, graphite material research, advanced ceramic research, new materials research, lithium battery anode material research, chemical industry research, science and technology research, CC carbon carbon composites research
Product Name:
Laboratory Furnace
Model:
CX-GF-20/30 VT
Max temperature:
3000C
Heating method:
Induction Method
Furnace type:
Vertical, top loading
Application:
Graphene Research
Capacity:
10L
After-sales Service Provided:
Field installation, commissioning and training
After Warranty Service:
Online Video technical support
Certification:
ISO; CE

CE ISO Graphitization furnace 3000 degrees induction furnace for graphite purification VGCF and carbon nanotube purify
Product Description

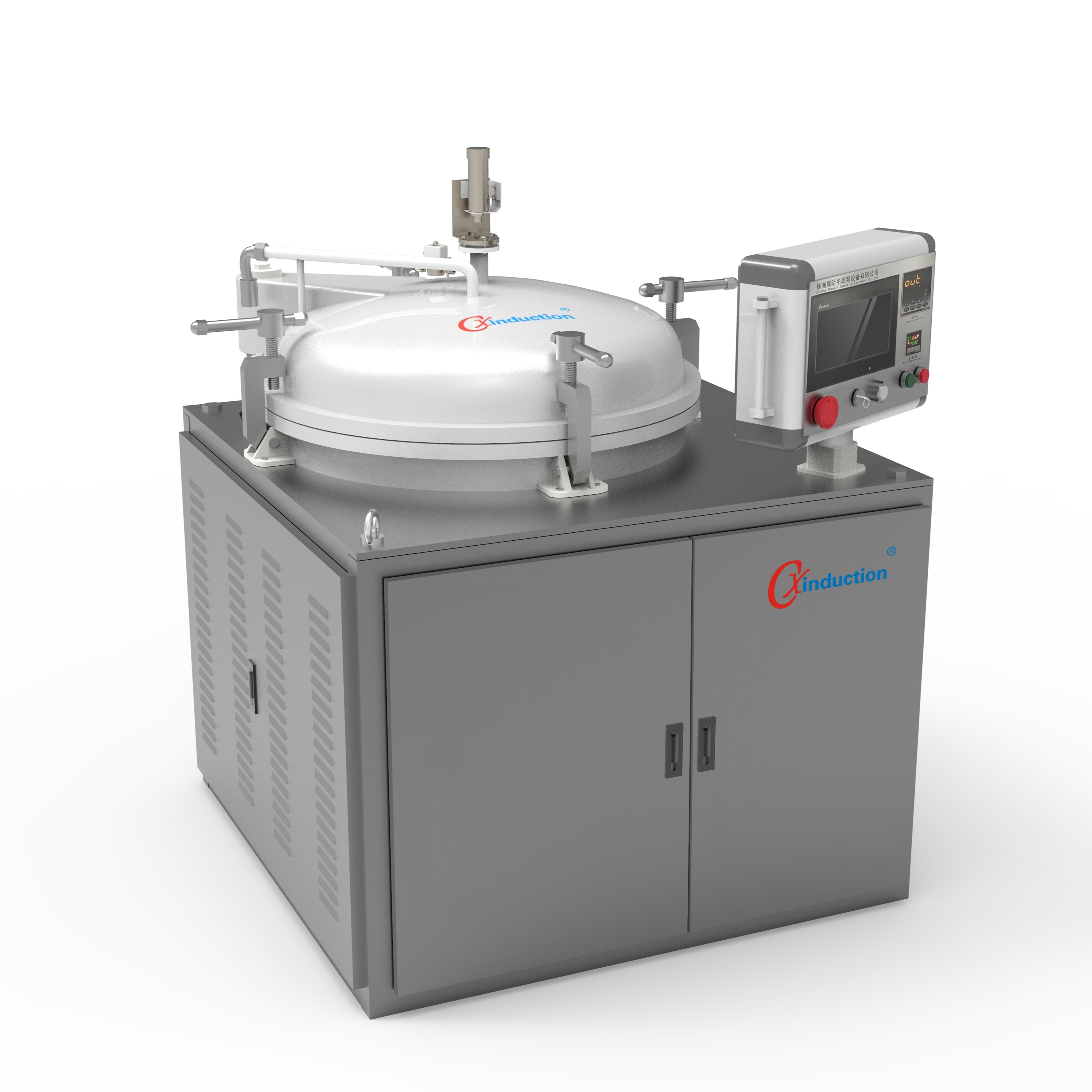

CE ISO 3000C Induction Type Laboratory Vacuum Furnace Small Induction Type Graphitization Furmace
CX-GF- 20/30 VT is vertical top loading induction heating furnace with round hot zone shape. This model is ideal for various research applications and new materials development. Simple operation and easy maintenance process of this furnace, save time and budget in research projects. With maximum operating temperature of 3200 ℃, this model can be used for many applications.
Model
CX-GF 20/30 VT
Configuration
Vertical, Top loading
Max. Working Temperature
3000℃ /3200 ℃
Continuous Working Temperature
2850℃-3000 ℃
Usable Space (mm)
Dia. * H: Φ200*300
Heating Power
≤ 60 KW
Frequency
4000 Hz (auto-track)
Ultimate Vacuum
1.2 * 10-3 mbar
Optional High Vacuum
5 * 10-5 mbar
Working Atmosphere
High Vacuum (Optional) / Vacuum / Inert Gas (Ar or N2)
Supply Power
3 N/PE, AC/380V, 50/60Hz
Cooling Water Pressure
1.5 - 2.5 bar
Cooling Water Temperature
≤ 28℃
Overall Dimension (L*W*H, mm)
Overall Dimension (L*W*H, mm)
Weight (KG)
1500

Specification:

Furnace operation mode: PID auto/man operation Materials processing volume: 10-50-100 -1000L/batch (can be customized) Purifying gas: Argon (Ar ≥1800℃ ) and Nitrogen (N2) Furnace vacuum level: Medium to high (can be customized with different pumps) Furnace working temperature: 1500-3000 Deg C. Energy efficient and environmental friendly
Integrated design with National patents and CE ISO certifications
Compact structure and small footprint, ideal for University lab use Ideal for university lab use Structure is compact, small footprint
Main Application:
Carbonization and Graphitization treatment of carbon materials, like synthetic graphite film (Polyimide graphite flake and abbreviated PI film), carbon fiber, C/C composites, Graphene, Lithium battery negative electrode materials, VGCF negative material, etc. Purification of Carbon Nanotube (CNT), Natural Graphite, etc. Sintering of high temperature ceramics, other
materials which can be sintered or heated in graphite hot zone (carbon included environment).
Furnace Structure
Related Products
Packing&Shipping
We have more than ten years of exporting experience.
We have long term cooperation freight forwarding in exporting, customs declaration line.
We can choose the best and economy transport way for you.
After Sales Service
Company Introduction
Founded in June 2003, Zhuzhou Chenxin Induction Equipment Co.,Ltd is a scientific and technological enterprise relying on semiconductor converting technology. We has always been commitied to the manufacturer of various industrial furnace products, and have won several provincial technological progress awards and patent certificates. Our products have been exported to Vietnam, Thailand, Sayria, South Africa, Japan, Korea, USA and other countries as well as more than 20 domestic provinces and cities.
