Quick Details
-
Application:
-
Railway and highway embankments
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Binbo
-
Model Number:
-
TGB
-
Color:
-
White
-
Material:
-
100% Polyester
-
Length:
-
50-100m/roll (at Request)
-
Width:
-
1-8m
-
Weight:
-
100-1000g/sqm
-
Certificate:
-
ISO9001/ISO14001
-
Usage:
-
dam,civil environmental,construction project,etc
-
Elongation at break:
-
25-100%
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
NONE
-
Project Solution Capability:
-
Others
-
Application:
-
Railway and highway embankments
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Binbo
-
Model Number:
-
TGB
-
Color:
-
White
-
Material:
-
100% Polyester
-
Length:
-
50-100m/roll (at Request)
-
Width:
-
1-8m
-
Weight:
-
100-1000g/sqm
-
Certificate:
-
ISO9001/ISO14001
-
Usage:
-
dam,civil environmental,construction project,etc
-
Elongation at break:
-
25-100%
Video Description
Products Description

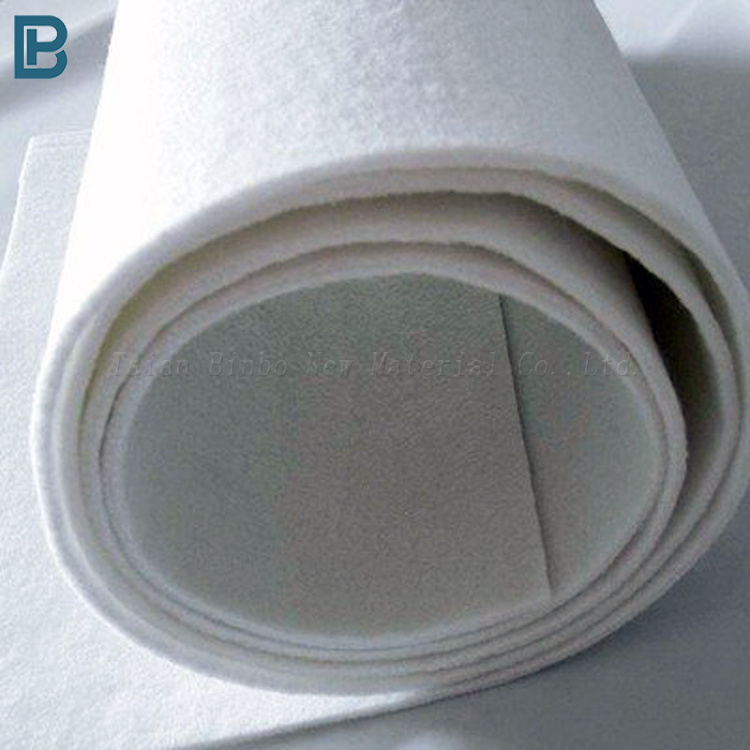

Non-woven geotextile:
Non-woven geotextile is made up of filament or short fibers through different equipment and process arrangement reticulate, after acupuncture, etc to give different fiber interwoven together, mutual tangles fixation make normalized fabric, fabric soft, rich,full-bodied, softness, to meet the needs of different thickness.Non-woven geotextile clearance, has the very good fabric has good adhesion, because the fiber has a certain ability to resist tearing soft deformation at the same time has the very good adaptability, have good surface drainage capability at the same time, the soft surface more clearance has good friction
coefficient increases the adhesion ability of soil particles and so on, can prevent the fine particles by preventing the loss of the particulate matter also ruled out excess water, soft surface has good protection. According to use wire length is divided into filament non-woven geotextile or short silk non-woven geotextile.They can have very good filtering, isolation and the effect such as reinforcement, protection, is a kind of widely used geosynthetic materials.
Non-woven geotextile is made up of filament or short fibers through different equipment and process arrangement reticulate, after acupuncture, etc to give different fiber interwoven together, mutual tangles fixation make normalized fabric, fabric soft, rich,full-bodied, softness, to meet the needs of different thickness.Non-woven geotextile clearance, has the very good fabric has good adhesion, because the fiber has a certain ability to resist tearing soft deformation at the same time has the very good adaptability, have good surface drainage capability at the same time, the soft surface more clearance has good friction
coefficient increases the adhesion ability of soil particles and so on, can prevent the fine particles by preventing the loss of the particulate matter also ruled out excess water, soft surface has good protection. According to use wire length is divided into filament non-woven geotextile or short silk non-woven geotextile.They can have very good filtering, isolation and the effect such as reinforcement, protection, is a kind of widely used geosynthetic materials.
Specification
Short Fiber Needle Punched Nonwoven Geotextile
|
Weight
|
100g
|
150g
|
200g
|
250g
|
300g
|
400g
|
500g
|
600g
|
800g
|
||||||||
|
Weight Variation(%)
|
-8
|
-8
|
-8
|
-8
|
-7
|
-7
|
-6
|
-6
|
-6
|
||||||||
|
Thickness(mm)
|
0.9
|
1.3
|
1.7
|
2.1
|
2.4
|
3.0
|
3.6
|
4.1
|
5.0
|
||||||||
|
Width Variation(%)
|
-0.5
|
|
|
|
|
|
|
|
|
||||||||
|
Breaking Strength (MD and TD)(KN/m)
|
2.5
|
4.5
|
6.5
|
8.0
|
9.5
|
12.5
|
16.0
|
19.0
|
25.0
|
||||||||
|
Elongation at Break (MD and TD)(%)
|
25~100
|
|
|
|
|
|
|
|
|
||||||||
|
CBR Mullen Burst Strength(KN)
|
0.3
|
0.6
|
0.9
|
1.2
|
1.5
|
2.1
|
2.7
|
3.2
|
4.0
|
||||||||
|
Sieve Size O90(mm)
|
0.07~0.2
|
|
|
|
|
|
|
|
|
||||||||
|
Vertical Permeability Coefficient(cm/s)
|
k*(10-1~10-3) (k=1.0~9.9)
|
|
|
|
|
|
|
|
|
||||||||
|
Tear Strengh (MD and TD)(KN)
|
0.08
|
0.12
|
0.16
|
0.20
|
0.24
|
0.33
|
0.42
|
0.46
|
0.60
|
||||||||
Filament Fiber Needle Punched Nonwoven Geotextile
|
Weight
|
100g
|
150g
|
200g
|
250g
|
300g
|
400g
|
500g
|
600g
|
800g
|
||||||||
|
Weight Variation(%)
|
-6
|
-6
|
-6
|
-5
|
-5
|
-5
|
-4
|
-4
|
-4
|
||||||||
|
Thickness(mm)
|
0.8
|
1.2
|
1.6
|
1.9
|
2.2
|
2.8
|
3.4
|
4.2
|
5.5
|
||||||||
|
Width Variation(%)
|
-0.5
|
|
|
|
|
|
|
|
|
||||||||
|
Breaking Strength (MD and TD)(KN/m)
|
4.5
|
7.5
|
10.0
|
12.5
|
15
|
20.5
|
25.0
|
30.0
|
40.0
|
||||||||
|
Elongation at Break (MD and TD)(%)
|
40~80
|
|
|
|
|
|
|
|
|
||||||||
|
CBR Mullen Burst Strength(KN)
|
0.8
|
1.4
|
1.8
|
2.2
|
2.6
|
3.5
|
4.7
|
5.5
|
7.0
|
||||||||
|
Sieve Size O90(mm)
|
0.07~0.2
|
|
|
|
|
|
|
|
|
||||||||
|
Vertical Permeability Coefficient (cm/s)
|
K*(10-1-10-3) (K=1.0~9.9)
|
|
|
|
|
|
|
|
|
||||||||
|
Tear Strength (MD and TD)(KN)
|
0.14
|
0.21
|
0.28
|
0.35
|
0.42
|
0.56
|
0.70
|
0.82
|
1.10
|
||||||||
Product Application
1.Separation of different material:applied between subgrade and groundwork of the paved(un-paved) roador airport road.Applied between the subgrade and ballast of the railway,applied in the landfill ground and gravelsubgrad,applied between the geomembrane and sandy drainage layer,applied between the subgrade and ground work to undertake the additional load.Applied between the earth of groundwork and foundation soil,applied under footpath,parking lot,stadium,applied between the new and old asphalt.
2.Reinforcement of the soft foundation:applied on the soft foundation of the unpaved road,the airport path,railroad,the landfill,the stadium,etc prevent the geomembrane to be punctured by the gavel.
3.Filtration:applied at the bottom of the landfill that penetrate,to protect the geonet and geocomposite and prevent the soil to enter inside.
4.Drainage:applied under the geomembrane,the stadium,the ballast of the railway.
2.Reinforcement of the soft foundation:applied on the soft foundation of the unpaved road,the airport path,railroad,the landfill,the stadium,etc prevent the geomembrane to be punctured by the gavel.
3.Filtration:applied at the bottom of the landfill that penetrate,to protect the geonet and geocomposite and prevent the soil to enter inside.
4.Drainage:applied under the geomembrane,the stadium,the ballast of the railway.
