Quick Details
-
Weight:
-
customized
-
Size:
-
customized
-
Power:
-
<1
-
Productivity:
-
0-30000m3/h
-
Weight (KG):
-
100 kg
-
Flow rate:
-
300-30000 T/H
-
Control type:
-
PLC control
-
Pump:
-
Metering pump
-
Application:
-
cooling water,chilled water,ice storage system
-
Function:
-
corrosion&scale inhibition, sterilization and algae removal
-
Type:
-
One tank One pump;Two tank Two pump;Three tank Three pump
-
Conductivity meter:
-
optional
-
Concentration detector:
-
optional
-
ORP:
-
optional
-
PH meter:
-
optional
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Peide
-
Material:
-
carton box
-
Weight:
-
customized
-
Size:
-
customized
-
Power:
-
<1
-
Productivity:
-
0-30000m3/h
-
Weight (KG):
-
100 kg
-
Flow rate:
-
300-30000 T/H
-
Control type:
-
PLC control
-
Pump:
-
Metering pump
-
Application:
-
cooling water,chilled water,ice storage system
-
Function:
-
corrosion&scale inhibition, sterilization and algae removal
-
Type:
-
One tank One pump;Two tank Two pump;Three tank Three pump
-
Conductivity meter:
-
optional
-
Concentration detector:
-
optional
-
ORP:
-
optional
-
PH meter:
-
optional
Product Paramenters
|
Chemical tank volume
|
100/200/500/1000 Liters
|
|
Chemical tank material
|
PE/SUS316L
|
|
Water quality monitor
|
pH/orp/conductivity/chlorine monitor
|
|
Power supply
|
110-240V/50,60Hz/1phase
|

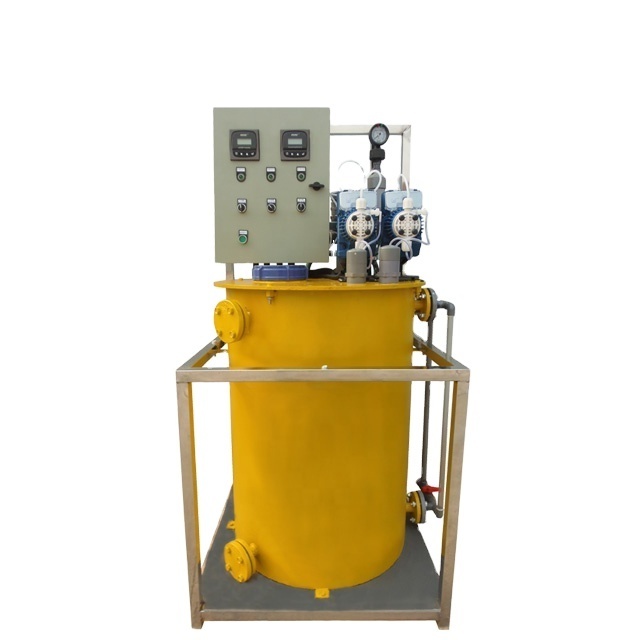

Chemical dosing system is widely applied in corrosion, scale inhibition, sterilization and algae removal of the circuiting water systems such as air-conditioning cooling water, chilled water, ice storage, etc.The chemical dosing system can also achieve the effect equivalent to the electronic descaling instrument.In the process of air conditioning circulating water and various purified water, the water quality always decides if the system can run efficiently for a long time.
Details Images
Equipment Model
|
Type
|
Volume of chemical tank(Liters)
|
Dimension
(LxW xH mm)
|
|
|
Flow rate of circulating water
(m
3
/h)
|
||
|
One tank with One pump
|
100
|
550
|
550
|
1250
|
no more than 300
|
||
|
One tank with One pump
|
200
|
650
|
650
|
1440
|
no more than 5000
|
||
|
One tank with One pump
|
500
|
910
|
910
|
1650
|
no more than 20000
|
||
|
One tank with One pump
|
1000
|
1140
|
1150
|
1800
|
no more than 30000
|
||
|
Two tank with Two pump
|
200
|
1250
|
650
|
1440
|
no more than 5000
|
||
|
Two tank with Two pump
|
500
|
1770
|
910
|
1650
|
no more than 20000
|
||
|
Two tank with Two pump
|
1000
|
2250
|
1150
|
1800
|
no more than 30000
|
||
|
Three tank with Three pump
|
200
|
1250
|
650
|
1440
|
no more than 5000
|
||
|
Three tank with Three pump
|
500
|
1770
|
910
|
1650
|
no more than 20000
|
||
|
Three tank with Three pump
|
1000
|
2250
|
1150
|
1800
|
no more than 30000
|
||
|
Three tank with Three pump
|
200
|
1850
|
650
|
1440
|
no more than 5000
|
||
|
Three tank with Three pump
|
500
|
2630
|
910
|
1650
|
no more than 20000
|
||
|
Three tank with Three pump
|
1000
|
3350
|
1150
|
1800
|
no more than 30000
|
||
Installation Instructions
Cooling tower system-open type
Chilled system-close type
