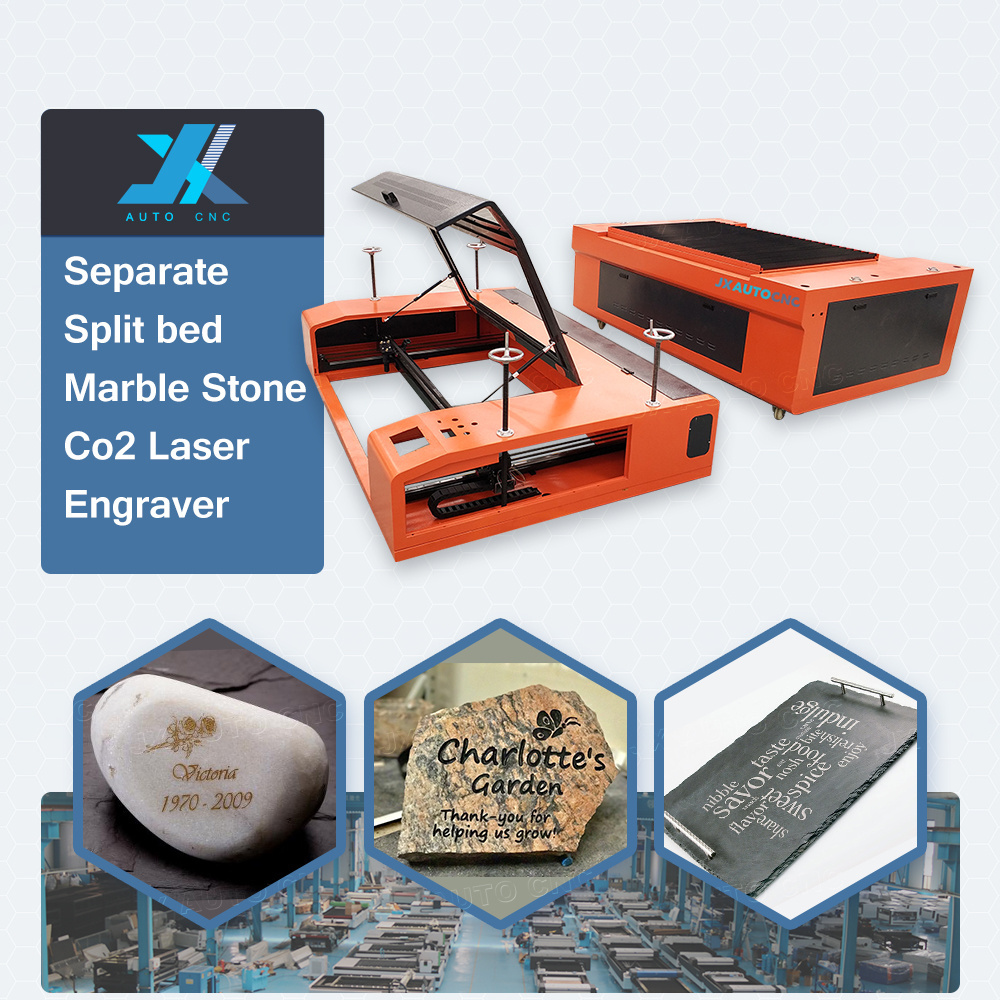

JX1610U Compact Co2 Motor lift Granite Laser Engraver
Divisible Stone Engraving Laser Engraving machine is developed for heavy materials. It brings great convenience to customers. The
machine is designed by upper part and lower part, and the two parts can be separated. The upper part can be moved down from the
machine, and the lower part can configure suitable platforms according to customers’ requirements. The
design changes the traditional engraving method.
For some heavy materials we can put the upper part onto them, so that avoiding the difficulty of moving heavy material.
- Product Details
- {{item.text}}
Quick Details
-
Control System Brand:
-
Ruida system
-
Cutting Area:
-
1300*2500mm
-
Cutting Thickness:
-
0-30mm, 0-30mm
-
Control Software:
-
Ruida Control System
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JX AUTO CNC tombstone photo laser engraving
-
Weight (KG):
-
800 KG
-
Core Components:
-
tombstone photo laser engraving machine
-
Laser power:
-
150W
-
Product name:
-
JX AUTO CNC tombstone photo laser engraving machine
-
Voltage:
-
220V/110V
-
Function:
-
engrave and cut nonmetal
-
Working table:
-
Knife Working Table
-
Resolution ratio:
-
<0.01mm
-
Location precision:
-
<0.01mm
-
Resetting positioning accuracy:
-
0.01mm
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-600mm/s, 0-600mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Ruida system
-
Cutting Area:
-
1300*2500mm
-
Cutting Thickness:
-
0-30mm, 0-30mm
-
Control Software:
-
Ruida Control System
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JX AUTO CNC tombstone photo laser engraving
-
Weight (KG):
-
800 KG
-
Core Components:
-
tombstone photo laser engraving machine
-
Laser power:
-
150W
-
Product name:
-
JX AUTO CNC tombstone photo laser engraving machine
-
Voltage:
-
220V/110V
-
Function:
-
engrave and cut nonmetal
-
Working table:
-
Knife Working Table
-
Resolution ratio:
-
<0.01mm
-
Location precision:
-
<0.01mm
-
Resetting positioning accuracy:
-
0.01mm
Products Description
Headstone marble stone granite pictures co2 laser engraver printer engraving machine
Meanwhile, it solves the problem that platform has a limited bearing ability. Both parts can be up and down so that engraving objects with greatly thickness changing is much easier to process.
With unique design, excellent technique, our divisible style laser engraving machines are popular in marble engraving industry and many heavy material engraving industries.
With unique design, excellent technique, our divisible style laser engraving machines are popular in marble engraving industry and many heavy material engraving industries.
Product Paramenters
|
Model
|
JX1390U/JX1610U
|
|
Working area
|
130cm*90cm(51.18in*35.43in)
160cm*100cm(62.99in*39.37in) |
|
Equipment size
|
2370x1750x650mm/93.30x68.89x25.59in(LxWxH)
2680x1870x630mm/105.50x73.62x24.80in(LxWxH) |
|
Laser power
|
70W/80W/90W/100W
|
|
Laser type
|
CO2 sealed laser tube, water-cooled, 10.6um
|
|
Engraving speed
|
0-70000mm/min
|
|
Cutting speed
|
0-40000mm/min
|
|
Laser output control
|
1-100% software setting
|
|
Communication interface
|
USB
|
|
Smallest Character Engraving
|
English 1.0mm*1.0mm
|
|
Locating Precision
|
≤±0.01mm
|
|
Highest Scanning precision
|
4000DPI
|
|
Operating temperature
|
0 - 45°C
|
|
Cooling type
|
Water cooling
|
|
Power supply
|
220V/50HZ , 110V/60HZ
|
|
Graphic format supported
|
BMP, PLT, DST, DXF, AI
|
|
Software supported
|
CorelDraw, PhotoShop, AutoCAD,TAJIMA
|
|
Driving system
|
3 phase stepper motor
|
|
Gross weight
|
489Kgs
|
|
Optional Parts
|
1.Metal slat worktable 2. Rotary tool with rollers 3. Red dot positioner 4. Auto focus
|
Details Images
control panel
Adopt the off-line motion control system which need not be connected to PC operation. Use USB data import, can reserve many
processing documents.
Laser head with CCD
The camera can identify the whole work table design and cutting. can auto-generated the graphics according to the pattern on the fabric, automatic cutting no need drawing.
RECI laser tube
This CO2 Laser Tube has an inlet and outlet for water cooling and wire connections
for the anode and cathode sides of the tube.
more precise markings on a wide
variety of materials.
Structure maching process
Sample & Application
Applicable materials:
Marble, stone, tomb stone, wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries:
Advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper
industry.
