Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
NEWDOSE
-
Model Number:
-
DM-15-03-X
-
Place of Origin:
-
Beijing, China
-
Horsepower:
-
65w
-
Cable Length:
-
1.5m
-
Outlet Size:
-
G'
-
Power:
-
65W
-
Product name:
-
automatic control dosing pump
-
Flow rate:
-
15L/h
-
Max pressure:
-
3bar
-
Theory:
-
Electromagnetic Pump
-
Material:
-
PP
-
Check Valves:
-
PP
-
Seal:
-
FKM
-
Pipe Size:
-
6*9mm
-
Function:
-
4-20mA signal
Quick Details
-
Application:
-
Automotive Industry, Commercial Buildings, Developing World Water Solutions, Food and Beverage Industry, Industrial Utilities, Irrigation and Agriculture, Metal and Equipment Manufacturers, Raw Water Intake, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
3bar
-
Voltage:
-
220V
-
Warranty:
-
1 year
-
Brand Name:
-
NEWDOSE
-
Model Number:
-
DM-15-03-X
-
Place of Origin:
-
Beijing, China
-
Horsepower:
-
65w
-
Cable Length:
-
1.5m
-
Outlet Size:
-
G'
-
Power:
-
65W
-
Product name:
-
automatic control dosing pump
-
Flow rate:
-
15L/h
-
Max pressure:
-
3bar
-
Theory:
-
Electromagnetic Pump
-
Material:
-
PP
-
Check Valves:
-
PP
-
Seal:
-
FKM
-
Pipe Size:
-
6*9mm
-
Function:
-
4-20mA signal
|
Product Name
|

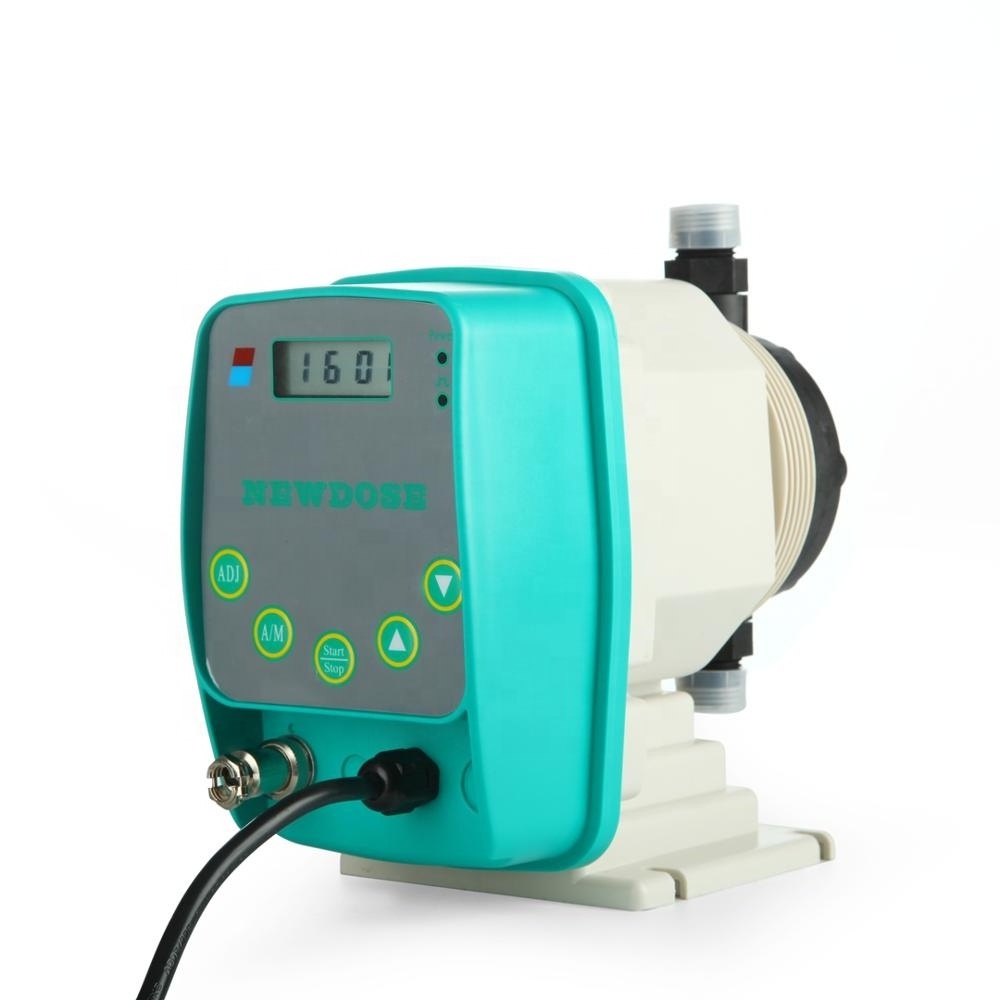

Newdose DM-15-03-X manual operation dosing/metering pump
|
|
Pump Type
|
DM-X
|
|
Model
|
DM-15-03-X
|
|
Specification
|
15 liter/ hour @ 3 Bar
|
|
Control Mode
|
Analogue operation, current signal (4-20mA)
|
|
Pump Material
|
PP / PVC
|
|
Diaphragm
|
PTFE
|
|
Electricity
|
220V 50Hz
|
|
Weight
|
3.8Kg
|
|
Model
|
Capacity
L/h
|
Pressure
bar
|
Working Frequency
times/min
|
Power
w
|
|
DM-02-16-X
|
2
|
16
|
120
|
65
|
|
DM-06-07-X
|
6
|
7
|
120
|
65
|
|
DM-09-07-X
|
9
|
7
|
120
|
65
|
|
DM-12-07-X
|
12
|
7
|
120
|
65
|
|
DM-15-03-X
|
15
|
3
|
120
|
65
|
|
DM-20-03-X
|
20
|
3
|
160
|
65
|
|
DM-30-03-X
|
30
|
3
|
160
|
65
|
|
DM-50-02-X
|
50
|
2
|
240
|
65
|
Manual control, adjustment by Up and Down keys
Remote automatic control mode: analogue signal, current signal(0/4-20mA)
Stroke frequency (spm) can be set proportionally controlled within 4-20mA and adjusted in direct and inverse proportions;analogue signals are directly connected onto the dosing pump without extra control instrument.
Current working frequency is digitally displayed.
Equipped with a liquid have level switch interface.
Pump head, made of high modified material, full chemical compatibility: As verified in practice, the internal structure of pump head effectively avoids flash gas and cavtation inside pump head, meanwhile, optimizes the procedure of qiquid flow, and drops the ultra-large shear force on liquid to maintain conveying capacity and improve the overall efficiency of pump.
We offer the one year warranty.
As the pumps have experienced for a long-term operation, we are condfident of offering the best quality.
We also provide the easily damaged parts of pump in case of need.
Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Packing Details :
1 pieces per case (26cm*15cm*26cm)
2 pieces per case (35cm*29cm*26cm)
4 pieces per case (65cm*28cm*28cm)
6 pieces per case (54cm*29cm*48cm)
We have 3 types of packing (paper skin): 1. one case with 1 pump: 255*145*260/mm 2. one case with 2 pumps: 350m*290m*260m 3. one case with 4 pumps: 650m*280m*280m 4. one case with 6 pumps: 540m*290m*480m
If the quality is very large, we'd better choose the fourth case. It's avaliable to delivery by air or by sea.
Delivery Details : 2-5 days
Single solenoid pump
motor pump and more pumps package
multiple transportation
