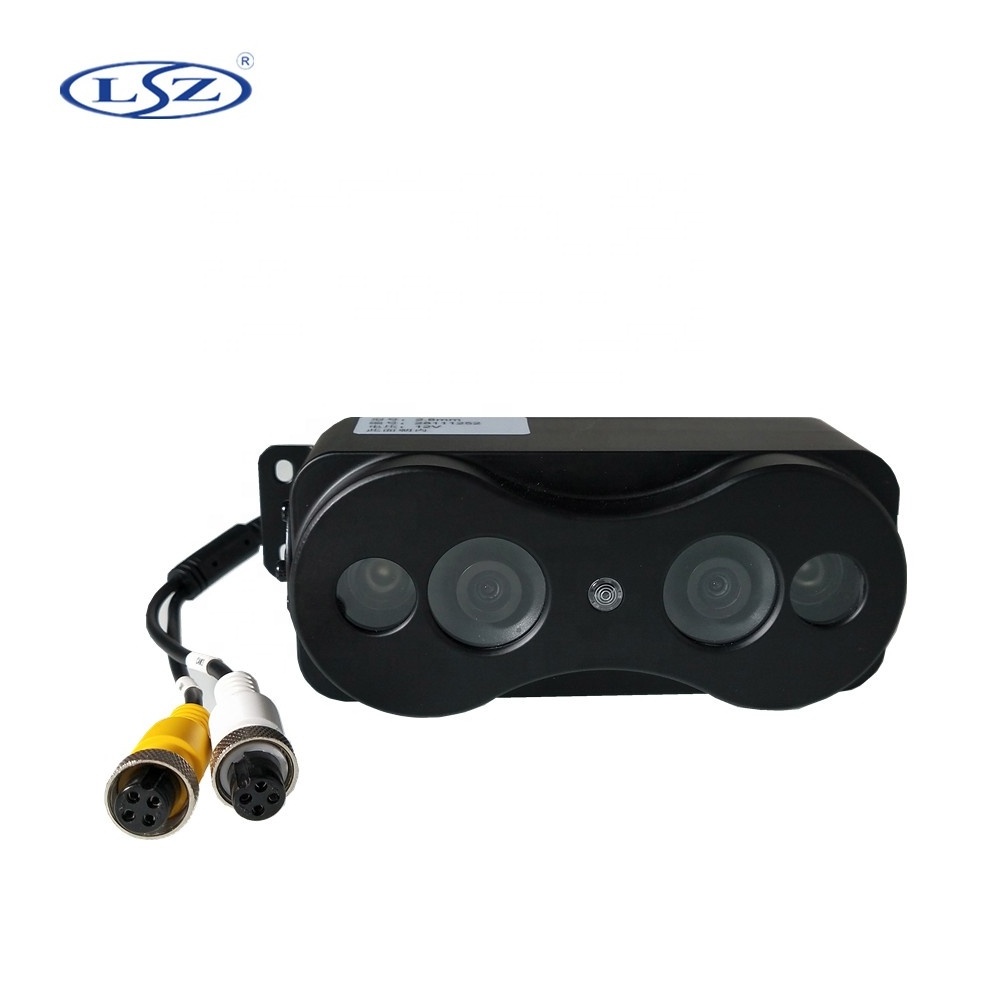

Car People Counting Camera Automatic Counter Bus Passenger Counting Traffic People Counter
Car People Counting Camera Automatic Counter Bus Passenger Counting Traffic People Counter
Car People Counting Camera Automatic Counter Bus Passenger Counting Traffic People Counter
Car People Counting Camera Automatic Counter Bus Passenger Counting Traffic People Counter
Car People Counting Camera Automatic Counter Bus Passenger Counting Traffic People Counter
Car People Counting Camera Automatic Counter Bus Passenger Counting Traffic People Counter
Car People Counting Camera Automatic Counter Bus Passenger Counting Traffic People Counter
Car People Counting Camera Automatic Counter Bus Passenger Counting Traffic People Counter

Car People Counting Camera Automatic Counter Bus Passenger Counting Traffic People Counter

FOB Reference Price: Get Latest Price
≥5 Pieces
US $160
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Product name:
Passenger Counter
Application:
Bus
Power supply:
12V
Night Vision:
Yes
Data transmission:
RS232 / RS485
Accuracy Rate:
95%
Weight:
1KG

Quick Details

Brand Name:
LSZ
Place of Origin:
Guangdong, China
Model Number:
LSZ-PC01-D1
Product name:
Passenger Counter
Application:
Bus
Power supply:
12V
Night Vision:
Yes
Data transmission:
RS232 / RS485
Accuracy Rate:
95%
Weight:
1KG
Products Description
Operating System
Language
English, Chinese or Customized language.
Interface
C/S operation configuration mode
Password security
User password, administrator password management
accuracy
About95%
Power input
+9~+36V
9V~36V,Please ensure that power supply is within this range before use
Power output
12V
12V(+/-0.2V),Maximum current:2A
Video
Video input
4 channel video input, support CIF/D1/960H/720P AHD video input
Video output
1 channel video output
Video display
1~4 screen display
Video standard
PAL、NTSC
Alarm
Alarm input
4 alarm inputs ,can be configured for low level alarm below 1V or high level alarm above 5V
Storage
SD
support 128G SD Card
Memory
512M
Communication interface
RS485 Port
support 1 RS485 Port
RS232 Port
Support 1 RS232 Port
RJ45
1 RJ45 Port,Can be used for testing, backing up passenger data (in TXT and EXCEL formats), setting parameters, etc
wireless communication
4G
Built in 4G Module(FDD-LTE/TDD-LTE option)
WIFI
Can built-in wifi module
Working Temperature
-35℃~70℃
In a well-ventilated environment
Storage temperature
-40~85℃
In a well-ventilated environment
Fault indicator
Provide indicator lights for easy maintenance, including: power indicator, operation indicator, storage indicator, communication
indicator, positioning indicator, etc
Installation height
1.9~2.6m
Count highly
0.5~2.4m(can set)
Environment illumination
0.001lux(Dark enviroment)~100klux(outdoor sunlight),no need to fill the light, and the accuracy is not affected by the
environmental illumination.
Position
Support GPS, BD dual module, GPS coordinates, GPS speed can be written into the code stream, and can be uploaded wirelessly
(optional)
fireproofing requirement
The sensor is made of non-combustible material such as metal shell
Passenger Counter can be used for buses, subways, trains, ships, shopping malls, and building passages, etc. Through capture video images and analyze the height, shape and direction of allobjects passing through the image, so as to accurately judge the number of people and direction of entry and exit, and generate an entry and exit record.

Integrated independent digital I/O port can be connected to other devices or the devices for opening and closing the door.The number of entries in and out can be transmitted in real time via RS485, RS232, wired network and 4G network.
