Original Design 1st of the World

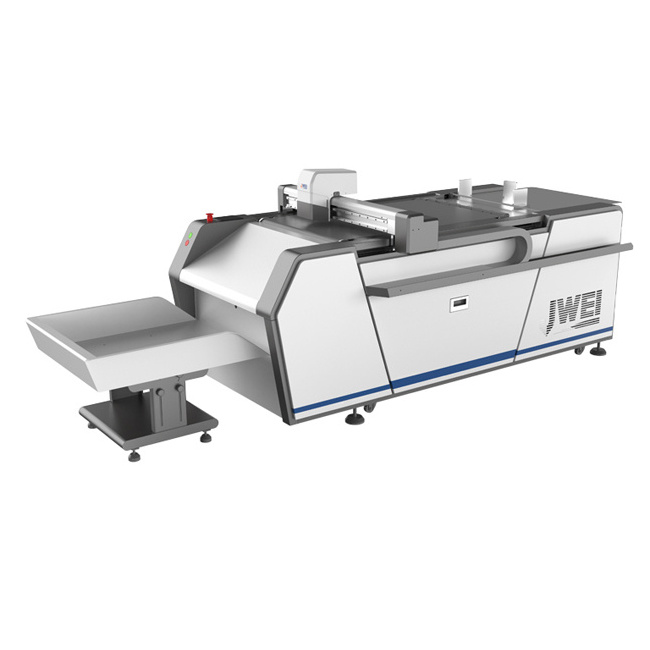

Integrated with cutting tool, creasing wheel tool, plotting pen and CCD registration system, JWEI LST03 series digitally cut labels of any shape, folding cartons of any structure directly from your original designs.
No cutting dies
Just send your designed files exported from Adobe Illustrator or CorelDRAW in the form of DXF, PLT, XML or CF2 to JWEI controller for processing, requiring no physical dies, saving cost and time for making dies. Kick the finishing jobs off by simply clicking the “Print” button.
Versatile fast sheet fed production
Designed for short-run on-demand production, LST03 series are highly automated by QR code recognition function for auto retrieving cutting file. Only 15-70 seconds to finish a A3-B2 sheet (depends on complexity of shapes).
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ZOMAGTC
-
Model Number:
-
ZM-LST0806
-
Voltage:
-
220V 50HZ 1P
-
Cutting Speed:
-
1200mm/s
-
Repeat Cutting:
-
Yes
-
Size:
-
3200*1100*1100mm
-
Product name:
-
LST0806 Hot Sale Automatic Graphtec Cutting Plotter Machine Price
-
Effective working area:
-
800*600mm
-
Cutting speed:
-
1200mm/s
-
Repeat precIsion:
-
±0.1mm
-
Interface:
-
Ethernet port
-
Connect:
-
Lan
-
File Form:
-
PLT, DXF,XML,CF2
-
Auto Sheet Capacity:
-
<100mm
-
Feeding System:
-
Vacuum feed with clamps mounted on gantry
-
Warranty:
-
1 Year
Quick Details
-
Paper Feed Width:
-
800mm
-
Cutting Width:
-
800mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZOMAGTC
-
Model Number:
-
ZM-LST0806
-
Voltage:
-
220V 50HZ 1P
-
Cutting Speed:
-
1200mm/s
-
Repeat Cutting:
-
Yes
-
Size:
-
3200*1100*1100mm
-
Product name:
-
LST0806 Hot Sale Automatic Graphtec Cutting Plotter Machine Price
-
Effective working area:
-
800*600mm
-
Cutting speed:
-
1200mm/s
-
Repeat precIsion:
-
±0.1mm
-
Interface:
-
Ethernet port
-
Connect:
-
Lan
-
File Form:
-
PLT, DXF,XML,CF2
-
Auto Sheet Capacity:
-
<100mm
-
Feeding System:
-
Vacuum feed with clamps mounted on gantry
-
Warranty:
-
1 Year
Product Description
LST0806 Hot Sale Automatic Graphtec Cutting Plotter Machine Price
Machine Features
|
Auto Feeder
|
|
|
|
Auto Sheet Capacity
|
<100mm
|
|
|
Feeding System
|
Vacuum feed with clamps mounted on gantry
|
|
|
Max Sheet Size
|
800*600mm
|
|
|
Min Sheet Size
|
210*297mm
|
|
|
Standard Tools
|
CCD camera, electric Oscillating tool,full-cut tool, half-cut tool, creasing wheel
|
|
|
Optional
|
Bevel cutting tool, creasing wheel tool for corrugated board
|
|
|
Cutting Sysrem
|
|
|
|
Productivity
|
15 sec-45 seconds per SRA3 sheet(average 24s-depending upon complexity) 70 sec/B2 sheet(Varies depends on complexity of material)
|
|
|
Max Cutting Speed
|
1200mm/s
|
|
|
Cutting Thickness
|
<=6mm
|
|
|
Repeat accuracy
|
0.1mm
|
|
|
Software and Connection
|
|
|
|
File Form
|
PLT, DXF,XML,CF2
|
|
|
Interface
|
Ethernet Port
|
|
|
Connect
|
Lan
|
|
|
Green Credentials
|
|
|
|
Voltage
|
220V 50HZ 1P
|
|
|
Power
|
4KW
|
|
|
Size
|
3200*1100*1100mm
|
|
|
Weight
|
380KG
|
|
Roll To Sheet Device (Optional)
