Quick Details
-
Formaldehyde Emission Standards:
-
E0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGH
-
Model Number:
-
F17 formwork LVL Beam
-
Product name:
-
F17 Formwork LVL Beam
-
Thickness:
-
10-100mm
-
Width:
-
90-1220mm
-
Length:
-
50-12000mm
-
Glue:
-
A Bond E0/ WBP Phenolic
-
Edge:
-
Squared or chamfered and with/without painted
-
Surface paint color:
-
Blue/Orange/Red/Yellow etc.
-
Elastic Modulus:
-
E14/E13/E12/E10/E8 etc.
-
Painting color:
-
Yellow/Blue/Red etc.
-
Logo on LVL surface:
-
As customized
Quick Details
-
Warranty:
-
5 years
-
Project Solution Capability:
-
total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building
-
Formaldehyde Emission Standards:
-
E0
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGH
-
Model Number:
-
F17 formwork LVL Beam
-
Product name:
-
F17 Formwork LVL Beam
-
Thickness:
-
10-100mm
-
Width:
-
90-1220mm
-
Length:
-
50-12000mm
-
Glue:
-
A Bond E0/ WBP Phenolic
-
Edge:
-
Squared or chamfered and with/without painted
-
Surface paint color:
-
Blue/Orange/Red/Yellow etc.
-
Elastic Modulus:
-
E14/E13/E12/E10/E8 etc.
-
Painting color:
-
Yellow/Blue/Red etc.
-
Logo on LVL surface:
-
As customized
Product Description

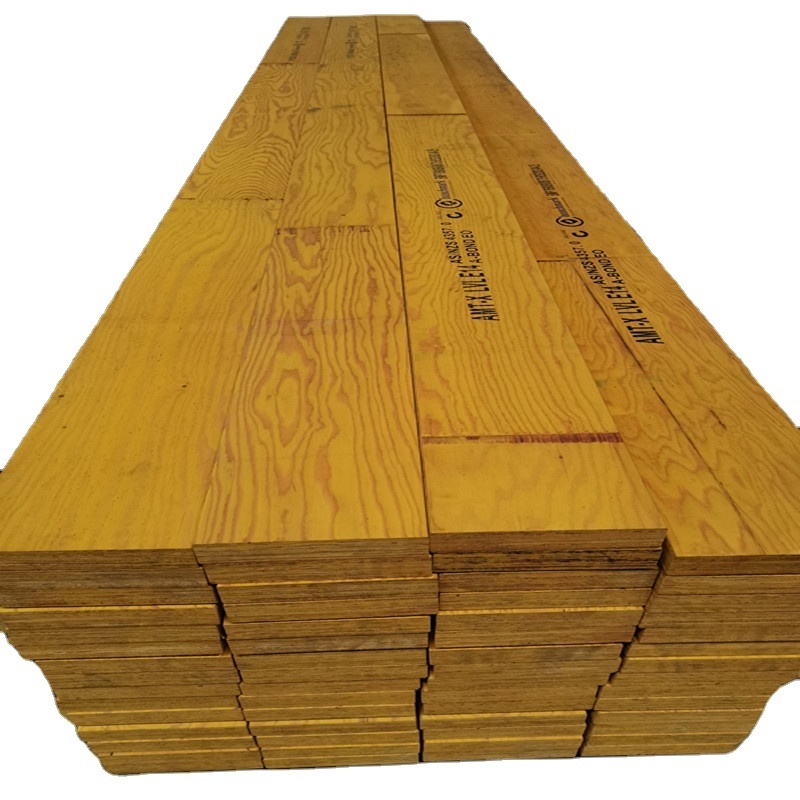

Australia AS/NZS4357.0:2005 F17 Structural Formwork LVL Beams
A Bond E0 90X45 E14 E13 H2S H2 H3
Structural laminated veneer lumber (LVL) which has been manufactured in accordance with AS/NZS 4357 with properties determined in accordance with AS/NZS 4063.2 and therefore complies with the requirements for structural design in accordance with AS1720.1
Structural LVL is manufactured using an 'A' Bond with less than 0.5mg/l Formaldehyde (equivalent to E0) emissions from the final product.
A full range of LVL sizes from 95 x 45mm right up to 220 x 75mm. Meets AS/NZS 4357 (Structural LVL)
Produced in industry-standard sizes
Painted 'safety yellow/ red/ blue' for easy identification
Can be used as for concrete formwork support structures such as joists, bearers, walers and soldiers
Also suitable for edge boards in concrete formwork framing projects and boxing for residential slabs.
A full range of LVL sizes from 95 x 45mm right up to 220 x 75mm. Meets AS/NZS 4357 (Structural LVL)
Produced in industry-standard sizes
Painted 'safety yellow/ red/ blue' for easy identification
Can be used as for concrete formwork support structures such as joists, bearers, walers and soldiers
Also suitable for edge boards in concrete formwork framing projects and boxing for residential slabs.
Specification
|
Product
|
Formwork LVL Beam
|
|
Length
|
From 50mm to 6000mm(0.5m to 6m)
|
|
Width
|
90mm/95mm/120mm/145mm/195mm/220mm/300mm
|
|
Thickness
|
35mm,45mm,63mm,65mm, 77mm, 80mm ETC
|
|
F&B
|
Spruce,Poplar,Radiate Pine,Larch,Eucalyptus etc (Both sides sanding well)
|
|
Core
|
Spruce, Poplar,Radiate Pine,Larch,Eucalyptus etc
|
|
Glue
|
A bond E0 / WBP Phenolic
|
|
Elastic Modulus
|
E14/E13/E12/E10/E8 etc.
|
|
Edges
|
Four edges are squared or chamfered and with/without painted
|
|
Joint way
|
Overlap Joint, End Joint, Scarf Joint, Finger Joint
|
|
Moisture
|
8-13%
|
|
Application
|
Construction building
|
|
Min order quantity
|
1*40HQ
|
|
Advantage
|
Ideal materials to replace solid wood with cheaper price
|
|
Certificate
|
FSC,ISO9001:2000,CARB,CE,OSHA,BSI-AS/NZS4357
|
Product Details
1. Different waterproof colors are painted on Surface:yellow, red, blue etc.
2. Different width,thickness,length are available. Accept customized. The maixmum length is 12m .
3. Structural LVL is manufactured using an 'A' Bond with less than 0.5mg/l Formaldehyde (equivalent to E0) emissions from the final product.
4.
Customer logo can be designed and printed on LVL surface
5. Other treatment: H2S/ H2/ H3; Chamfered; Fumigation
Packing & Delivery
Pallet packing: Inner packing:0.2mm thickness plastic bag
Outer packing:pallet stripped with steel tape
Shipment:20GP / 40GP / 40HQ
Outer packing:pallet stripped with steel tape
Shipment:20GP / 40GP / 40HQ
Application
LVL is suited to structural applications such as beams, rafters and columns in a wide range of buildings including houses, commercial,industrial and rural structures. Some special LVL has a small number of veneers laid perpendicularly (cross banded).
