Unique Double Girder Motor Driven Gantry Crane 25 Ton

Double Girder Motor Driven Gantry Crane 25 Ton

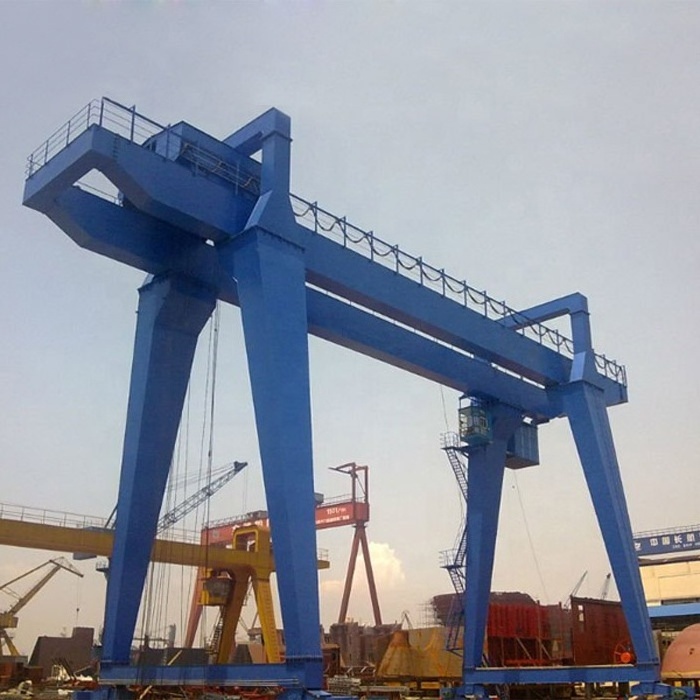

Double Girder Motor Driven Gantry Crane 25 Ton is applied outside warehouse or railway sideways to do common lifting and unloading works, this kind of crane is composed of bridge, support legs, crane traveling organ, trolley, electric equipment, strong lifting winch, the frame adopts box-type welding mechanism, crane traveling mechanisms are operated in the driver cabin or remote control, Power is supplied by cable or slide wire, there are different capacity double beams gantry crane for your choice according to your different use.

Electrical and Control Equipment
The crane that we are offering is designed to meet the required functions and requirement stated in your specifications, as well as for the operating conditions.

The sub-assemblies used by are standardized equipment of renowned manufactures and have been approved for specific crane operation by our test laboratory. Their characteristics regarding impact/vibrations, wear and safety were examined. A continuous high quality standard is ensured by series production and standardized sub-assemblies.

The electrical equipment is accommodated in robust steel plate control cubicles, on the crane girder.

All movements can be switched off by actuating the emergency-off switch at the control station via a main contactor.

The entire equipment is easy to install and dismantle due to the use of threaded bolts and top-hat rails

Witn SHENGHUA Double Girder Motor Driven Gantry Crane 25 Ton , the container terminal operator can reduce the number of container handling machine types and interfaces, since horizontal transport and stacking are done by one machine type.
1 )Latest drive technologies, variable motor speeds and integrated power management reduce operating costs and increase eco-efficiency
2) Excellent handling, acceleration, speed
3) Innovative driver assistance features: safer operation, fatigue reduction
4 )Reduced maintenance thanks to direct drive units, high-quality components

1)14 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
2)2 years spare-parts provided for better maintenance.
3) Professional technical staffs provide installation, commissioning and training services. The installation team can be sent to local site to install for customer.
4) Delivery with English user manual, parts manual, product certification and other relevant certificates.
5) Technical advisory for any time.
6)Test before shipment

1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;
2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.

Delivery:

1. If the size of whole crane are suitable for container ship, usually by container;

2. If the size is too big, usually by bulk ship or by container after truncation;

3. Transport ways are based on reducing cost for you and keep the crane performance!

1. What's the information should I provide when inquiry?

a: Lift capacity  b: Lift height  c: Span  d: Power source f:Working environment.

More details, more better. If you have the drawing will be very better.

2. Operating methods for selection?
A: Pendent controller with push buttons.B: Remote control with push buttons
C: Cabin control with joystick.

3. Can you provide the serious lifting tools?
Sure, we can provide any tools other specials you need, please tell us it when enquiry.

4. How to  install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.

5. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Buffer, Overhaul cage, Rail clear plate, Protective cover, Bus bar preventer plate, Anticollision device, Main isolating switch, Emergency stop system, Motor overload protection, and so on.
