Quick Details
-
Model Number:
-
Y2 series
-
Frequency:
-
50HZ or 60HZ
-
Product:
-
small rotating motor
-
Color:
-
Can be customized
-
Insulation class:
-
B.F
-
Frame NO.:
-
63~355
-
Operation service:
-
S1
-
EFF:
-
EF3 EF2 EF1
-
Power:
-
0.12~315kw
-
Rated Voltage:
-
+/-5%
-
Protection class:
-
IP55
-
Ambient Temperrture:
-
-15℃~40℃
Quick Details
-
AC Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TIANYUAN
-
Model Number:
-
Y2 series
-
Frequency:
-
50HZ or 60HZ
-
Product:
-
small rotating motor
-
Color:
-
Can be customized
-
Insulation class:
-
B.F
-
Frame NO.:
-
63~355
-
Operation service:
-
S1
-
EFF:
-
EF3 EF2 EF1
-
Power:
-
0.12~315kw
-
Rated Voltage:
-
+/-5%
-
Protection class:
-
IP55
-
Ambient Temperrture:
-
-15℃~40℃

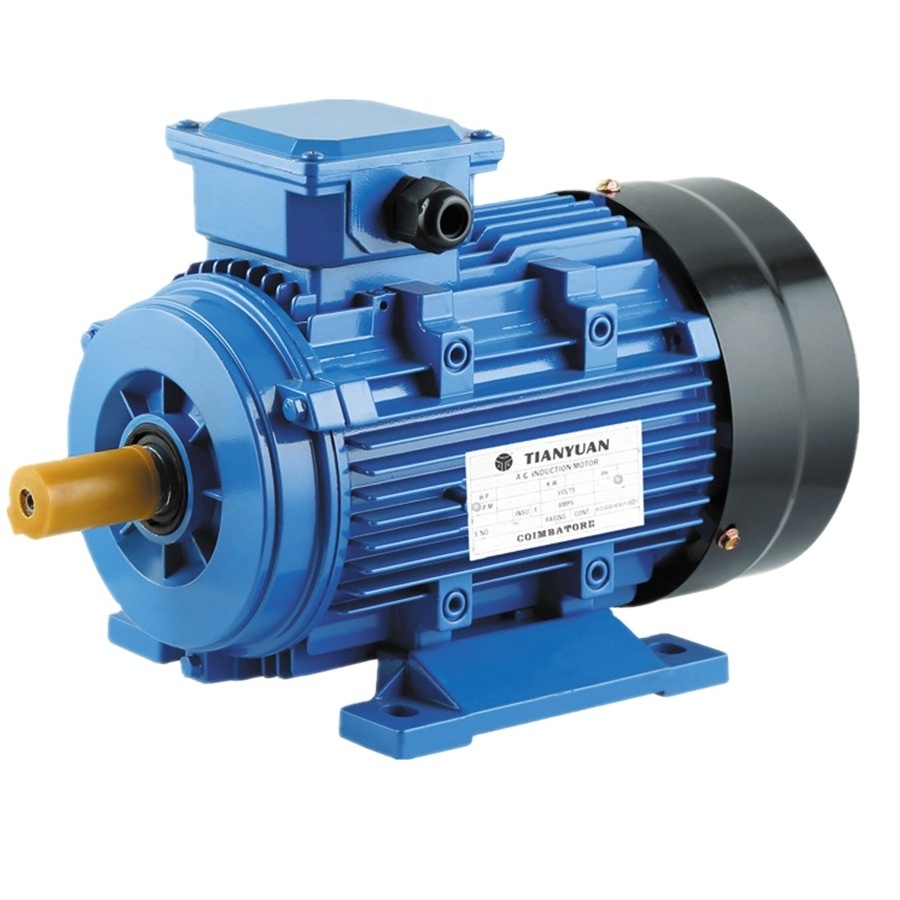

Y2 series small rotating motor
|
1.Features
|
1. TEFC cage
2.High efficiency
3.Low nosie
4.Easy maintenance
|
2.
Application
|
Y2 series small rotating motor are suitable for industrial machine,like
1.water pump
2.big fan
3.food machines
4.gear motor
5.compresssors
| 3.Working Conditions |
- Ambient temperature:-15C~40C
- Altitude:no higher than 1000meters from sea level
- Voltage:380+/-5% or 110V
- Frequency:50HZ or 60HZ
- Insulation class :B.F
- Coolong type:IC411
-
Duty type:S1.
| 4.Main technical parameters |
|
Series Name: |
Y2 series three phase induction motor |
|
Certificate: |
CE,ISO9001 |
|
Phase: |
Three Phase |
|
Type: |
Induction Motor |
|
Structure: |
Asynchronous Motor |
|
Housing |
Aluminium/Cast iron |
|
Rotor |
45# Steel |
|
Voltage: |
380V or on request |
|
Rate Frequency |
50HZ/60HZ |
|
Current |
0.5 - 556.2 A |
|
Standard: |
IE2 |
|
Output Power: |
0.1 2 KW- 315 KW |
|
Wire: |
100% copper |
|
Poles: |
2P, 4P, 6P, 8P |
|
Duty: |
Continous S1 |
|
Protect Feature: |
Totally Enclosed |
|
Insulation Class: |
B. F |
|
Protection Class: |
IP 55 |
|
Speed |
700 - 2800 r/min or on request |
|
Ambient Temperature |
-15°C-40°C |
|
IM: |
B3,B5,B35,B14,B34 |
|
Standard: |
Confirm to IEC international standard |
|
Delivery Time: |
30-60 Days |
|
Package |
Packed with export requirement protect the motors and convenient for transport. |
| 5.Model Form |
| 6.Three Phase Motor Dimensions(mm) |
